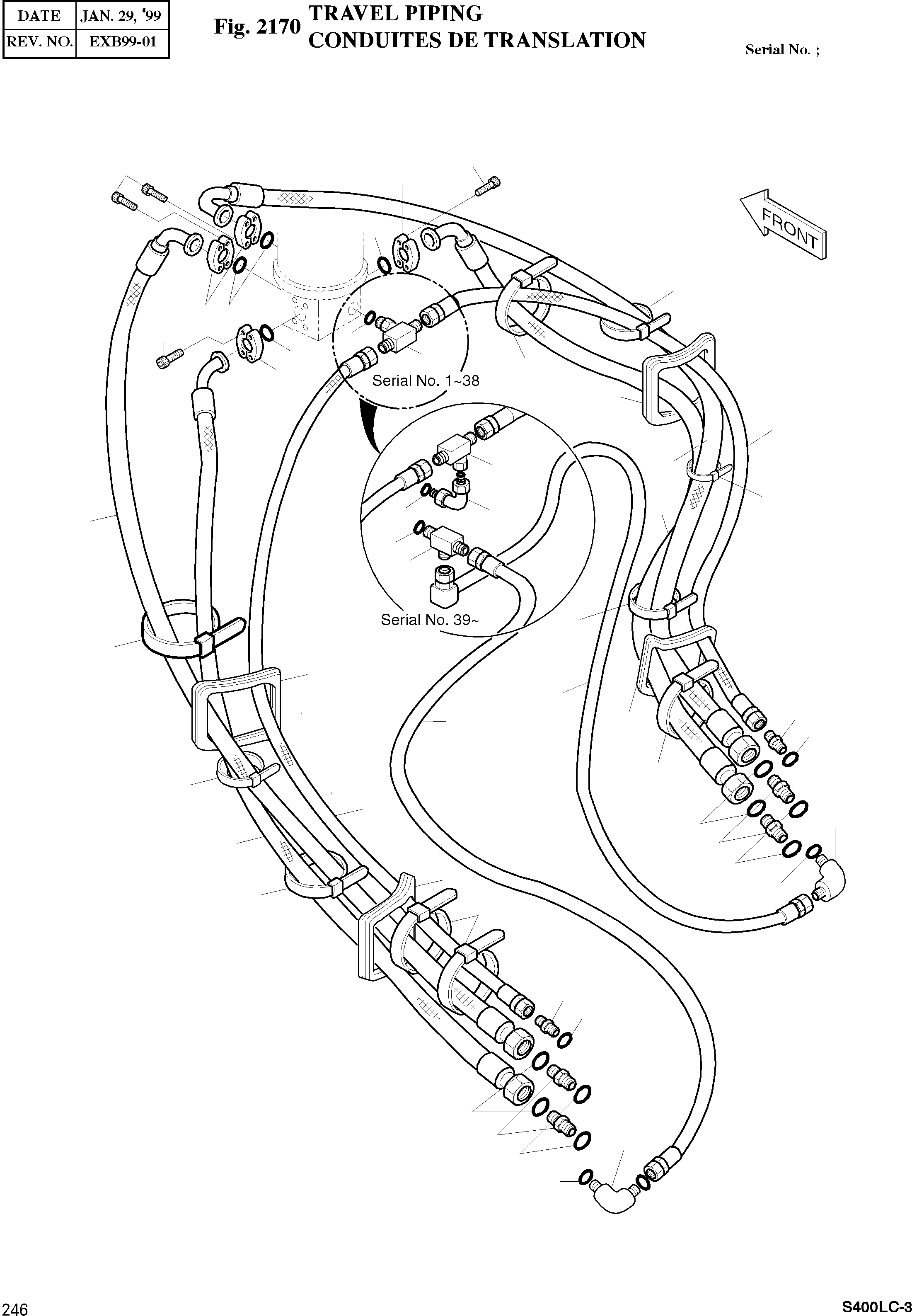

Запчасти Doosan Daewoo TRAVEL PIPING TRACK PARTS

-

2400-4192

PROPELLING PIPING

desc: CONDUITES DE TRANSLATION

-2шт.

1

2181-4133D6

ADAPTER PFO1-UNF1 7/16-12

desc: RACCORD ADAPTATEUR

4шт.

2

S8000291

O-RING P29

REP_PNO: 8202-023

4шт.

3

2181-1126D6

ADAPTER PFO1/2-PF1/2

desc: RACCORD ADAPTATEUR

2шт.

4

S8000181

O-RING P18

REP_PNO: 8202-014

2шт.

5

S8030161

O-RING F16

desc: JOINT TORIQUE

4шт.

6

2181-1951D7

TEE PF3/8(O)XPF1/4XPF1/4

SERIAL: 39

1шт.

7

S8000141

O-RING P14

SERIAL: 39

1шт.

8

2184-1051D5

HOSE

SERIAL: 39

2шт.

9

2181-1702D4

ELBOW PFO1/4-PF1/4

SERIAL: 39

2шт.

10

S8000111

O-RING P11

SERIAL: 39

2шт.

11

2184-1054D53

HOSE PF1/2-2600L

desc: TUYAU FLEXIBLE

2шт.

12

2181-9081

FLANGE;SPLIT

desc: FLASQUE EN DEUX PARTIES

8шт.

13

2180-1026D19

O-RING SAE 1"

desc: JOINT TORIQUE

4шт.

14

S2215461

BOLT;SOCKET M12X1.75X40

desc: BOULON A 6 PANS CREUX

16шт.

17

2181-1702D42

ELBOW PFO3/4-PF1/2

SERIAL: 39

1шт.

18

2181-2281D5

TEE PFO3/4-PF1/2-PF1/2

SERIAL: 1-38

1шт.

18

2181-4124

TEE

SERIAL: 39

1шт.

19

S8000241

O-RING P24

desc: JOINT TORIQUE

1шт.

21

2184-1200D13

HOSE 39.62-39.75-2700L

desc: TUYAU FLEXIBLE

2шт.

22

2184-1222D5

HOSE 1 7/16"-12UN-2B-2500L

desc: TUYAU FLEXIBLE

2шт.

23

2124-1084D1

CLIP;BAND

desc: CLIP

10шт.

24

2160-4039

BUSHING;RUBBER

desc: MANCHON CAOUTCHOUC

2шт.

25

2160-4004B

BUSHING;RUBBER

desc: MANCHON CAOUTCHOUC

2шт.
