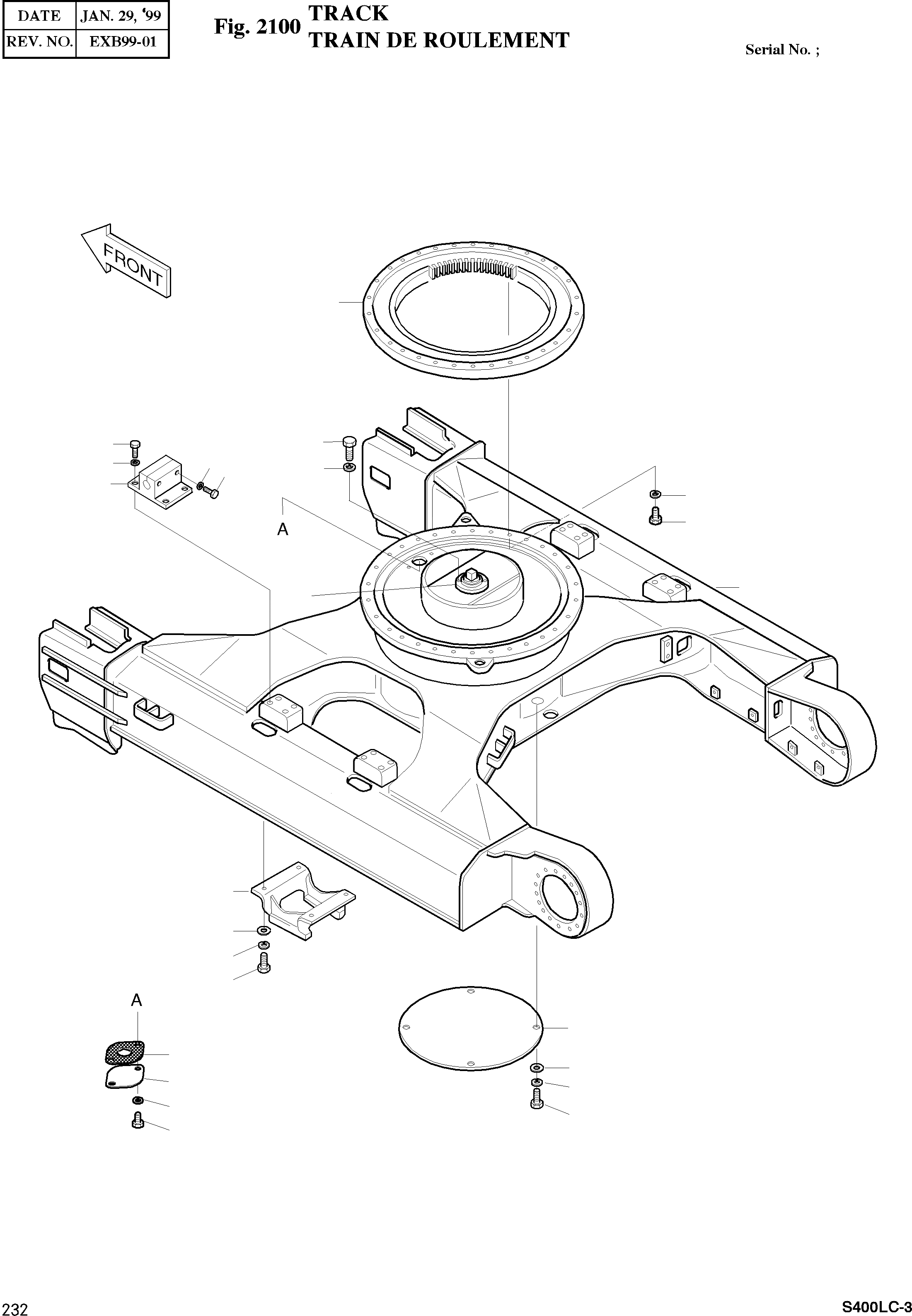

Запчасти Doosan Daewoo TRACK TRACK PARTS

-

2604-4022

UNDER CARRIAGE

desc: TRAIN DE ROULEMENT

-2шт.

1

2604-4019

FRAME;TRACK

desc: CHASSIS A CHAINES

1шт.

2

2480-9011

CENTER JOINT

SERIAL: 1-38

1шт.

2

2480-9405B

CENTER JOINT

SERIAL: 39

1шт.

7

2195-4789

SUPPORT

desc: SUPPORT

4шт.

8

S5102901

WASHER;SPRING M16

desc: RONDELLE ELASTIQUE M16

19шт.

9

S0565151

BOLT M16X2.0X45

desc: BOULON A 6 PANS

16шт.

10

2403-1002

PLATE

desc: PLAQUE

1шт.

11

2180-1017A

PACKING

desc: RONDELLE D'ETANCHEITE

1шт.

12

S0511853

BOLT M10X1.5X20

desc: BOULON A 6 PANS

2шт.

13

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE M10

2шт.

14

S0521251

BOLT M16X2.0X30

desc: BOULON A 6 PANS

3шт.

17

S0515153

BOLT M12X1.75X28

desc: BOULON A 6 PANS

4шт.

18

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE M12

12шт.

19

2109-9047

BEARING;SWING

SERIAL: 1-227

1шт.

19

2109-9047A

BEARING;SWING

SERIAL: 228

1шт.

19A

180-00297D2

SEAL

desc: . JOINT

1шт.

20

S0574961

BOLT M24X3.0X80

desc: BOULON A 6 PANS

40шт.

22

S5103301

WASHER;SPRING M24

desc: RONDELLE ELASTIQUE

40шт.

23

2623-4010A

GUIDE;CHAIN

desc: GUIDE

4шт.

24

S0530761

BOLT M22X2.5X55

desc: BOULON A 6 PANS

16шт.

25

S5011213

WASHER;PLAIN M22

desc: RONDELLE PLATE

16шт.

26

S5103201

WASHER;SPRING M22

desc: RONDELLE ELASTIQUE

16шт.

30

S0561553

BOLT M12X1.75X90

desc: BOULON A 6 PANS

8шт.

31

2621-1704

COVER

desc: COUVERCLE

1шт.

32

2114-1154

WASHER

desc: RONDELLE

4шт.

*

2480-9011K

O-RING KIT;CENTER JOINT

SC: S

1шт.
