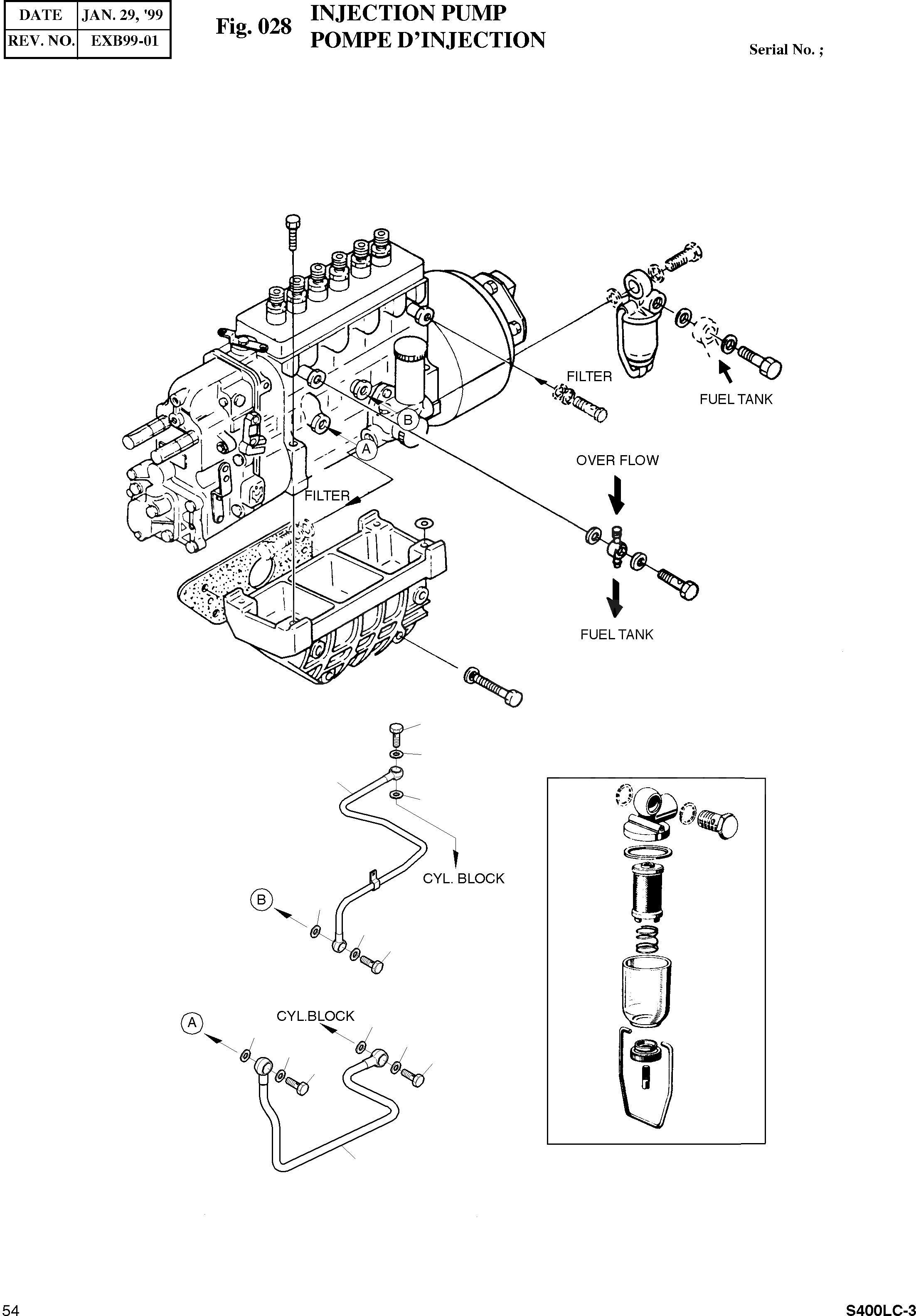

Запчасти Doosan Daewoo INJECTION PUMP ENGINE PARTS

1

65.11101-7245

PUMP;INJECTION

desc: POMPE D'INJECTION

1шт.

2

65.12501-7019

FUEL STRAINER ASS'Y

desc: ENSEMBLE FILTRE A GAZOLE

1шт.

3

06.78140-2404

SCREW;HOLLOW M14X1.5

desc: VIS

1шт.

4

06.56190-0706

RING;SEAL A14X20

desc: BAGUE D'ETANCHEITE

2шт.

5

65.98101-0008

DOUBLE BANJO UNION ASS'Y

desc: ENSEMBLE RACCORD BANJO DOUBLE

1шт.

11

06.11405-0005

SHIM 0.1§®

desc: CALE

1шт.

11

06.11405-0006

SHIM 0.15§®

desc: CALE

1шт.

11

06.11405-0007

SHIM 0.2§®

desc: CALE

1шт.

11

06.11405-0008

SHIM 0.5§®

desc: CALE

1шт.

12

65.11401-0030

BRACKET;FUEL INJECTION PUMP

desc: SUPPORT

1шт.

13

06.01493-4320

BOLT;HEX. M12X1.5X10

desc: BOULON A 6 PANS

2шт.

13

06.01493-4312

BOLT;HEX. M12X1.5X65

desc: BOULON A 6 PANS

2шт.

14

06.16731-2109

WASHER;SPRING A12

desc: RONDELLE ELASTIQUE A12

4шт.

18

06.01923-3228

BOLT;HEX. M10X85

desc: BOULON A 6 PANS

4шт.

19

65.11405-0009

SHIM 0.1§®

desc: CALE

4шт.

19

65.11405-0010

SHIM 0.3§®

desc: CALE

4шт.

19

65.11405-0013

SHIM 0.2§®

desc: CALE

4шт.

20

65.05701-5332

PIPE;OIL(BLOCK-1/P)

desc: CONDUITE

1шт.

21

65.98150-0052

SCREW;HOLLOW

desc: VIS CREUSE

1шт.

22

06.56180-0714

RING;SEAL A10X16

desc: BAGUE

2шт.

23

65.05701-5188

PIPE;OIL(BLOCK-I/P)

desc: TUYAU D'HUILE

1шт.

24

06.78140-2404

SCREW;HOLLOW M14X1.5

desc: VIS CREUSE

2шт.

25

06.56190-0706

RING;SEAL A14X20

desc: BAGUE D'ETANCHEITE

4шт.

26

06.78140-2404

SCREW;HOLLOW M14X1.5

desc: VIS CREUSE A8

1шт.

27

06.56190-0706

RING;SEAL A14X20

desc: BAGUE D'ETANCHEITE

2шт.

28

81.12903-0001

GASKET

desc: JOINT

1шт.

29

81.12104-0003

STRAINER;FILTER

desc: CREPINE DE FILTRATION

1шт.

30

81.12102-0002

BOWL;FILTER(GLASS)

desc: COUPELLE(VERRE)

1шт.
