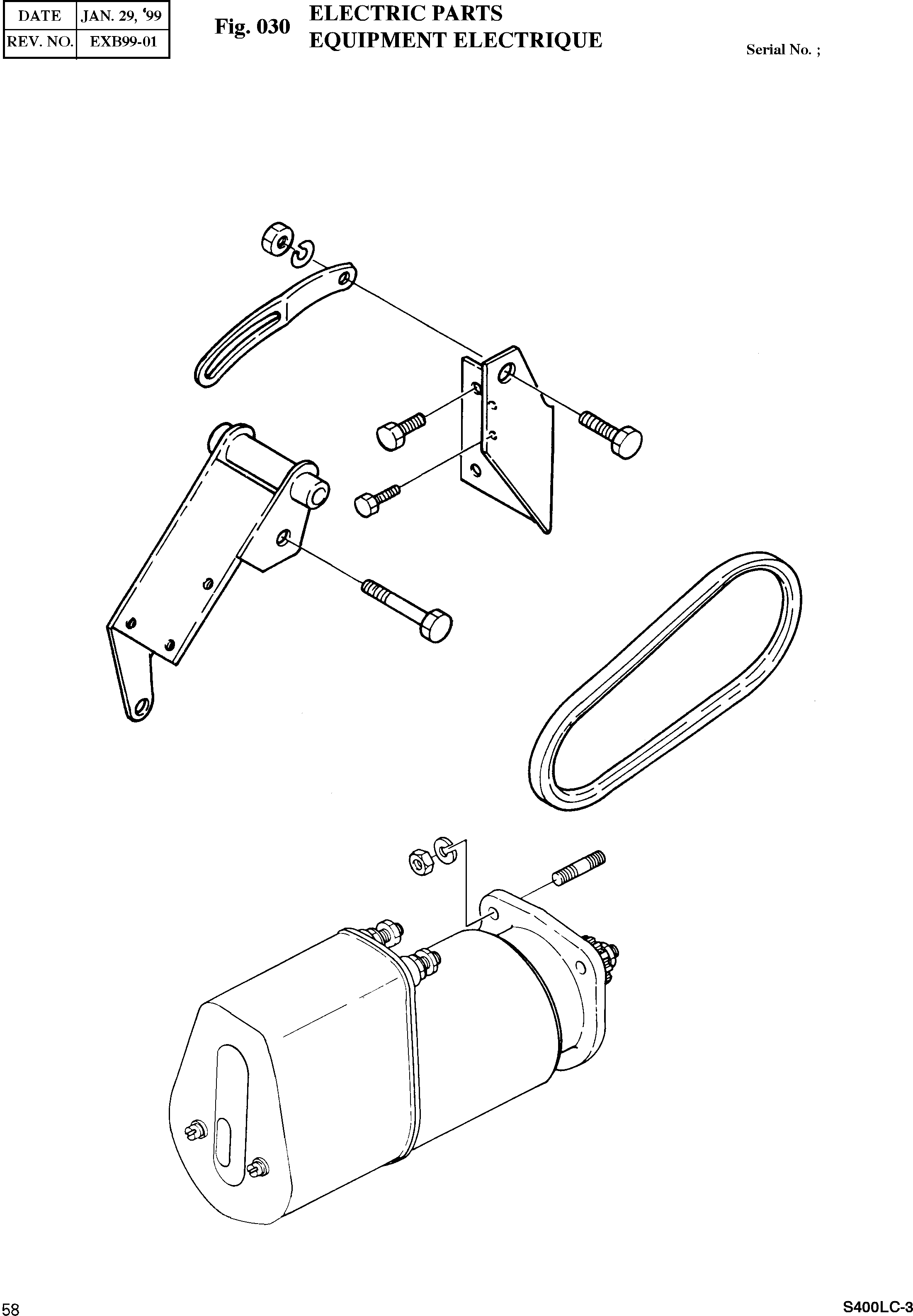

Запчасти Doosan Daewoo ELECTRIC PARTS ENGINE PARTS

2

65.96801-0072

V-BELT 12.5X1000

REP_PNO: 2106-1017D6

1шт.

3

65.19102-5032

BRACKET;GENERATOR MOUNTING

desc: SUPPORT D'ALTERNATEUR

1шт.

5

06.01913-3215

BOLT;HEX. M10X25

desc: BOULON A 6 PANS

2шт.

7

06.01913-3114

BOLT;HEX. M8X22

desc: BOULON A 6 PANS

2шт.

8

65.19103-0066

SUPPORT;ALTERNATOR

desc: SUPPORT D'ALTERNATEUR

1шт.

9

06.01734-4411

BOLT;HEX. M14X1.5X30

desc: BOULON A 6 PANS

1шт.

10

06.16731-2110

WASHER;SPRING A14

desc: RONDELLE ELASTIQUE A14

1шт.

11

06.11063-9217

NUT;HEX. M14X1.5

desc: ECROU 6 PANS

1шт.

12

06.01943-3323

BOLT;HEX. M12X1.5X60

desc: BOULON A 6 PANS

1шт.

14

65.19102-0056

BRACKET

desc: SUPPORT

1шт.

15

65.26201-7058

STARTER 24VX6.6Kw

SERIAL: 500004

1шт.

15

65.26201-7123

STARTER 24VX6.6Kw

SERIAL: 500005

1шт.

16

06.06175-8308

BOLT;STUD M12X30

desc: GOUJON

3шт.

17

06.16731-2109

WASHER;SPRING A12

desc: RONDELLE ELASTIQUE A12

3шт.

18

06.11063-9216

NUT;HEX. M12X1.5

desc: ECROU 6 PANS

3шт.
