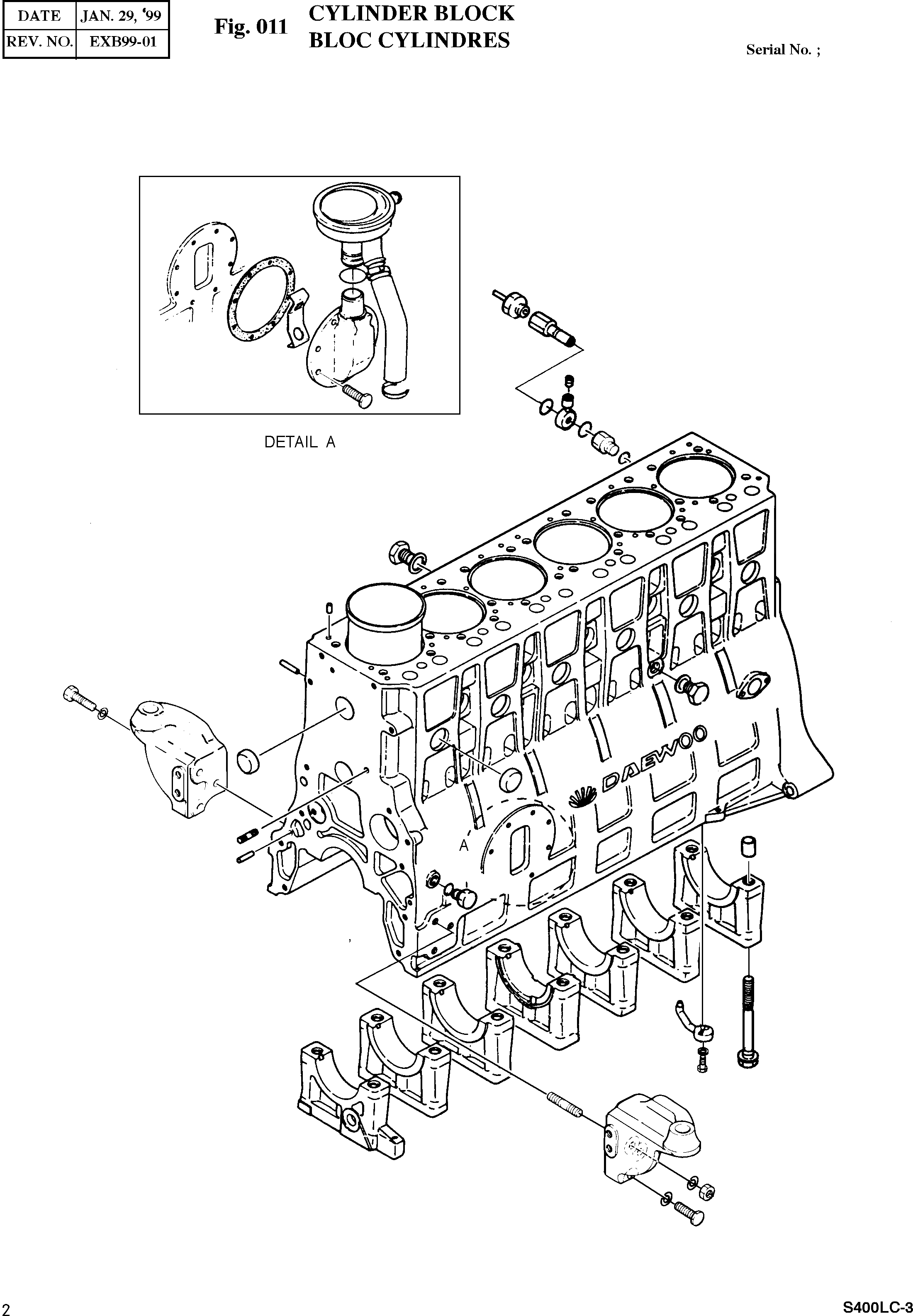

Запчасти Doosan Daewoo CYLINDER BLOCK ENGINE PARTS

31
2
32
30
23
13
33
24
25
12
34
26
21
29
22
46
22
22
17
16
10
11
20
18
40
38
19
1-1
1-8
9
36
6
15
42
41
1
4
4
4
43
45
7
5
44
4
37
4
3
38
39
35
38
40

Артикул

Название

Примечание

Количество

1

65.01101-6036

CYLINDER BLOCK ASS'Y

SERIAL: 500029

1шт.

1

65.01101-6036C

CYLINDER BLOCK ASS'Y

SERIAL: 500030

1шт.

1

65.01101-6067

CYLINDER BLOCK ASS'Y

desc: ENSEMBLE BLOC-CYLINDRES

1шт.

1

65.04410-0016

BUSH;CAM SHAFT

desc: COUSSINET DE PALIER D'ARBRE A CAMES

4шт.

1

06.91606-0041

PLUG;CORE HOLE

desc: BOUCHON DE CHEMISE D'EAU

2шт.

1-1

65.01101-0036A

BLOCK;CYLINDER

desc: . BLOC-CYLINDRES

1шт.

1-1

65.01101-0048

BLOCK;CYLINDER

desc: . BLOC-CYLINDRES

1шт.

1-8

06.15091-0326

PLUG;CORE HOLE

desc: . BOUCHON DE CHEMISE D'EAU

15шт.

2

65.91606-0041

PLUG;CORE HOLE

desc: BOUCHON DE CHEMISE D'EAU

2шт.

3

65.01105-1157

CAP;BEARING(7)

SC: D

1шт.

4

65.01105-1158

CAP;BEARING(1.2.3.5.6)

SC: D

5шт.

5

65.01105-1159

CAP;BEARING(4)

SERIAL: 500029

1шт.

5

65.01105-1159D

CAP;BEARING(4)

SERIAL: 500030

1шт.

6

65.91710-0035

RING;LOCATING

desc: BAGUE DE CENTRAGE

14шт.

7

65.90020-0036

BOLT;BEARING CAP

SERIAL: 500024

14шт.

7

65.90020-0036A

BOLT;BEARING CAP

SERIAL: 500025

14шт.

9

65.90201-0057

BOLT;STUD(TIMING GEAR CASE)

desc: BOULON A 6 PANS

1шт.

10

65.01201-0019

LINER;CYLINDER

SERIAL: 500029

6шт.

10

65.01201-0051

LINER;CYLINDER

SERIAL: 500030

6шт.

11

06.22022-0908

PIN;DOWEL 6M6X12

desc: GOUJON D'AJUSTAGE

4шт.

11

06.22022-0907

PIN;DOWEL 6M6X10

desc: GOUJON D'AJUSTAGE

4шт.

12

65.90320-0022

SCREW;PLUG

desc: BOUCHON FILETE

1шт.

13

65.98150-0002

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

15

06.22022-1009

PIN;DOWEL 8m6X14

desc: GOUJON D'AJUSTAGE

2шт.

16

06.56190-0718

RING;SEAL A22X27

desc: BAGUE D'ETANCHEITE

2шт.

17

06.08092-2407

SCREW;PLUG M22X1.5

desc: BOUCHON A VIS

2шт.

18

06.56190-0704

RING;SEAL A12X18

desc: BAGUE D'ETANCHEITE A16x20

1шт.

19

65.90310-0091

SCREW;PLUG M12X1.5

desc: BOUCHON FILETE AM16x1.5

1шт.

20

06.22022-1113

PIN

desc: GOUJON

2шт.

21

65.98130-0076

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

22

06.56180-0704

RING;SEAL A12X18

desc: BAGUE D'ETANCHEITE A16x20

3шт.

23

06.27441-7007

SWITCH;OIL PRESSURE

desc: MANOCONTACT DE PRESSION D'HUILE

1шт.

24

65.01908-0002

GASKET;BREATHER CASE

SERIAL: 500023

1шт.

24

65.01908-0005

GASKET;BREATHER CASE

SERIAL: 500024

1шт.

25

65.01803-0006

BAFFLE;BREATHER

desc: DEFLECTEUR

1шт.

26

65.01801-0002

CASE;BREATHER

desc: CARTER

1шт.

29

06.01923-3113

BOLT;HEX. M8X20

desc: BOULON A 6 PANS

8шт.

30

65.96501-0032

O-RING 36.09X3.53

desc: JOINT TORIQUE

1шт.

31

65.01801-5023

BREATHER PIPE ASS'Y

desc: ENSEMBLE RENIFLARD

1шт.

32

06.67020-0106

CLAMP;HOSE

desc: COLLIER

1шт.

33

65.96301-0189

HOSE;RUBBER

desc: TUYAU CAOUTCHOUC

1шт.

34

65.97401-0142

CLIP;HOSE

desc: CLIP

1шт.

35

65.41530-0124

BRACKET;MOUNTING(L.H)

desc: SUPPORT

1шт.

36

65.41530-0125

BRACKET;MOUNTING(R.H)

desc: SUPPORT

1шт.

37

65.90201-0063

BOLT;STUD M14X1.5X35

desc: GOUJON

2шт.

38

06.16731-2110

WASHER;SPRING A14

desc: RONDELLE ELASTIQUE A14

10шт.

39

06.11063-9217

NUT;HEX. M14X1.5

desc: ECROU 6 PANS

2шт.

40

06.01494-4410

BOLT;HEX. M14X1.5X55

desc: BOULON A 6 PANS

4шт.

40

06.01494-4409

BOLT;HEX. M14X1.5X50

desc: BOULON A 6 PANS

4шт.

41

06.08092-2406

SCREW;PLUG

desc: BOUCHON FILETE

1шт.

42

06.56190-0713

RING;SEAL A18X24

desc: BAGUE D'ETANCHEITE

1шт.

43

65.01601-6002

NOZZLE;OIL SPRAY

desc: BUSE

6шт.

44

65.90001-0126

BOLT;HEX

desc: BOULON A 6 PANS

12шт.

45

06.16044-0208

WASHER;SPRING

desc: RONDELLE ELASTIQUE

12шт.

46

65.98130-0083

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

Выбрано товаров: 55
