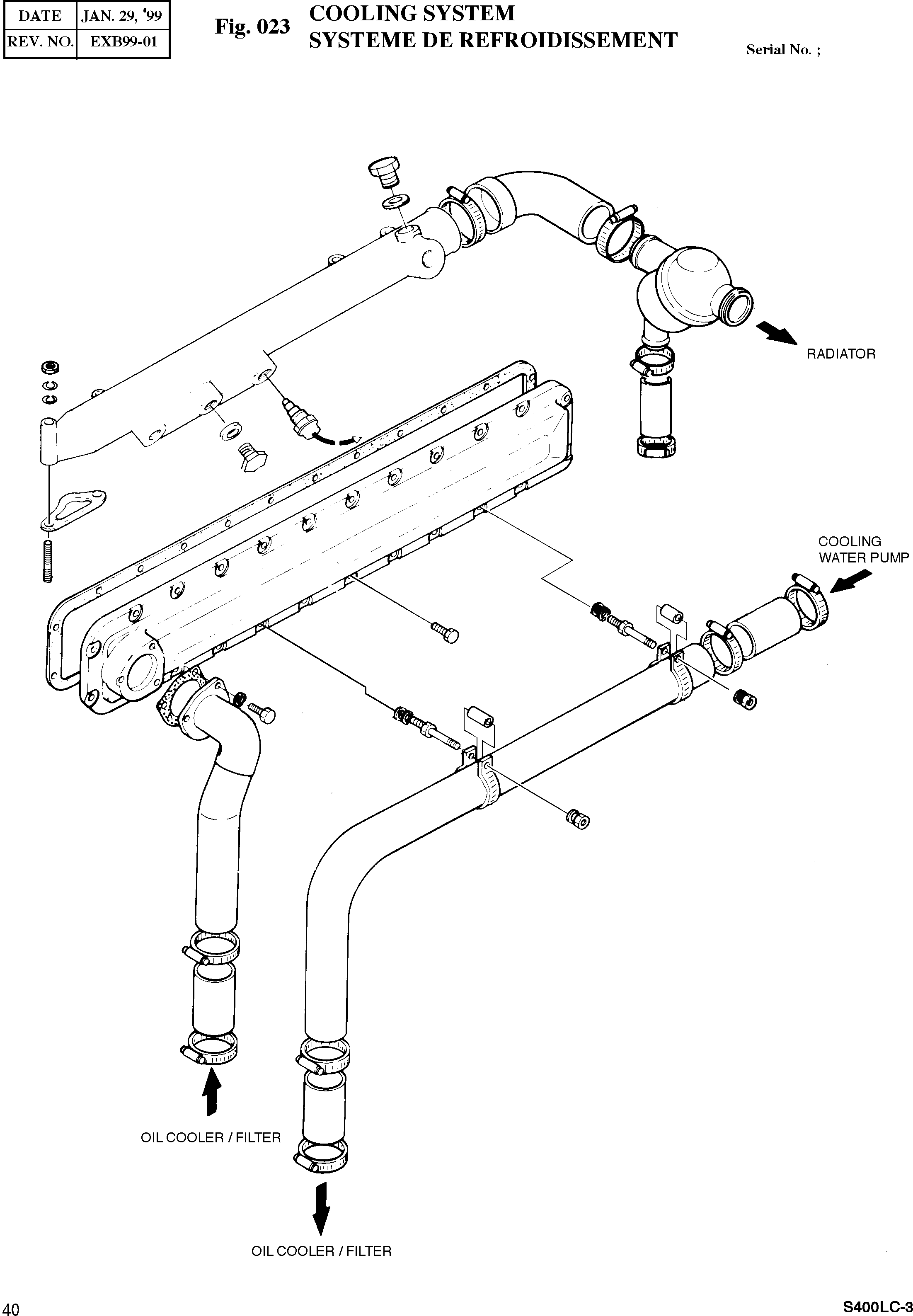

Запчасти Doosan Daewoo COOLING SYSTEM ENGINE PARTS

1

65.01907-0005

GASKET(WATER CHAMBER COVER)

SERIAL: 500019

1шт.

1

65.01907-0008

GASKET(WATER CHAMBER COVER)

SERIAL: 500020

1шт.

2

65.01705-0004

COVER;WATER CHAMBER

desc: COUVERCLE DE CHAMBRE D'EAU

1шт.

3

06.15010-2311

WASHER;PLAIN A8.4

desc: RONDELLE 8.4

2шт.

4

06.16731-2107

WASHER;SPRING A8

desc: RONDELLE ELASTIQUE A8

2шт.

5

06.01923-3115

BOLT;HEX. M8X25

desc: BOULON A 6 PANS

22шт.

6

65.06301-0099

PIPE;COOLING WATER

desc: CONDUITE D'EAU DE REFROIDISSEMENT

1шт.

7

65.06903-0012

GASKET(HEAD WATER PIPE)

SERIAL: 500019

2шт.

7

65.06903-0018

GASKET(HEAD WATER PIPE)

SERIAL: 500020

2шт.

8

06.15010-2311

WASHER;PLAIN A8.4

desc: RONDELLE 8.4

4шт.

9

06.16731-2107

WASHER;SPRING A8

desc: RONDELLE ELASTIQUE A8

4шт.

9

06.11063-8214

NUT;HEX M8

desc: ECROU

4шт.

10

65.90201-0064

BOLT;STUD. M8X60

desc: GOUJON

4шт.

12

66.27435-6007

SWITCH;THERMO 10ЎЙ

desc: INTERRUPTEUR

1шт.

13

06.08092-2405

SCREW;PLUG M16X1.5

desc: BOUCHON FILETE

1шт.

14

06.56190-0709

RING;SEAL

desc: BAGUE D'ETANCHEITE

1шт.

15

65.06401-6019

THERMOSTAT

SERIAL: 500004

1шт.

15

65.06401-6040

THERMOSTAT

SERIAL: 500005

1шт.

16

65.96301-0142

HOSE;RUBBER

desc: TUYAU CAOUTCHOUC

1шт.

18

06.67020-0110

CLAMP;HOSE NWS40

desc: COLLIER

2шт.

19

04.27405-1213

HOSE;RUBBER

desc: TUYAU CAOUTCHOUC

1шт.

20

06.67020-0106

CLAMP;HOSE

desc: COLLIER

2шт.

22

65.06301-0081

PIPE;COOLING WATER(W/P/O/C)

desc: TUYAU D'EAU DE REFROIDISSEMENT

1шт.

23

65.90201-0050

BOLT;STUD

desc: GOUJON

2шт.

24

65.97401-0113

CLAMP;PIPE

desc: ATTACHE DE TUBE

2шт.

25

65.91701-0400

SPACER

desc: BAGUE D'ECARTEMENT

2шт.

26

06.16731-2107

WASHER;SPRING A8

desc: RONDELLE ELASTIQUE A8

2шт.

27

06.11063-8214

NUT;HEX. M8

desc: ECROU 6 PANS

2шт.

28

04.27405-1906

HOSE;RUBBER 50X62X70

desc: TUYAU CAOUTCHOUC

2шт.

29

06.67020-0109

CLAMP;HOSE

desc: COLLIER

4шт.

30

65.06903-0013

GASKET(O/C-W/C COVER)

desc: JOINT

1шт.

31

65.06301-5090

PIPE;COOLING WATER(O/C-BLOCK)

desc: TUYAU D'EAU DE REFROIDISSEMENT

1шт.

32

06.16731-2107

WASHER;SPRING A8

desc: RONDELLE ELASTIQUE A8

3шт.

33

06.01283-7115

BOLT;HEX. M8X25

desc: BOULON A 6 PANS

3шт.

34

04.27405-1906

HOSE;RUBBER 50X62X70

desc: TUYAU CAOUTCHOUC

1шт.

35

06.67020-0109

CLAMP;HOSE NWS30

desc: COLLIER

2шт.

37

06.08092-0204

SCREW;PLUG

desc: BOUCHON FILETE

1шт.

37

65.90310-0135

SCREW;PLUG

desc: BOUCHON FILETE

1шт.

38

06.56190-0706

RING;SEAL A14X20

desc: BAGUE D'ETANCHEITE

1шт.
