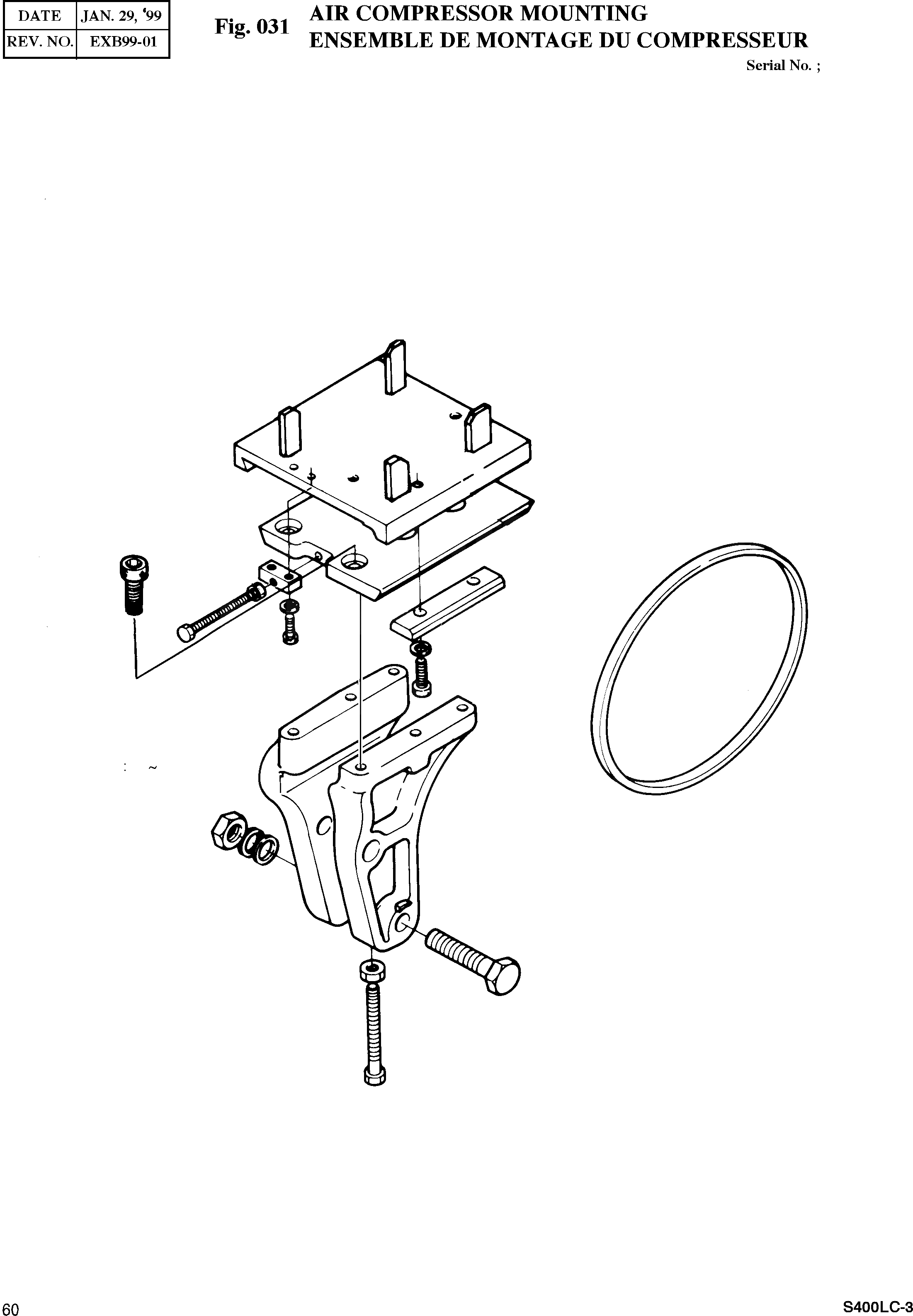

Запчасти Doosan Daewoo AIR COMPRESSOR MOUNTING ENGINE PARTS

9

65.54301-0002

MOUNTING BRACKET ASS'Y(FRONT)

desc: ENSEMBLE SUPPORT DE MONTAGE

1шт.

10

65.54301-0003

MOUNTING BRACKET ASS'Y(REAR)

desc: ENSEMBLE SUPPORT DE MONTAGE

1шт.

11

06.01493-4522

BOLT;HEX. M16X1.5X130

desc: BOULON A 6 PANS

2шт.

12

06.15010-2316

WASHER 17

desc: RONDELLE PLATE 17

2шт.

13

06.16731-2111

WASHER;SPRING A16

desc: RONDELLE ELASTIQUE A16

2шт.

14

06.11063-9218

NUT;HEX. M16X1.5

desc: ECROU 6 PANS

2шт.

15

06.11063-8215

NUT;HEX. M10

desc: ECROU 6 PANS

1шт.

15

06.16731-2108

WASHER;SPRING A10

desc: RONDELLE ELASTIQUE A10

1шт.

16

06.01283-7228

BOLT;HEX. M10X85

desc: BOULON A 6 PANS

1шт.

16

06.01283-7222

BOLT;HEX. M10X55

desc: BOULON A 6 PANS

1шт.

41

65.96801-0059

V-BELT 2X13.0X1600

desc: COURROIE

1шт.

42

65.54300-6007

MOUNTING PLATE ASS'Y

desc: ENSEMBLE PLAQUE DE MONTAGE

1шт.

43

65.54302-5006

PLATE;MOUNTING

desc: PLAQUE

1шт.

45

06.01283-7112

BOLT;HEX. M8X18

desc: BOULON A 6 PANS

6шт.

46

65.54302-0017

PLATE;SLIDING

desc: PLAQUE

1шт.

47

65.54306-0006

PLATE;CLAMPING

desc: PLAQUE

1шт.

48

06.01284-7512

BOLT;HEX. M10X25

desc: BOULON A 6 PANS

2шт.

49

06.16731-2108

WASHER;SPRING A10

desc: RONDELLE ELASTIQUE A10

2шт.

50

65.97480-0148

BRACKET;TENSION

desc: SUPPORT

1шт.

51

06.01283-6916

BOLT;HEX. M6X28

desc: BOULON A 6 PANS

2шт.

52

06.16731-2105

WASHER;SPRING A6

desc: RONDELLE ELASTIQUE A6

2шт.

53

65.90441-0010

BOLT;TENSION

desc: BOULON

1шт.

54

06.11063-8214

NUT;HEX. M8

desc: ECROU 6 PANS

1шт.
