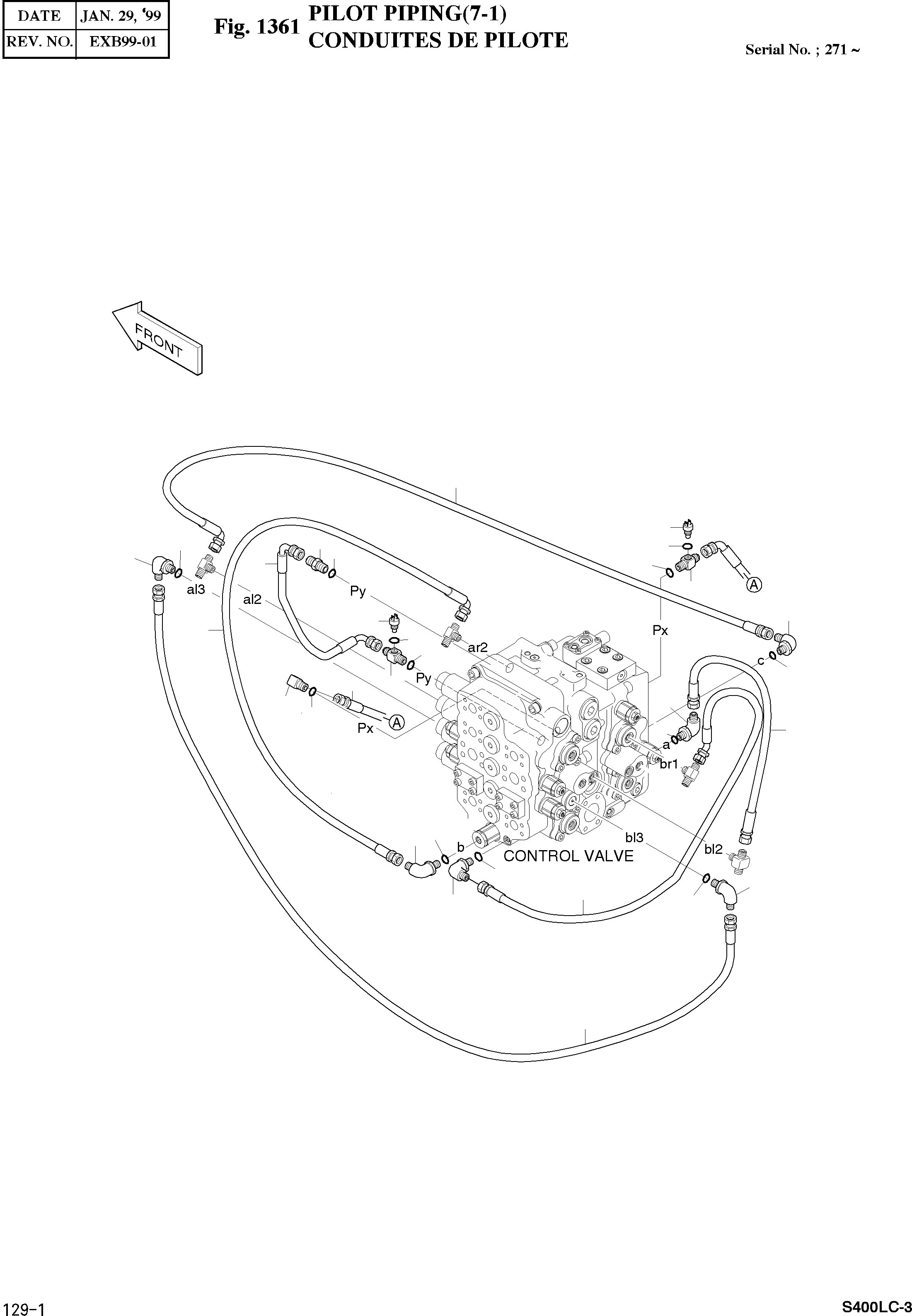

Запчасти Doosan Daewoo PILOT PIPING(7-1) BODY PARTS

-

2400-1887

PILOT PIPING

SERIAL: 271

-2шт.

30

2181-2635

ADAPTER PFO1/4-PF1

desc: RACCORD ADAPTATEUR

2шт.

32

S8000111

O-RING P11

REP_PNO: 8202-009

10шт.

33

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

1шт.

38

S8000141

O-RING P14

REP_PNO: 8202-011

2шт.

39

2181-1126D36

ADAPTER PF3/8(O)XPF1/4

desc: RACCORD ADAPTATEUR

1шт.

41

2549-9112

SWITCH;PRESSURE

desc: MANOSTAT

2шт.

42

2181-1702D4

ELBOW PFO1/4-PF1/4

desc: COUDE

5шт.

46

2181-1702D10

ELBOW PFO3/8-PF1/4

desc: COUDE

2шт.

72

2184-1046D81

HOSE PF1/4-650L

desc: TUYAU FLEXIBLE

1шт.

84

2184-1045D71

HOSE(ST-ST) PF1/4-860

desc: TUYAU FLEXIBLE

1шт.

86

2184-1046D82

HOSE PF1/4-850L

desc: TUYAU FLEXIBLE

1шт.

92

2184-1061D153

HOSE PF1/4-350L

desc: TUYAU FLEXIBLE

1шт.

96

2184-1046D53

HOSE (S-90)PF1/4-730L

desc: TUYAU FLEXIBLE

1шт.

97

2184-1046D142

HOSE PF1/4-900L

desc: TUYAU FLEXIBLE

1шт.

117

2184-1045D128

HOSE PF1/4-1080L

desc: TUYAU FLEXIBLE

1шт.
