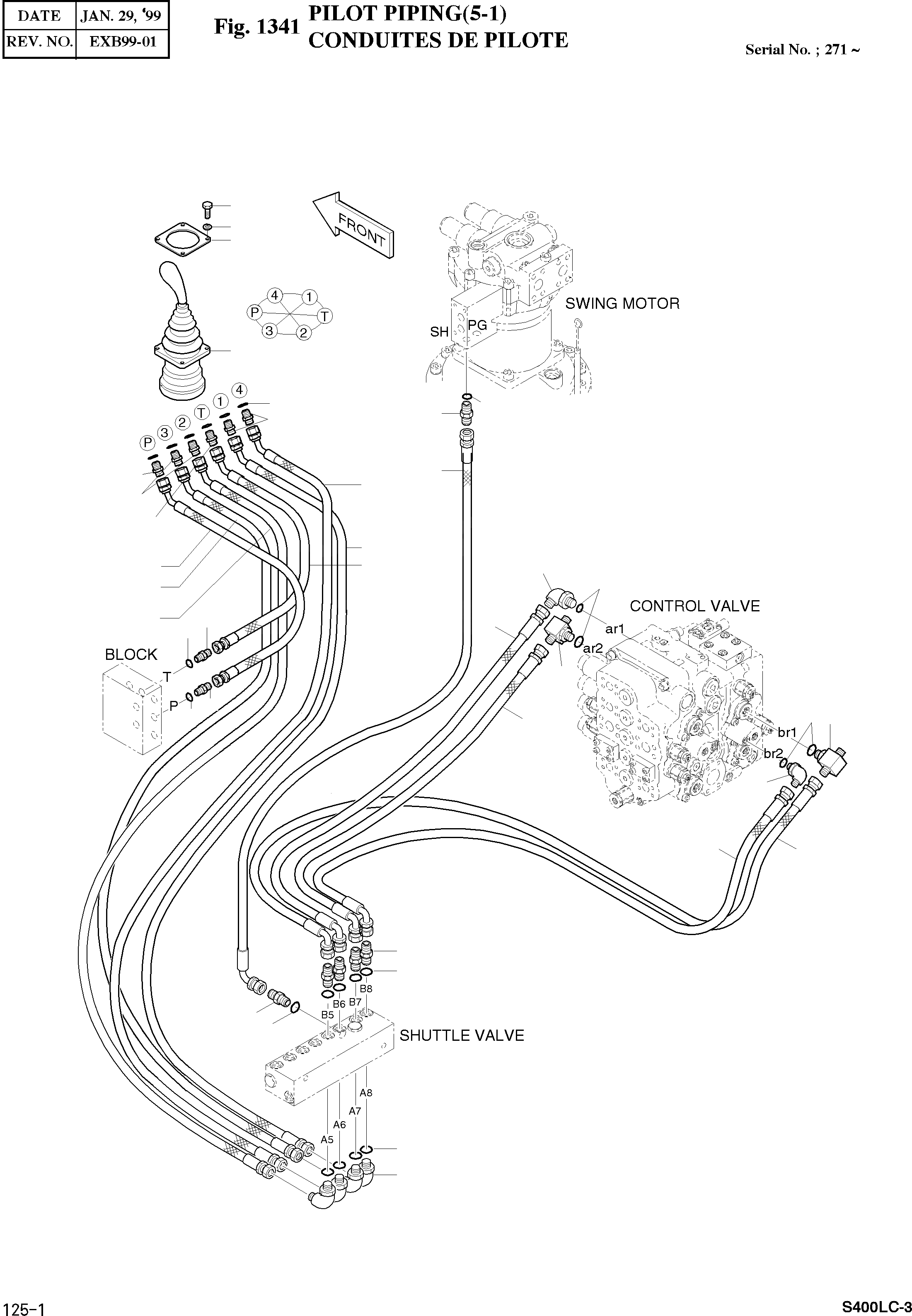

Запчасти Doosan Daewoo PILOT PIPING(5-1) BODY PARTS

|$1

2400-1887

PILOT PIPING

SERIAL: 271

-2шт.

2

2420-9417

VALVE;REMOTE CONTROL(R.H)

SERIAL: 271-276

1шт.

2

2420-9544

VALVE;REMOTE CONTROL(R.H)

SERIAL: 277

1шт.

3

S0505053

BOLT M6X1.0X25

desc: BOULON A 6 PANS

4шт.

4

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE M6

4шт.

12

2621-2752

PLATE

desc: PLAQUE

1шт.

31

2181-2281D3

TEE PFO3/8-PF3/8-PF1/4

desc: TE

2шт.

32

S8000111

O-RING P11

REP_PNO: 8202-009

7шт.

33

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

5шт.

37

2181-1126D7

ADAPTER PFO3/8-PF3/8

desc: RACCORD ADAPTATEUR

6шт.

38

S8000141

O-RING P14

REP_PNO: 8202-011

15шт.

39

2181-1126D36

ADAPTER PF3/8(O)XPF1/4

desc: RACCORD ADAPTATEUR

1шт.

44

2181-1126D89

ADAPTER PFO1/4-PF3/8

desc: RACCORD ADAPTATEUR

2шт.

46

2181-1702D10

ELBOW PFO3/8-PF1/4

desc: COUDE

4шт.

48

2181-1702D5

ELBOW PFO3/8-PF3/8

desc: COUDE

2шт.

71

2184-1249D31

HOSE;SYNFLEX PF3/8-1250L

desc: TUYAU FLEXIBLE

1шт.

73

2184-1046D227

HOSE PF3/8-2600L

desc: TUYAU FLEXIBLE

1шт.

76

2184-1249D16

HOSE;SYNFLEX PF3/8-1350L

desc: TUYAU FLEXIBLE

1шт.

78

2184-1046D227

HOSE PF3/8-2600L

desc: TUYAU FLEXIBLE

1шт.

88

2184-1249D2

HOSE;SYNFLEX PF1/4-1900L

desc: TUYAU FLEXIBLE

1шт.

90

2184-1249D2

HOSE;SYNFLEX PF1/4-1900L

desc: TUYAU FLEXIBLE

1шт.

91

2184-1249D2

HOSE;SYNFLEX PF1/4-1900L

desc: TUYAU FLEXIBLE

1шт.

93

2184-1249D2

HOSE;SYNFLEX PF1/4-1900L

desc: TUYAU FLEXIBLE

1шт.

94

2184-1046D117

HOSE PF1/4-1700L

desc: TUYAU FLEXIBLE

1шт.

101

2184-1046D226

HOSE PF3/8-2900L

desc: TUYAU FLEXIBLE

1шт.

102

2184-1046D231

HOSE PF3/8-2800L

desc: TUYAU FLEXIBLE

1шт.
