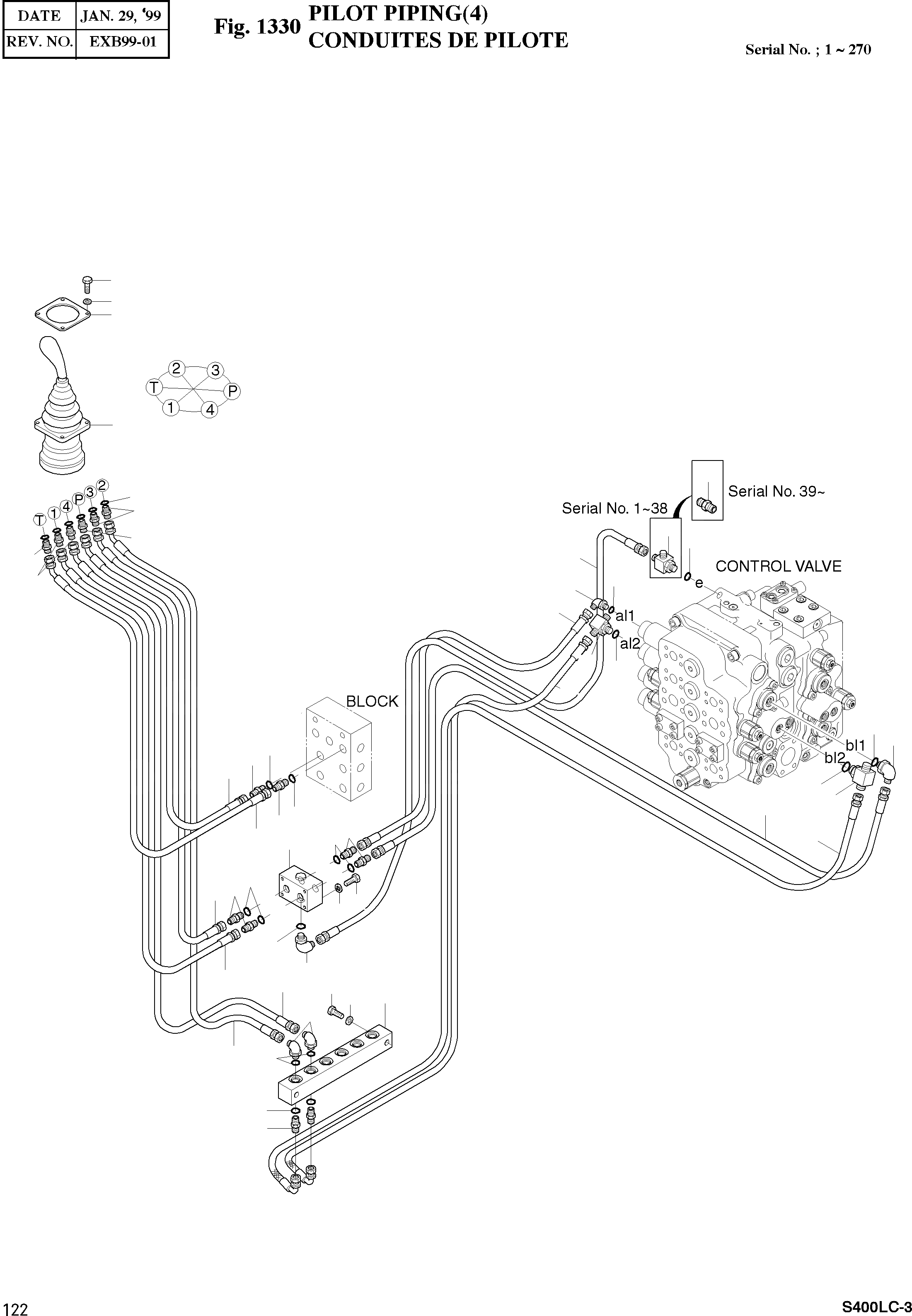

Запчасти Doosan Daewoo PILOT PIPING(4) BODY PARTS

|$1

2400-1576A

PILOT PIPING

SERIAL: 1-270

-2шт.

1

2420-9336

VALVE;REMOTE CONTROL(L.H)

SERIAL: 0001

1шт.

1

2420-9336A

VALVE;REMOTE CONTROL(L.H)

SERIAL: 0028

1шт.

1

2420-9359

VALVE;REMOTE CONTROL(L.H)

SERIAL: 29-78

1шт.

1

2420-9336A

VALVE;REMOTE CONTROL(L.H)

SERIAL: 79-153

1шт.

1

2420-9359A

VALVE;REMOTE CONTROL(L.H)

SERIAL: 154-183

1шт.

1

2420-9416

VALVE;REMOTE CONTROL(L.H)

SERIAL: 184

1шт.

3

S0505053

BOLT M6X1.0X25

desc: BOULON A 6 PANS

4шт.

4

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE M6

4шт.

7

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE M10

2шт.

10

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

2шт.

12

2621-2752

PLATE

desc: PLAQUE

1шт.

15

2420-9158

VALVE;SHUTTLE

desc: CLAPET BALADEUR

1шт.

16

S0556553

BOLT M8X1.25X60

desc: BOULON A 6 PANS

2шт.

31

2181-2281D3

TEE PFO3/8-PF3/8-PF1/4

desc: TE

2шт.

32

S8000111

O-RING P11

REP_PNO: 8202-009

12шт.

33

2181-1126D14

ADAPTER PFO1/4-PF1/4

SERIAL: 0001-0038

6шт.

33

2181-1126D14

ADAPTER PFO1/4-PF1/4

SERIAL: 0039

8шт.

36

2181-1951D1

TEE PF1/4(O)XPF1/4XPF1/4

SERIAL: 0001-0038

1шт.

37

2181-1126D7

ADAPTER PFO3/8-PF3/8

desc: RACCORD ADAPTATEUR

3шт.

38

S8000141

O-RING P14

REP_PNO: 8202-011

10шт.

42

2181-1702D4

ELBOW PFO1/4-PF1/4

desc: COUDE

1шт.

44

2181-1126D89

ADAPTER PFO1/4-PF3/8

desc: RACCORD ADAPTATEUR

4шт.

46

2181-1702D10

ELBOW PFO3/8-PF1/4

desc: COUDE

2шт.

48

2181-1702D5

ELBOW PFO3/8-PF3/8

desc: COUDE

2шт.

50

2184-1249D15

HOSE;SYNFLEX PF1/4-1400L

desc: TUYAU FLEXIBLE

1шт.

51

2184-1249D15

HOSE;SYNFLEX PF1/4-1400L

desc: TUYAU FLEXIBLE

1шт.

52

2184-1249D15

HOSE;SYNFLEX PF1/4-1400L

desc: TUYAU FLEXIBLE

1шт.

53

2184-1249D15

HOSE;SYNFLEX PF1/4-1400L

desc: TUYAU FLEXIBLE

1шт.

57

2184-1249D17

HOSE;SYNFLEX PF3/8-1700L

desc: TUYAU FLEXIBLE

1шт.

58

2184-1249D17

HOSE;SYNFLEX PF3/8-1700L

desc: TUYAU FLEXIBLE

1шт.

67

2184-1046D226

HOSE PF3/8-2900L

desc: TUYAU FLEXIBLE

1шт.

68

2184-1046D227

HOSE PF3/8-2600L

desc: TUYAU FLEXIBLE

1шт.

69

2184-1045D193

HOSE PF3/8-2700L

desc: TUYAU FLEXIBLE

1шт.

70

2184-1045D194

HOSE PF3/8-2350L

desc: TUYAU FLEXIBLE

1шт.

79

2184-1045D175

HOSE PF1/4-2650L

desc: TUYAU FLEXIBLE

1шт.

104

S0558653

BOLT M10X1.5X55

desc: BOULON A 6 PANS

2шт.

105

2423-1404

BLOCK

desc: BLOC

1шт.
