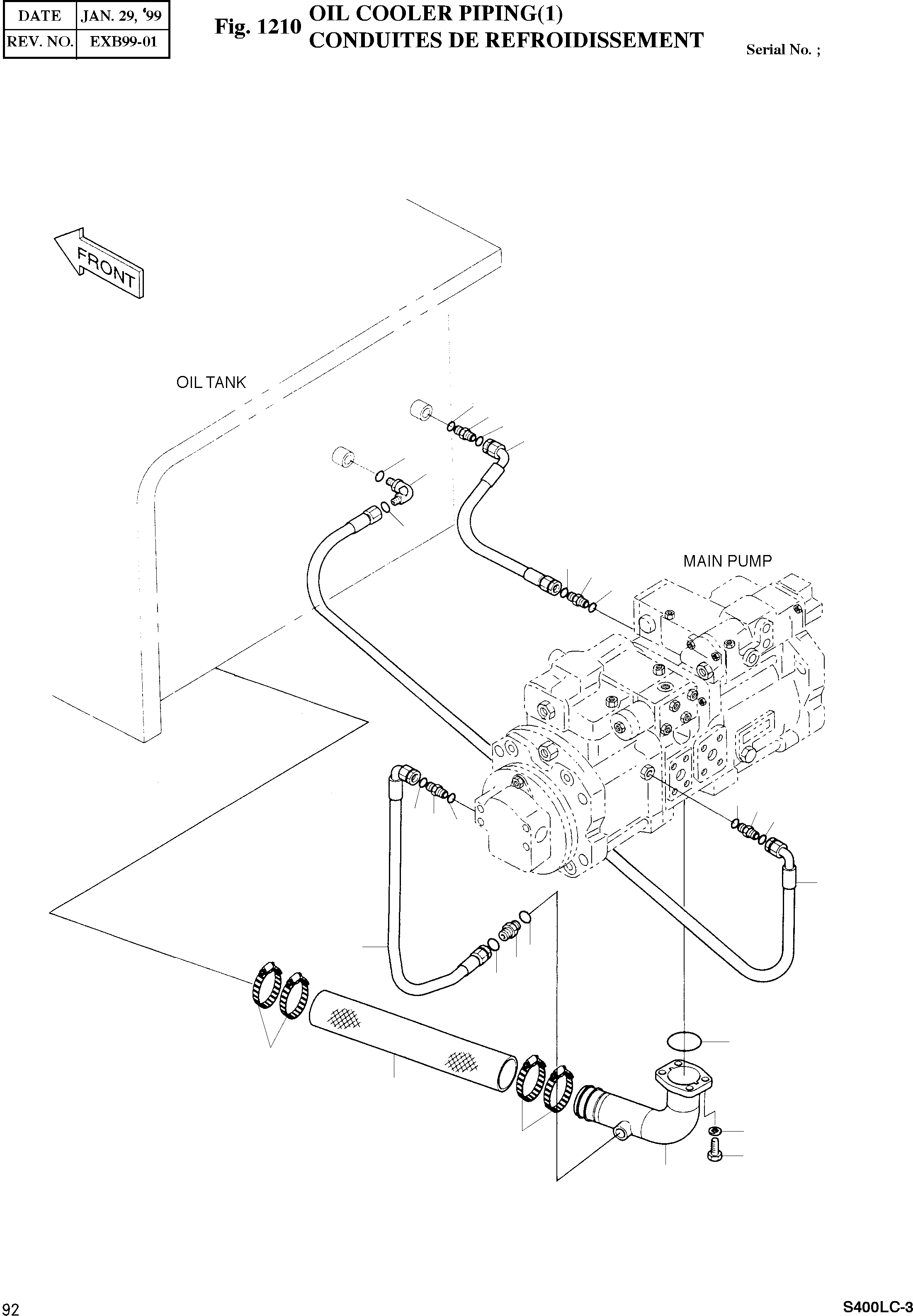

Запчасти Doosan Daewoo OIL COOLER PIPING(1) BODY PARTS

|$1

2400-1575A

OIL COOLER PIPING

SERIAL: 1-290

-2шт.

|$2

2400-1575B

OIL COOLER PIPING

SERIAL: 291

-2шт.

9

2183-3876

PIPE;SUCTION

desc: TUBE D'ASPIRATION

1шт.

10

2181-2294D2

ELBOW PF3/4

desc: COUDE

1шт.

17

2180-1026D32

O-RING SAE3"

desc: JOINT TORIQUE

1шт.

18

S5110901

WASHER;SPRING M16

desc: RONDELLE ELASTIQUE

4шт.

19

S2221461

BOLT;SOCKET M16X2.0X40

desc: BOULON A 6 PANS CREUX

4шт.

23

2185-1002D60

HOSE;SUCTION Ґх89.1XҐх106.1-615L

desc: TUYAU D'ASPIRATION

1шт.

24

S8450095

CLAMP;HOSE

desc: COLLIER

4шт.

30

2184-1197D30

HOSE 1 3/16"-12UN-2B-600L

desc: TUYAU FLEXIBLE

1шт.

31

2184-1197D26

HOSE 1 3/16"-12UN-2B-1600L

desc: TUYAU FLEXIBLE

1шт.

32

2184-1197D35

HOSE 1 3/16"-12UN-2B-700L

desc: TUYAU FLEXIBLE

1шт.

33

2181-4133D5

ADAPTER PFO3/4-UNF1 3/16-12

desc: RACCORD ADAPTATEUR

5шт.

34

S8000241

O-RING P24

desc: JOINT TORIQUE

6шт.

35

S8030121

O-RING

desc: JOINT TORIQUE

6шт.
