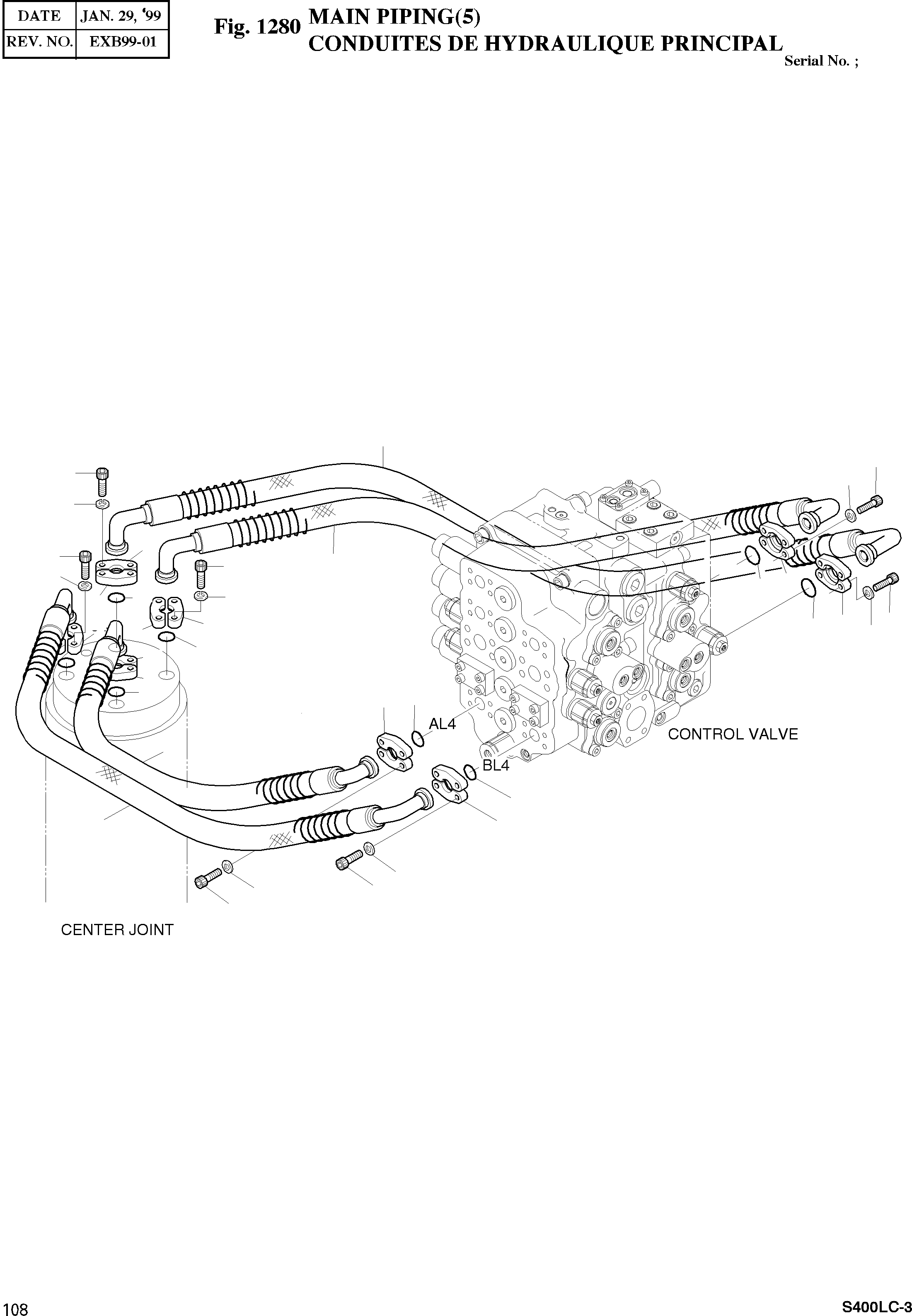

Запчасти Doosan Daewoo MAIN PIPING(5) BODY PARTS

-

2400-1574A

MAIN PIPING

desc: CONDUITES PRINCIPALES

-2шт.

7

2181-9078

FLANGE;SPLIT

desc: FLASQUE EN DEUX PARTIES

8шт.

8

2181-9081

FLANGE;SPLIT

desc: FLASQUE EN DEUX PARTIES

8шт.

8

2181-9081

FLANGE;SPLIT

desc: FLASQUE EN DEUX PARTIES

4шт.

13

2180-1026D19

O-RING SAE 1"

desc: JOINT TORIQUE

8шт.

27

2184-1124D48

HOSE 1"6000PSI-1330L

desc: TUYAU FLEXIBLE

1шт.

28

2184-1124D49

HOSE 1"6000PSI-1620L

desc: TUYAU FLEXIBLE

1шт.

29

2184-1124D50

HOSE 1"6000PSI-1550L

desc: TUYAU FLEXIBLE

1шт.

30

2184-1124D51

HOSE 1"6000PSI-1250L

desc: TUYAU FLEXIBLE

1шт.

47

S2215561

BOLT;SOCKET M12X1.75X45

desc: BOULON A 6 PANS CREUX

16шт.

50

S2212361

BOLT;SOCKET M10X1.5X35

desc: BOULON A 6 PANS CREUX

16шт.

54

S5110701

WASHER;SPRING M12

REP_PNO: 8131-009

16шт.

55

S5110601

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

16шт.

64

2181-9084A

FLANGE;SPLIT

desc: FLASQUE EN DEUX PARTIES

4шт.
