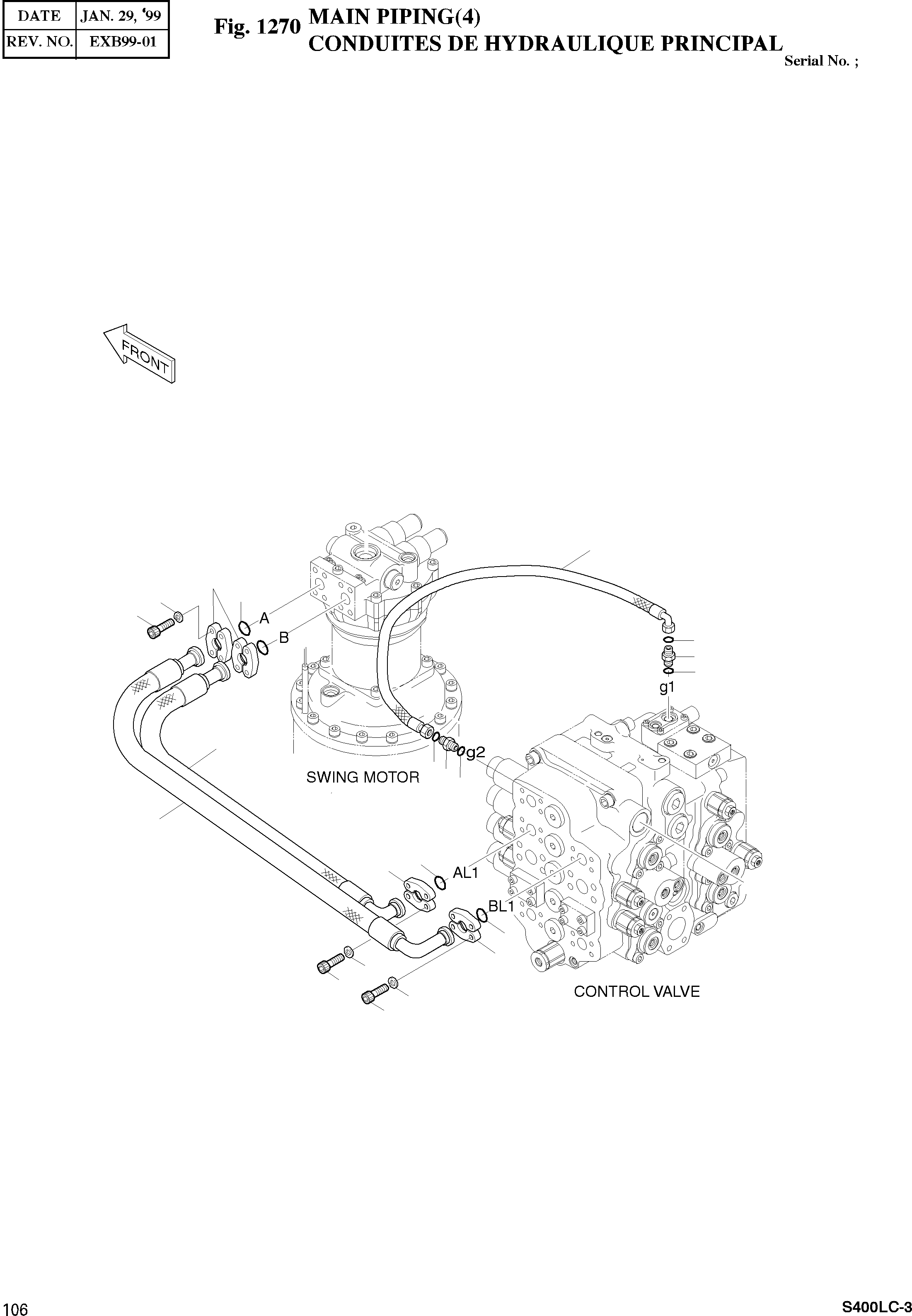

Запчасти Doosan Daewoo MAIN PIPING(4) BODY PARTS

-

2400-1574A

MAIN PIPING

desc: CONDUITES PRINCIPALES

-2шт.

3

2181-4133D2

ADAPTER PFO3/8-UNF11/16-16

desc: RACCORD ADAPTATEUR

2шт.

7

2181-9078

FLANGE;SPLIT

desc: FLASQUE EN DEUX PARTIES

4шт.

8

2181-9081

FLANGE;SPLIT

desc: FLASQUE EN DEUX PARTIES

4шт.

10

S8030061

O-RING ORFS

desc: JOINT TORIQUE

2шт.

11

S8000141

O-RING P14

REP_PNO: 8202-011

2шт.

13

2180-1026D19

O-RING SAE 1"

desc: JOINT TORIQUE

4шт.

34

2184-1100D68

HOSE 1"-790L

desc: TUYAU FLEXIBLE

1шт.

35

2184-1100D51

HOSE 1"-570L

desc: TUYAU FLEXIBLE

1шт.

38

2184-1197D53

HOSE 11/16"-12UN-2B-860L

desc: TUYAU FLEXIBLE

1шт.

47

S2215561

BOLT;SOCKET M12X1.75X45

desc: BOULON A 6 PANS CREUX

8шт.

50

S2212361

BOLT;SOCKET M10X1.5X35

desc: BOULON A 6 PANS CREUX

8шт.

54

S5110701

WASHER;SPRING M12

REP_PNO: 8131-009

8шт.

55

S5110601

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

8шт.
