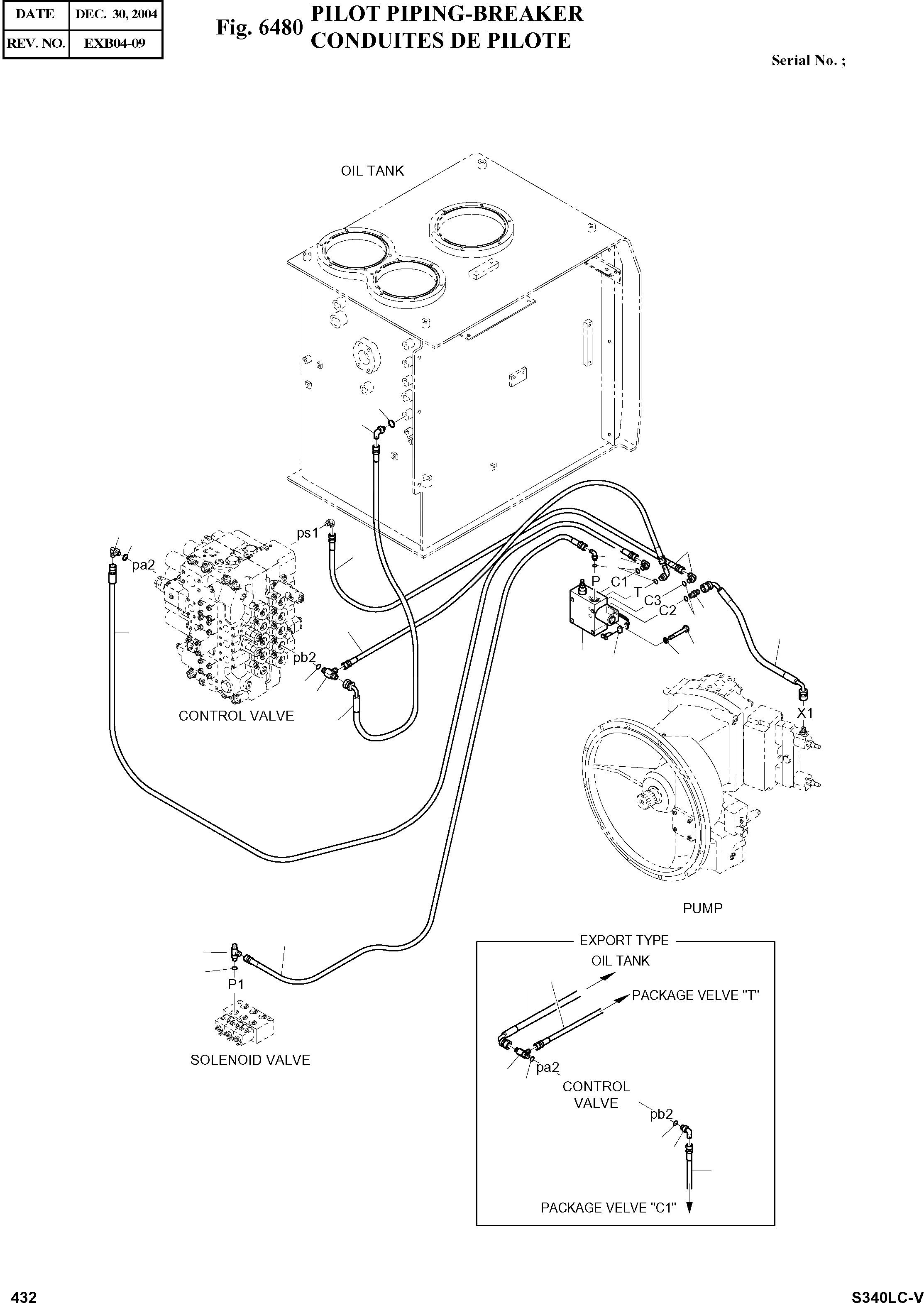

Запчасти Doosan Daewoo PILOT PIPING-BREAKER OPTION PARTS

-

400-00935

PILOT PIPING-BREAKER

SC: D

-2шт.

1

420-00340

VALVE;BREAKER

SERIAL: 1001-1374

1шт.

1

420-00340A

VALVE;BREAKER

SERIAL: 1375-1392

1шт.

1

420-00340B

VALVE;BREAKER

SERIAL: 1393

1шт.

2

S0558953

BOLT M10X1.5X70

desc: BOULON A 6 PANS

3шт.

3

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

3шт.

4

S8000111

O-RING

desc: JOINT TORIQUE

6шт.

5

S8000141

O-RING

desc: JOINT TORIQUE

3шт.

6

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: ADAPTEUR

1шт.

7

2181-1702D4

ELBOW PFO1/4-PF1/4

desc: COUDE

4шт.

8

2181-1702D10

ELBOW PFO3/8-PF1/4

desc: COUDE

2шт.

9

2181-1951D7

TEE

desc: TE

1шт.

10

2181-1951D1

TEE

desc: TE

1шт.

11

2184-1045D104

HOSE PF1/4-2400L

desc: TUYAU FLEXIBLE

1шт.

12

2184-1045D208

HOSE PF1/4-1540L

desc: TUYAU FLEXIBLE

1шт.

13

2184-1045D125

HOSE PF1/4-1700L

desc: TUYAU FLEXIBLE

1шт.

14

2184-1061D34

HOSE PF1/4-1100L

desc: TUYAU FLEXIBLE

1шт.

15

2184-1045D115

HOSE PF1/4-1280L

desc: TUYAU FLEXIBLE

1шт.

16

2184-1046D130

HOSE PF1/4-750L

desc: TUYAU FLEXIBLE

1шт.

17

530-00232

HARNESS;BREAKER

desc: FAISCEAU

1шт.

19

2184-1046D52

HOSE PF1/4-1100L

desc: TUYAU FLEXIBLE

1шт.
