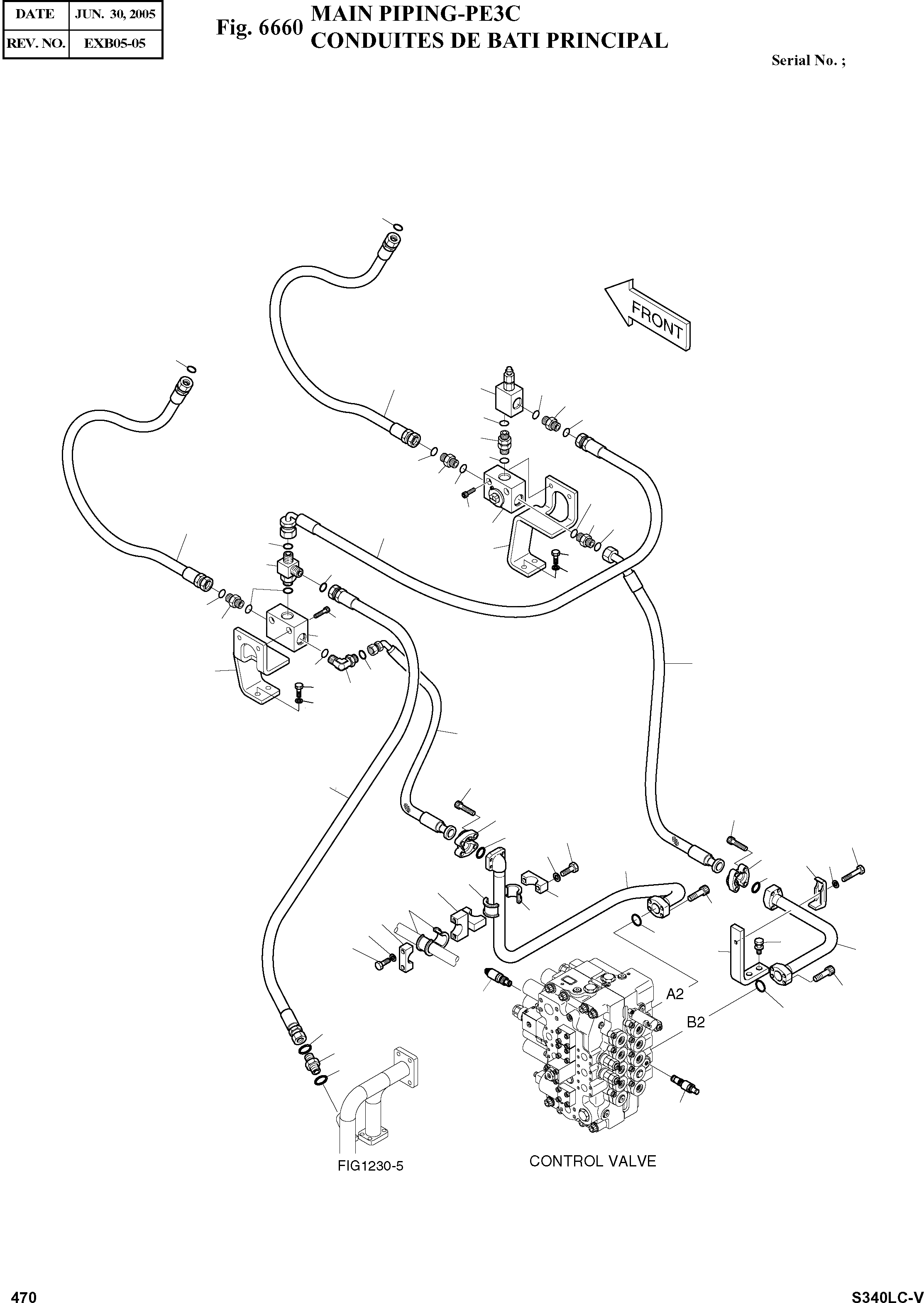

Запчасти Doosan Daewoo MAIN PIPING-PE3C OPTION PARTS

-

K1008079F1

MAIN PIPING-PE3C

SC: D

-2шт.

1

140-01176

PIPE

desc: TUYAU

1шт.

2

140-01177

PIPE

desc: TUYAU

1шт.

3

DS2011421

HOSE 1450L

desc: TUYAU FLEXIBLE

2шт.

4

DS2082005

HOSE 950L

desc: TUYAU FLEXIBLE

1шт.

5

DS2025057

HOSE 650L

desc: TUYAU FLEXIBLE

1шт.

6

DS2013633

HOSE 1500L

desc: TUYAU FLEXIBLE

1шт.

7

DS2011451

HOSE 1220L

desc: TUYAU FLEXIBLE

1шт.

8

K1002695A

VALVE;SWITCH

desc: VANNE

2шт.

9

2420-9627B

VALVE;RELIEF

desc: VANNE

1шт.

10

K1007584

BRACKET

desc: SUPPORT

1шт.

11

K1007585

BRACKET

desc: SUPPORT

1шт.

12

195-01943

BRACKET

desc: SUPPORT

1шт.

13

124-00249A

CLAMP;PIPE

desc: ATTACHE DE TUBE

1шт.

14

2124-1696

CLAMP;PIPE

desc: ATTACHE DE TUBE

2шт.

15

2124-1026D3

CLAMP;PIPE

desc: ATTACHE DE TUBE

1шт.

16

2161-2251A

RUBBER

desc: CAOUTCHOUC

4шт.

17

S2212266

BOLT;SOCKET M10X1.5X30

desc: BOULON A 6PANS

8шт.

18

S2212466

BOLT;SOCKET M10X1.5X40

desc: BOULON A 6PANS

8шт.

19

S2215766

BOLT;SOCKET M12X1.75X55

desc: BOULON A 6PANS

4шт.

20

2181-9078

FLANGE

desc: BRIDE

4шт.

21

S0512253

BOLT M10X1.5X30

desc: BOULON A 6PANS

4шт.

22

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

4шт.

23

S0560953

BOLT M12X1.75X60

desc: BOULON A 6PANS

4шт.

24

S0561053

BOLT M12X1.75X65

desc: BOULON A 6PANS

1шт.

25

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

5шт.

26

2120-2196D11

BOLT;SET

desc: BOULON A 6PANS

2шт.

27

2180-1026D19

O-RING

desc: JONT TORIQUE

4шт.

28

S8030161

O-RING

desc: JONT TORIQUE

10шт.

29

S8000291

O-RING

desc: JONT TORIQUE

9шт.

30

2181-4133D6

ADAPTER

desc: RACCORD ADAPTATEUR

5шт.

31

2181-2818

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

32

2181-2815D1

ELBOW

desc: ECROU

1шт.

33

2181-2293D4

TEE

desc: TE

1шт.

34

420-00258

VALVE;OVERLOAD RELIEF

desc: VANNE

2шт.
