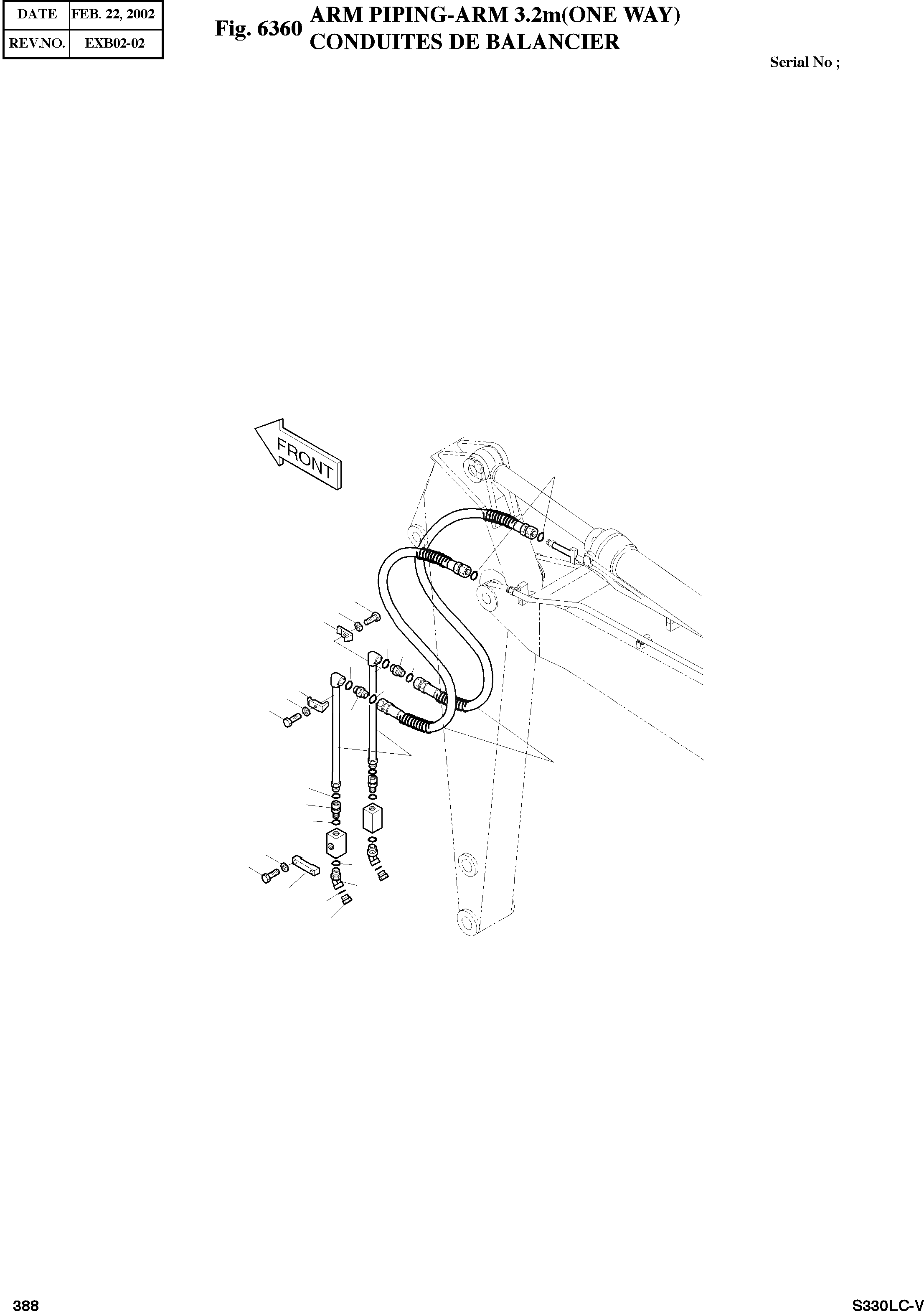

Запчасти Doosan Daewoo ARM PIPING-ARM 3.2M(ONE WAY) OPTION PARTS

-

2400-2157

PIPING;STD.ARM ONE & TWO WAY

SC: D

-2шт.

1

2420-9631

VALVE;STOP

SERIAL: 1001-1355

2шт.

1

2420-9631A

VALVE;STOP

SERIAL: 1356

2шт.

2

2181-2816D3

ELBOW

desc: COUDE

2шт.

2

DS2332013

ELBOW(FOR KOREA)

desc: COUDE

2шт.

3

S8000381

O-RING

desc: JOINT TORIQUE

6шт.

4

2140-1681

PIPE;ARM

desc: TUYAU

2шт.

5

2181-2817D3

CAP

desc: CHAPEAU

2шт.

5

2181-2820D6

CAP(FOR KOREA)

desc: CHAPEAU

2шт.

6

2180-1026D37

O-RING

desc: JOINT TORIQUE

8шт.

7

2181-2566D9

ADAPTER

desc: RACCORD ADAPTATEUR

2шт.

8

S0565861

BOLT M16X2.0X80

desc: BOULON A 6 PANS

4шт.

9

2181-4133D35

ADAPTER PFO-ORS1 1/4

desc: RACCORD ADAPTATEUR

2шт.

10

2184-1196D93

HOSE PF1 1/4-2300L

desc: TUYAU FLEXIBLE

2шт.

11

2124-1697

CLAMP

desc: ATTACHE

2шт.

12

S5102901

WASHER;SPRING

desc: RONDELLE ELASTIQUE

8шт.

13

S0566161

BOLT M16X2.0X95

desc: BOULON A 6 PANS

4шт.

14

2124-1551

CLAMP;PIPE

desc: ATTACHE DE TUYAU

4шт.
