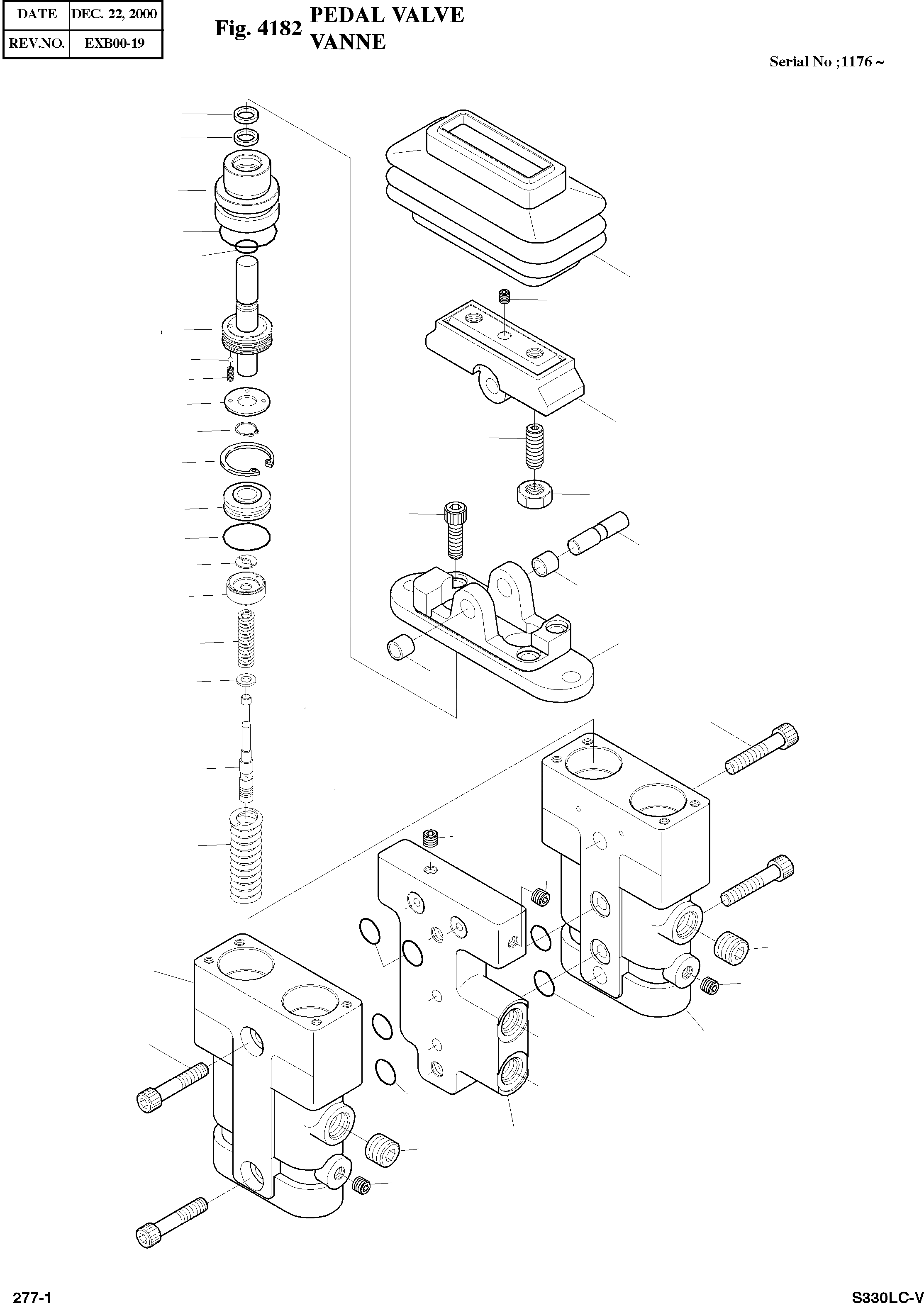

Запчасти Doosan Daewoo PEDAL VALVE PILOT PIPING(6)

-

420-00030

PEDAL VALVE

SERIAL: 1176

1шт.

1

J98J1001

BODY(1)

desc: BOITIER

1шт.

2

J98J1002

BODY(2)

desc: BOITIER

1шт.

3

NWP116

PLUG NPT1/16

desc: BOUCHON

4шт.

4

WPT38

PLUG PT3/8

desc: BOUCHON

2шт.

5

J98J1003

SEAT;SPRING

desc: RESSORT DE SIEGE

4шт.

6

J98J1004

SPRING

desc: RESSORT

4шт.

7

J24D2008

SEAT;SPRING

desc: RESSORT DE SIEGE

4шт.

8

J98J1005

SPOOL

desc: PLUNGEUR

4шт.

9

J98J1006

STOPPER

desc: ARRET

4шт.

10

J98J1007

SPRING

desc: RESSORT

4шт.

11

J98J1008

GUIDE;ROD

desc: GUIDE

4шт.

12

P022

O-RING

desc: JOINT TORIQUE

4шт.

13

SR28CH

RING;SNAP

desc: BAGUE

4шт.

14

J98J1009

ROD;PUSH

desc: TIGE DE POUSSOIR

4шт.

15

SP0306

PIN;SPRING

desc: GOUPILLE FENDUE

4шт.

16

J98J1010

SEAL

desc: JOINT D'HUILE

4шт.

17

SB18

BALL;STEEL

desc: BILLE

4шт.

18

J98J1011

SPRING

desc: RESSORT

4шт.

19

J98J1012

PLATE

desc: PLAQUE

4шт.

20

SR11CS

RING;SNAP

desc: BAGUE

4шт.

21

J98J1013

PLUG

desc: BOUCHON

4шт.

22

G025

O-RING

desc: JOINT TORIQUE

4шт.

23

RSY12

SEAL;ROD

desc: TIGE D'ETANCHEITE

4шт.

24

DSP12

SEAL;DUST

desc: JOINT D'HUILE

4шт.

25

J98J1014

COVER

desc: COUVERCLE

2шт.

26

WBM0630

BOLT;WRENCH M6X1.0X30

desc: BOULON A 6 PANS CREUX

4шт.

27

J24D2005

CAM

desc: CAME

2шт.

28

DU1010

BUSHING

desc: DOUILLE

4шт.

29

J24D2016

SHAFT;CAM

desc: ARBRE A CAMES

2шт.

30

SBM0605

SCREW;SET

desc: VIS

2шт.

31

J24D2015

SCREW;SET

desc: VIS

4шт.

32

HNM10

NUT M10

desc: ECROU

4шт.

33

J24D2006

BELLOWS

desc: SOUFFLET

2шт.

34

J98J1015

SPACER

desc: BAGUE D'ECARTEMENT

1шт.

35

P012

O-RING

desc: JOINT TORIQUE

4шт.

36

P010

O-RING

desc: JOINT TORIQUE

2шт.

37

WBM1042

BOLT;WRENCH M10X1.5X42

desc: BOULON A 6 PANS CREUX

4шт.
