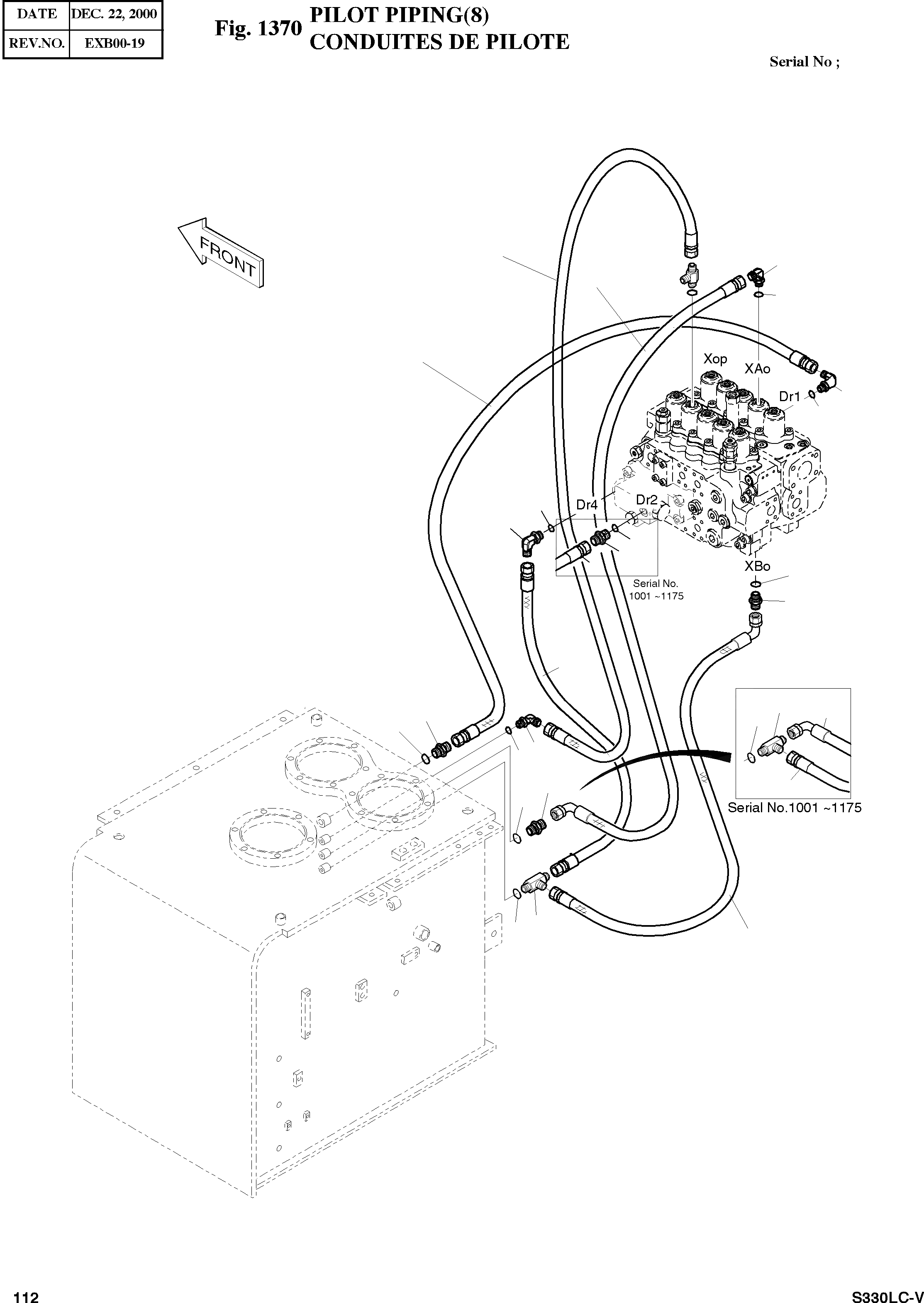

Запчасти Doosan Daewoo PILOT PIPING(8) BODY PARTS

-

2400-1920A

PILOT PIPING

SC: D

-2шт.

25

S8000141

O-RING

desc: JOINT TORIQUE

3шт.

26

S8000111

O-RING

SERIAL: 1001-1175

6шт.

26

S8000111

O-RING

SERIAL: 1176

5шт.

27

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

1шт.

28

2181-1126D7

ADAPTER PFO3/8-PF3/8

desc: RACCORD ADAPTATEUR

1шт.

30

2181-1126D36

ADAPTER PFO3/8-PF1/4

desc: RACCORD ADAPTATEUR

1шт.

32

2181-1702D4

ELBOW PFO1/4-PF1/4

desc: COUDE

2шт.

33

2181-1702D3

ELBOW PFO1/4-PF3/8

desc: COUDE

1шт.

36

2181-1702D10

ELBOW PFO3/8-PF1/4

desc: COUDE

1шт.

38

2181-1951D1

TEE PF1/4-2PF1/4

SERIAL: 1001-1175

2шт.

38

2181-1951D1

TEE PF1/4-2PF1/4

SERIAL: 1176

1шт.

80

2184-1045D90

HOSE PF1/4-800L

desc: TUYAU FLEXIBLE

1шт.

95

2184-1046D43

HOSE PF1/4-480L

SERIAL: 1001-1175

1шт.

97

2184-1046D59

HOSE PF1/4-640L

desc: TUYAU FLEXIBLE

1шт.

101

2184-1046D84

HOSE PF1/4-1050L

desc: TUYAU FLEXIBLE

1шт.

102

2184-1046D94

HOSE PF/4-780L

desc: TUYAU FLEXIBLE

1шт.

104

2184-1026D236

HOSE PF3/8-1150L

desc: TUYAU FLEXIBLE

1шт.
