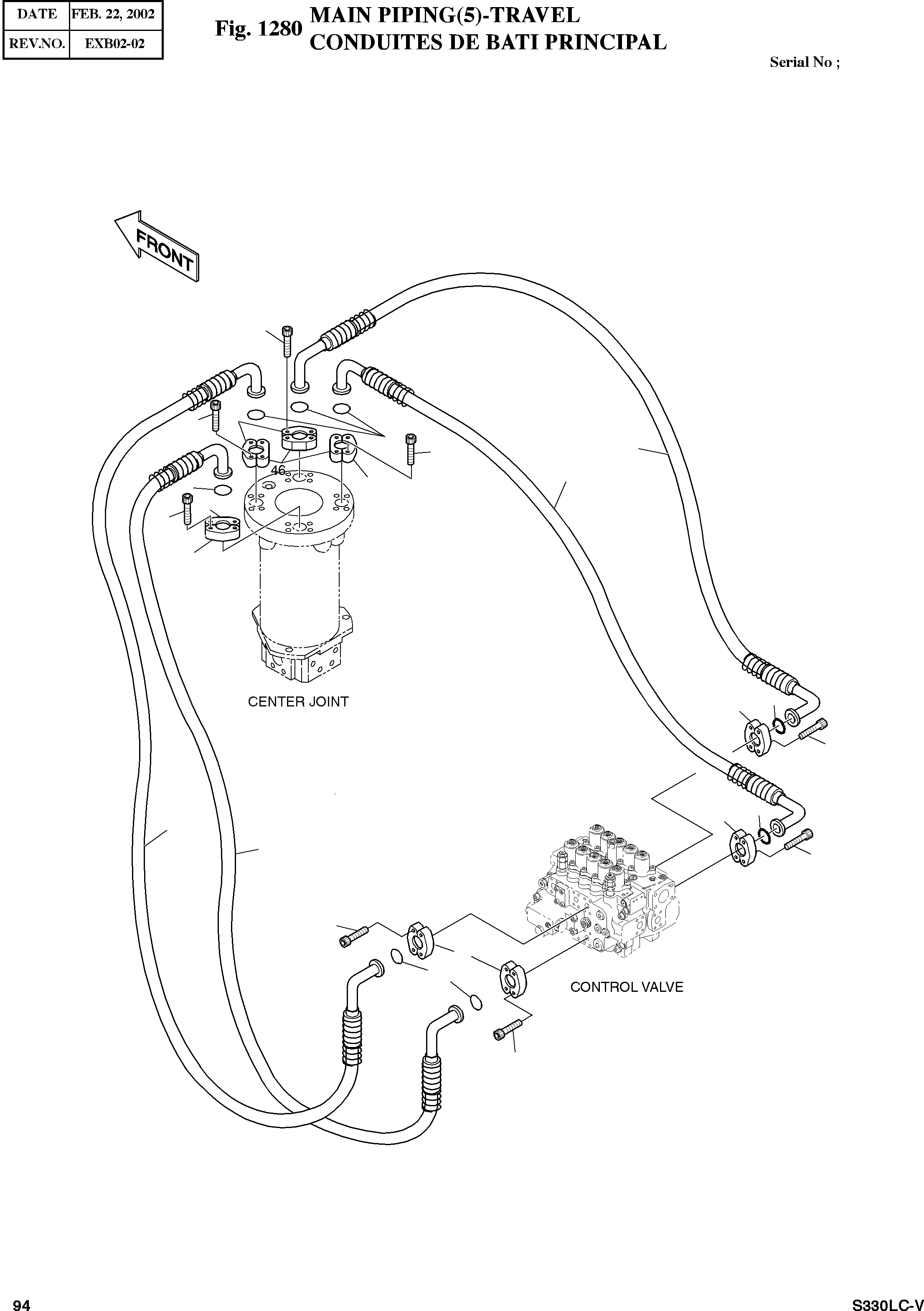

Запчасти Doosan Daewoo MAIN PIPING(5)-TRAVEL BODY PARTS

-

2400-1997

MAIN PIPING

SC: D

-2шт.

6

2180-1026D19

O-RING

desc: JOINT TORIQUE

4шт.

17

2184-1124D129

HOSE PF3/4-1800L

desc: TUYAU FLEXIBLE

1шт.

18

2184-1124D130

HOSE PF3/4-1500L

desc: TUYAU FLEXIBLE

1шт.

26

S2212261

BOLT;SOCKET M10X1.5X30

SERIAL: 1001-1370

16шт.

26

S2212266

BOLT;SOCKET M10X1.5X30

SERIAL: 1371

16шт.

28

S2215461

BOLT;SOCKET M12X1.75X40

SERIAL: 1001-1370

16шт.

28

S2215466

BOLT;SOCKET M12X1.75X40

SERIAL: 1371

16шт.

30

2180-1026D2

O-RING

desc: JOINT TORIQUE

4шт.

31

2181-9079

FLANGE;SPLIT

desc: FLASQUE EN DEUX PARTIES

8шт.

46

2181-9084A

FLANGE;SPLIT

desc: FLASQUE EN DEUX PARTIES

8шт.

52

2184-1124D131

HOSE PF3/4-1900L

desc: TUYAU FLEXIBLE

1шт.

53

2184-1124D132

HOSE PF3/4-1600L

desc: TUYAU FLEXIBLE

1шт.
