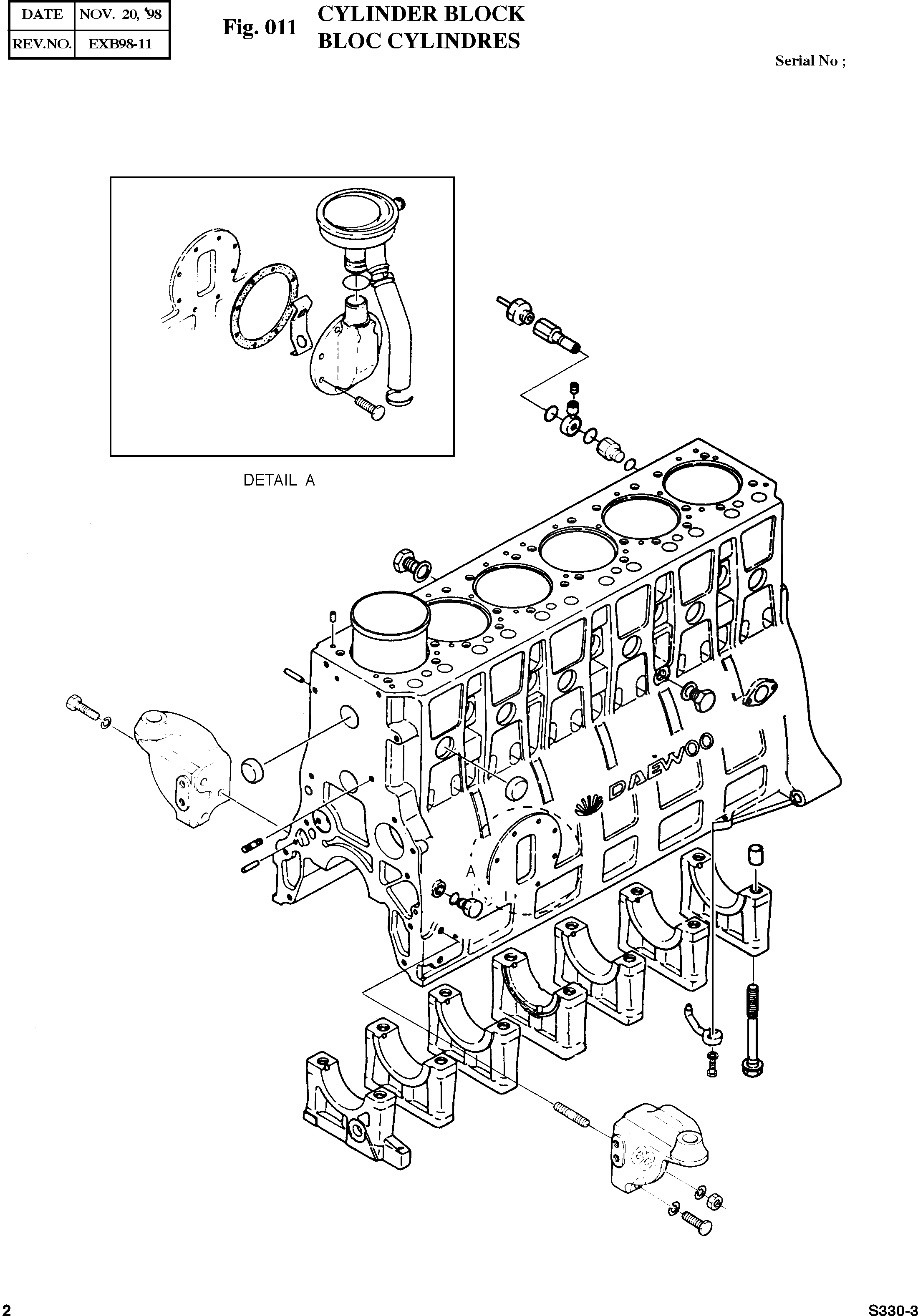

Запчасти Doosan Daewoo CYLINDER BLOCK ENGINE PARTS

1

65.01101-6036B

CYLINDER BLOCK ASS'Y

SERIAL: 9600408

1шт.

1

65.01101-6067

CYLINDER BLOCK ASS'Y

SERIAL: 9600409

1шт.

1-1

65.01101-0036A

BLOCK;CYLINDER

SERIAL: 9600408

1шт.

1-1

65.01101-0048

BLOCK;CYLINDER

SERIAL: 9600409

1шт.

1-1

65.04410-0016

BUSH;CAM SHAFT

desc: . COUSSINET DE PALIER D'ARBRE A CAMES

4шт.

1-1

65.91606-0041

PLUG;CORE HOLE

desc: . BOUCHON

2шт.

3

65.01105-1157

CAP;BEARING(7)

SC: D

1шт.

4

65.01105-1158

CAP;BEARING(3.5)

SC: D

2шт.

5

65.01105-1159D

CAP;BEARING(4)

SC: D

1шт.

5-1

65.01105-1161

CAP;BEARING(1.2.6)

SC: D

3шт.

6

65.91710-0035

RING;LOCATING

desc: . BAGUE DE CENTRAGE

14шт.

7

65.90020-0036B

BOLT;BEARING CAP

desc: . VIS DE CHAPEAU DE PALIER

14шт.

8

06.15091-0326

PLUG;CORE HOLE

desc: BOUCHON

15шт.

9

65.90201-0057

BOLT;STUD. TIMING GEAR CASE

desc: GOUJON

1шт.

10

65.01201-0051

LINER;CYLINDER

SERIAL: 9700501

6шт.

10

65.01201-0072

LINER;CYLINDER

SERIAL: 9700502

6шт.

11

06.22022-0907

PIN;DOWEL 6M6X10

desc: GOUPILLE D'AJUSTAGE

4шт.

12

65.90320-0022

SCREW;PLUG

desc: BOUCHON FILETE

1шт.

13

65.98150-0002

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

15

06.22022-1009

PIN;DOWEL 8M6X14

desc: BROCHE

2шт.

16

06.56190-0718

RING;SEAL A22X27

desc: BAGUE D'ETANCHEITE

2шт.

17

65.90310-0136

SCREW;PLUG M22X1.5

desc: BOUCHON A VIS

2шт.

18

06.56190-0713

RING;SEAL A12X18

desc: BAGUE D'ETANCHEITE

1шт.

19

65.90310-0091

SCREW;PLUG

desc: BOUCHON FILETE

1шт.

20

06.22022-1112

PIN;DOWEL 10M6X20

desc: BAGUE

2шт.

21

65.98130-0076

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

22

06.56190-0704

RING;SEAL A12X18

desc: BAGUE D'ETANCHEITE

3шт.

23

65.27441-7007

SWITCH;OIL PRESSURE

desc: INTERRUPTEUR

1шт.

24

65.01908-0005

GASKET;BREATHER CASE

desc: JOINT

1шт.

25

65.01803-0006

BAFFLE;BREATHER

desc: DEFLECTEUR

1шт.

26

65.01801-0002

CASE;BREATHER

desc: CARTER

1шт.

29

06.01923-3113

BOLT;HEX. M8X20

desc: BOULON A 6 PANS

8шт.

30

65.96501-0032

O-RING 36.09X3.53

desc: JOINT TORIQUE

1шт.

31

65.01801-5023

BREATHER PIPE ASS'Y

desc: ENSEMBLE RENIFLARD

1шт.

32

06.67020-0106

CLAMP;HOSE

desc: COLLIER

1шт.

33

65.96301-0189

HOSE;RUBBER

desc: TUYAU CAOUTCHOUC

1шт.

34

65.97401-0142

CLIP;HOSE

desc: CLIP

1шт.

35

65.41530-0124

BRACKET;MOUNTING(LH)

desc: SUPPORT

1шт.

36

65.41530-0125

BRACKET;MOUNTING(RH)

desc: SUPPORT

1шт.

37

65.90201-0063

BOLT;STUD M14X1.5X35

desc: GOUJON

2шт.

38

06.16731-2110

WASHER;SPRING A14

desc: RONDELLE ELASTIQUE A14

10шт.

39

06.11063-9217

NUT;HEX. M14X1.5

desc: ECROU 6 PANS

2шт.

40

06.01494-4410

BOLT;HEX. M14X1.5X55

desc: BOULON A 6 PANS

4шт.

40

06.01494-4409

BOLT;HEX. M14X1.5X55

desc: BOULON A 6 PANS

4шт.

41

06.08092-2406

SCREW;PLUG M18X1.5

desc: BOUCHON FILETE

1шт.

42

06.56190-0713

RING;SEAL

desc: BAGUE D'ETANCHEITE

1шт.

43

65.98130-0083

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

44

65.01601-6002

OIL SPRAY ROZZLE

desc: ENSEMBLE REFROIDISSEUR D'HUILE

6шт.

45

06.16044-0208

WASHER.SP B6

desc: RONDELLE

12шт.

46

65.90001-0126

BOLT.HEX

desc: BOULON A 6 PANS

12шт.
