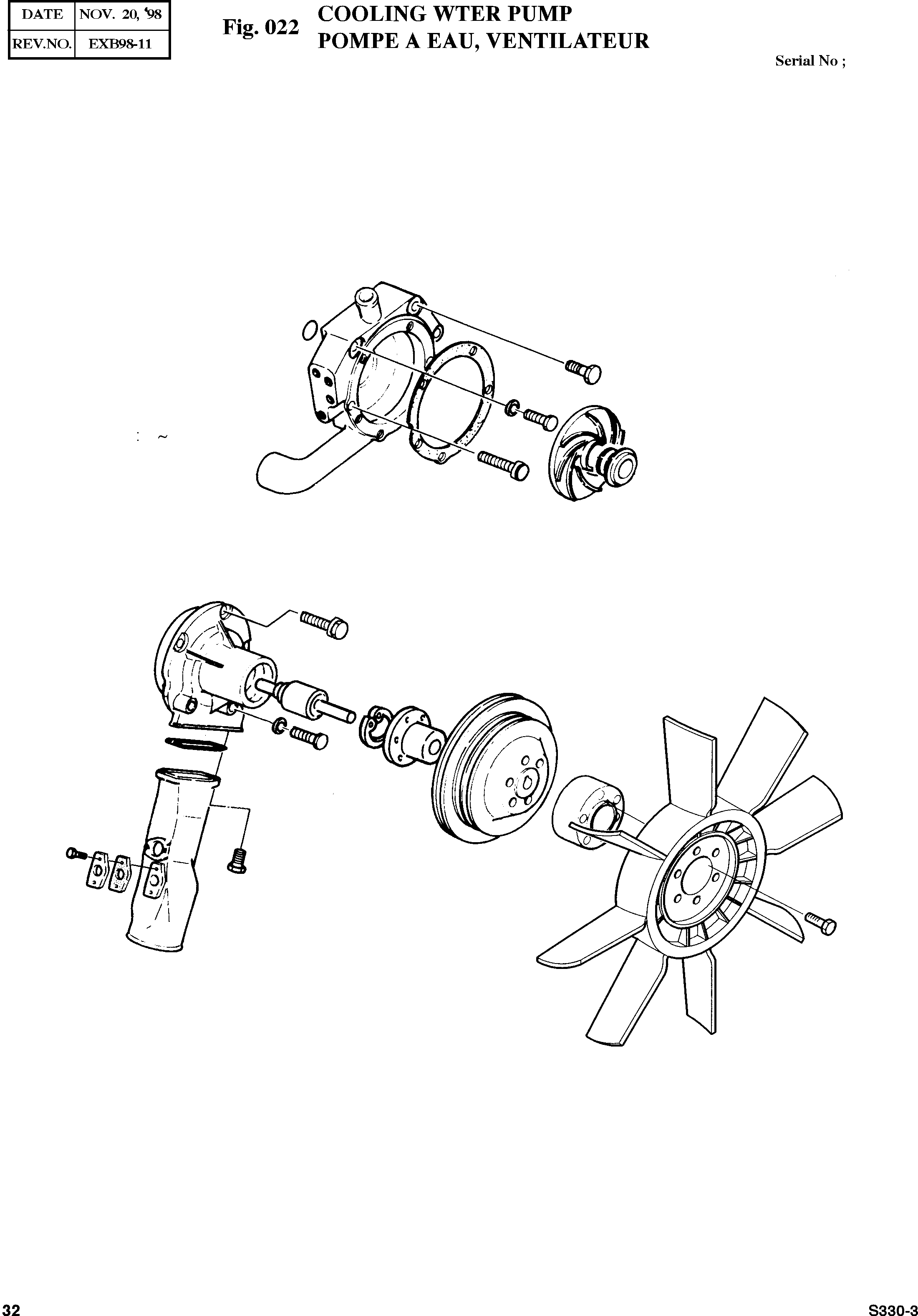

Запчасти Doosan Daewoo COOLING WATER PUMP ENGINE PARTS

1

65.06500-6347

WATER PUMP ASS'Y

desc: ENSEMBLE POMPE A EAU

1шт.

2

65.06501-0044

HOUSING;SUCTION

desc: . BOITIER DE POMPE A EAU

1шт.

3

65.06501-0053

HOUSING;WATER PUMP

desc: . BOITER DE POMPE A EAU

1шт.

4

65.93410-0024

BEARING;UNIT

desc: . PALIER

1шт.

5

65.06506-0013

IMPELLER

desc: . TURBINE

1шт.

6

65.06520-6007

SEAL;MECHANICAL

desc: . BAGUE D'ETANCHEITE

1шт.

7

06.29020-0132

RING;SNAP 55X2

desc: . CIRCLIP

1шт.

8

65.06901A0055

GASKET;INNER

desc: . JOINT

1шт.

9

06.01913-3114

BOLT ASS'Y M8X22

desc: . BOULON A 6 PANS

3шт.

10

06.01013-9115

BOLT;HEX M8X50

desc: . BOULON A 6 PANS

2шт.

11

06.16731-2107

WASHER;SPRING A8

desc: . RONDELLE ELASTIQUE

2шт.

12

65.06504-0013

HUB;FAN DRIVE

desc: . BOITIES

1шт.

13

65.06503-0087

PULLEY;WATER PUMP

desc: . POULIE DE COURROIE

1шт.

14

65.06901-0027

O-RING;WATER PUMP

desc: JOINT TORIQUE

1шт.

15

06.01913-3224

BOLT;HEX M10X1.5X65

desc: BOULON A 6 PANS

1шт.

16

06.01013-9219

BOLT;HEX M10X1.5X70

desc: BOULON A 6 PANS

1шт.

17

06.01913-3220

BOLT ASS'Y M10X45

desc: BOULON A 6 PANS

2шт.

18

06.16731-2108

WASHER;SPRING A10

desc: RONDELLE ELASTIQUE

3шт.

19

65.06903A0009

GASKET;COOLING WATER

desc: JOINT

1шт.

20

65.06301-0087

COOLING WATER PIPE ASS'Y

desc: ENSEMBLE CONDUITS D'EAU

1шт.

21

06.01923-3117

BOLT ASS'Y M8X30

desc: BOULON A 6 PANS

2шт.

22

65.96601A0203

GASKET

desc: JOINT

1шт.

23

65.91610-0004

FLANGE;COVER

desc: BRIDE

1шт.

24

06.01913-2911

BOLT ASS'Y M6X16

desc: BOULON A 6 PANS

2шт.

25

65.06601-5038

FAN;COOLING

SERIAL: 9700058

1шт.

25

65.06601-5053

FAN;COOLING

SERIAL: 9700059

1шт.

26

65.06611-0009

FLANGE;FAN

SERIAL: 9700058

1шт.

26

65.06611-0110

FLANGE;FAN

SERIAL: 9700059

1шт.

27

06.01913-3128

BOLT ASS'Y M8X85

SERIAL: 9700058

6шт.

27

65.90001-6009

BOLT ASS'Y M8X105

SERIAL: 9700059

6шт.
