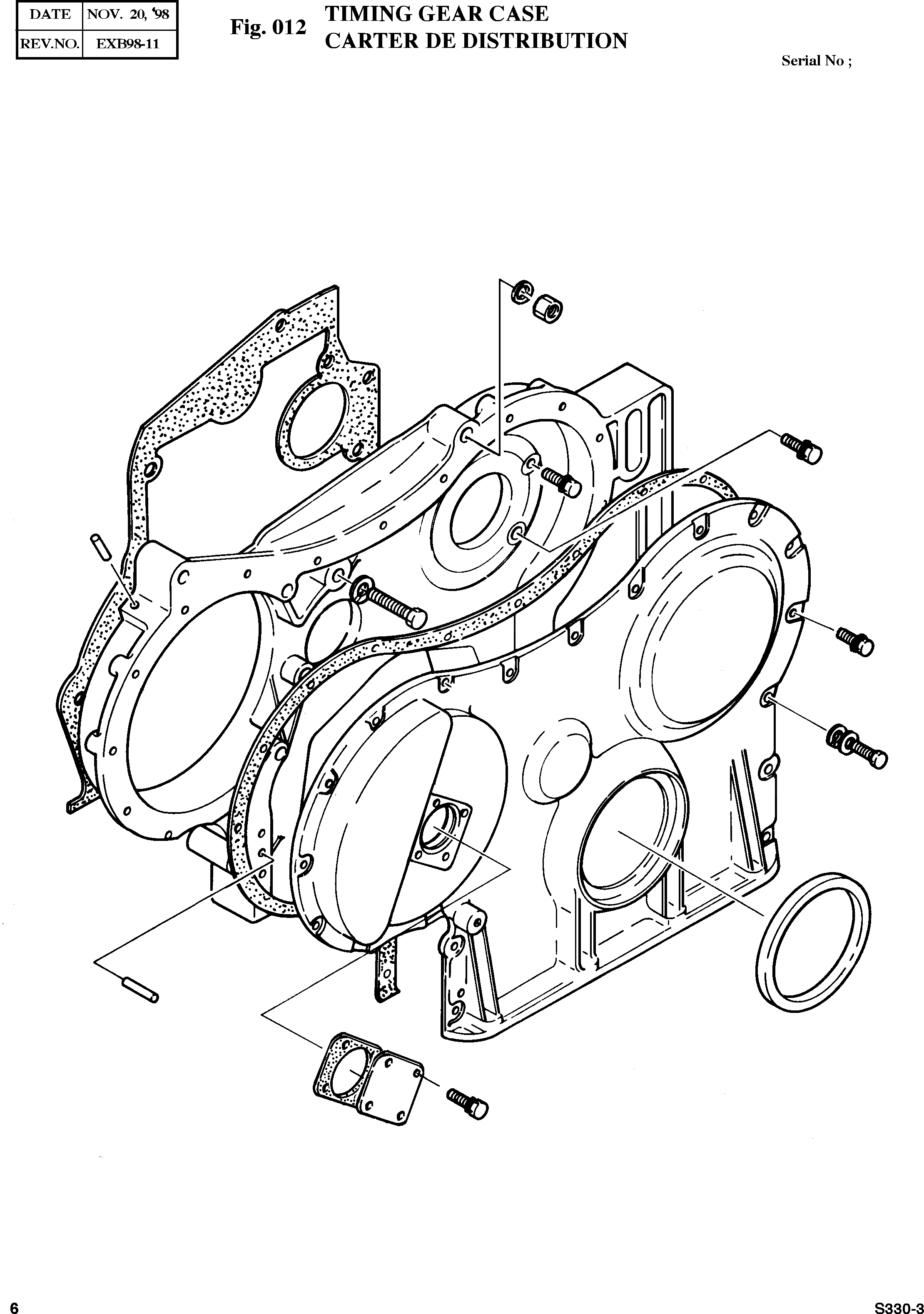

Запчасти Doosan Daewoo TIMING GEAR CASE ENGINE PARTS

1

65.01903-0027

GASKET;TIMING GEAR CASE

desc: JOINT

1шт.

2

65.01304-0004G

CASE;TIMING GEAR

desc: CARTER DE DISTRIBUTION

1шт.

3

06.01914-3215

BOLT;HEX. ASS'Y M10X25

desc: BOULON A 6 PANS

2шт.

5

65.01943-3317

BOLT;HEX. ASS'Y M12X1.5X30

desc: VIS 6 PANS

6шт.

7

06.01493-4309

BOLT;HEX. M12X1.5X50

desc: BOULON A 6 PANS

2шт.

8

06.16731-2109

WASHER;SPRING A12

desc: RONDELLE ELASTIQUE A12

2шт.

9

06.11063-9216

NUT;HEX. M12X1.5

desc: ECROU 6 PANS

1шт.

10

06.16731-2109

WASHER;SPRING A12

desc: RONDELLE ELASTIQUE A12

1шт.

11

06.22022-0712

PIN;DOWEL 4M6X20

desc: BROCHE

1шт.

14

65.01903-0176

GASKET;TIMING GEAR CASE COVER

desc: JOINT

1шт.

15

65.01305-5029C

TIMING GEAR CASE COVER ASS'Y

desc: ENSEMBLE COUVERCLE DE CARTER DE

1шт.

16

06.22022-0907

PIN;DOWEL 6M6X12

desc: BROCHE

2шт.

17

65.90720-0003

WASHER M6.4

desc: RONDELLE

2шт.

18

06.16731-2105

WASHER;SPRING A6

desc: RONDELLE ELASTIQUE A6

2шт.

19

06.01923-2914

BOLT;HEX. ASS'Y M6X22

desc: BOULON A 6 PANS

17шт.

19-1

06.01283-6917

BOLT;HEX. M6X30

desc: BOULON A 6 PANS

2шт.

20

65.01510-0026

SEAL;CRANK SHAFT(FRONT)-EXPORT

desc: BAGUE D'ETANCHEITE VILEBREQUIN(AVANT)

1шт.

21

65.27901-0005

GASKET

desc: JOINT

1шт.

22

65.91605-0009

COVER;END

desc: COUVERCLE ARRIERE

1шт.

23

06.01913-2911

BOLT;HEX. ASS'Y

desc: BOULON 6 PANS

4шт.
