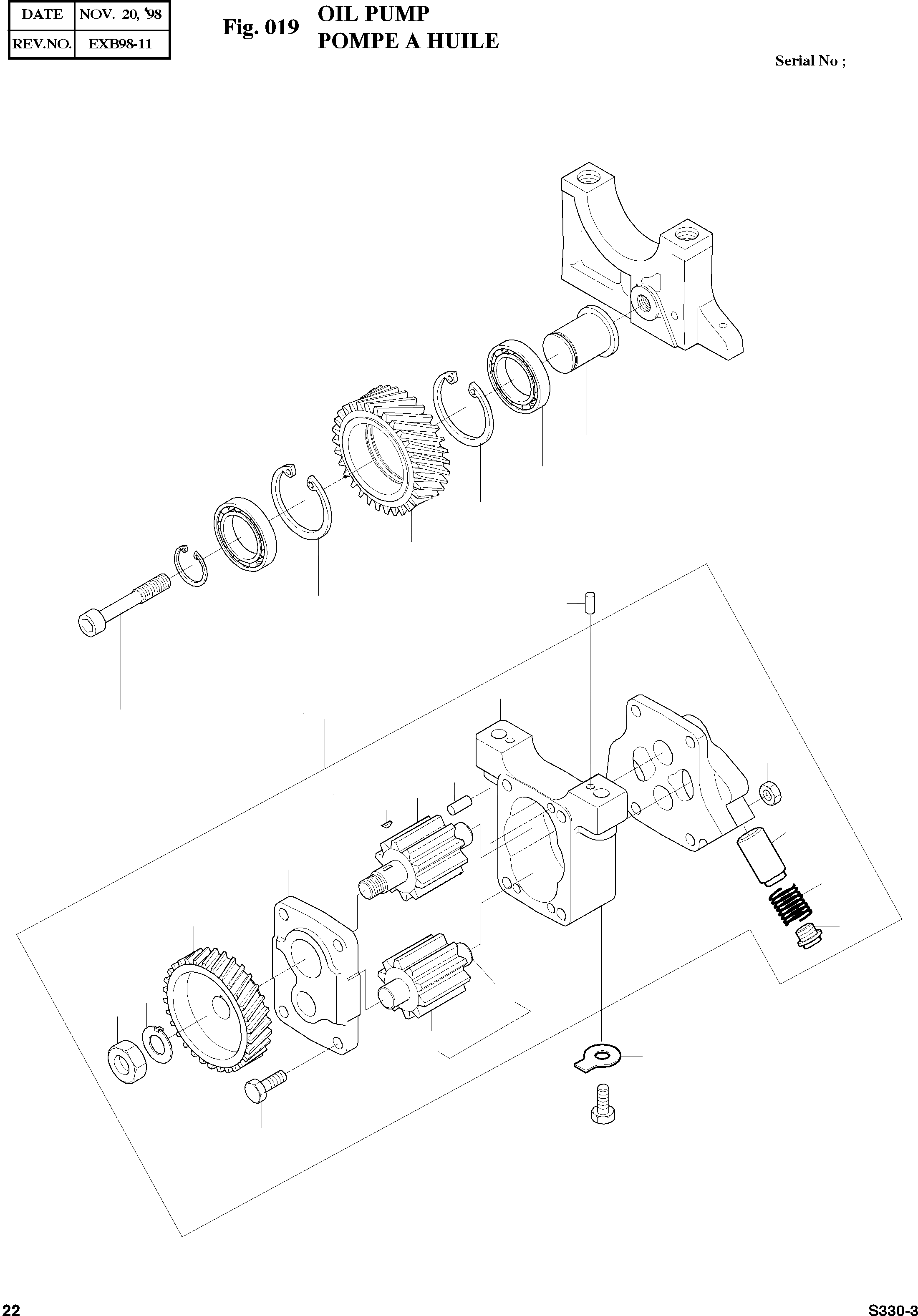

Запчасти Doosan Daewoo OIL PUMP ENGINE PARTS

1

65.05204-0036

GEAR;IDLE

desc: PIGNON FOU

1шт.

2

06.31420-0314

BEARING;BALL #6006

desc: ROULEMENT A BILLES #6006

2шт.

3

06.29020-0132

RING;SNAP 55X2

desc: CIRCLIP

2шт.

4

65.05205-0018

PIN;IDLE GEAR

desc: GOUPILLE DE PIGNON FOU

1шт.

6

06.29010-0125

RING;SNAP 30X2

desc: CIRCLIP

1шт.

7

65.90030-0009

BOLT;HEX. SOCKET HEAD

desc: VIS A TETE HEXAGONALE

1шт.

7-1

65.05100-6023

OIL PUMP ASS'Y

desc: POMPE A HUILE

1шт.

8

65.05201-0034

GEAR;OIL PUMP DRIVE

desc: . ENSEMBLE POMPE A HUILE

1шт.

9

65.05102-0015

HOUSING;OIL PUMP

SC: D

1шт.

10

65.05104-5003

OIL PUMP GEAR ASS'Y

desc: . ENGRENAGE

1шт.

10-1

65.05104-0004

GEAR;PUMP

SC: D

1шт.

11

65.05105-0006

SHAFT

SC: D

1шт.

12

65.05103-5012

OIL PUMP COVER ASS'Y

SC: D

1шт.

12

65.05103-0012

COVER

SC: D

1шт.

12

65.93020-0007

BUSH

SC: D

2шт.

13

65.05103-5015

OIL PUMP COVER ASS'Y

SC: D

1шт.

13

65.05103-0064

COVER

SC: D

1шт.

13

65.93020-0007

BUSH

SC: D

1шт.

13

65.93020-0006

BUSH

SC: D

1шт.

14

06.22022-0909

PIN;DOWEL 6M6X14

desc: . BROCHE

4шт.

15

06.01013-9118

BOLT;HEX

desc: . BOULON A 6 PANS

4шт.

16

65.90510-0012

NUT;CLEVELOC

desc: . ECROU CLEVELOC M8

4шт.

17

06.29141-0207

KEY;WOODRUFF

desc: . CLAVETTE WOODRUFF

1шт.

18

06.16050-0311

WASHER;LOCK

desc: . RONDELLE FREIN

1шт.

19

06.11053-9217

NUT;HEX

desc: . ECROU 6 PANS

1шт.

23

65.05410-0025

PLUNGER;VALVE

desc: . PLONGEURR DE SOUPAPE

1шт.

24

65.97601-0110

SPRING;COMPRESSION

desc: . RESSORT DE COMPRESSION

1шт.

25

65.90310-0104

SCREW;PLUG

desc: . BOUCHON FILETE

1шт.

26

65.05104-5004

OIL PUMP GEAR ASS'Y

desc: . ENGRENAGE

1шт.

27

06.22022-0907

PIN;DOWEL 6M6X10

desc: BROCHE

2шт.

29

06.01913-3221

BOLT;HEX M10X50

desc: BOULON A 6 PANS

2шт.

30

65.90801-0038

WASHER;LOCK

desc: RONDELLE FREIN

2шт.
