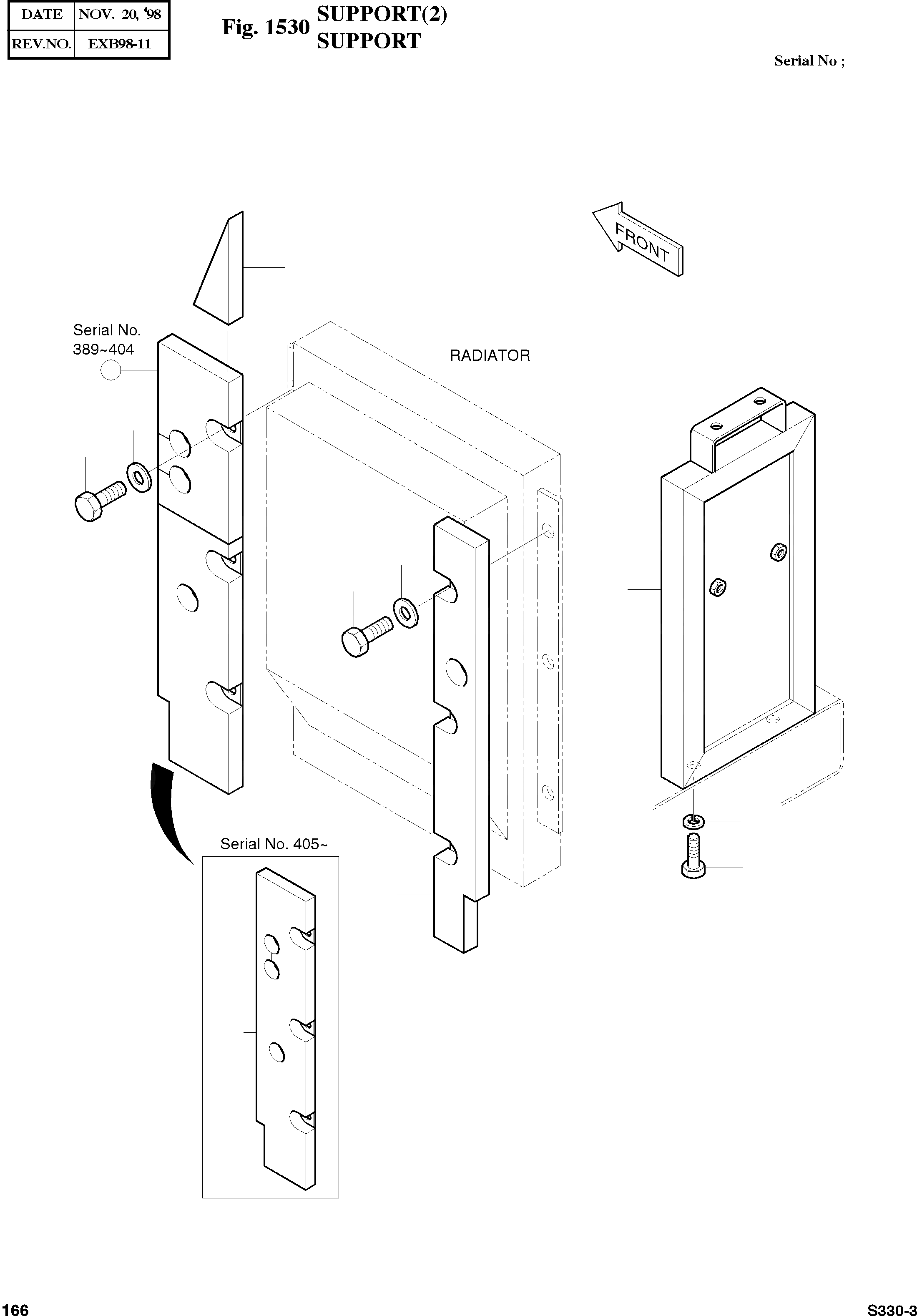

Запчасти Doosan Daewoo SUPPORT(2) BODY PARTS

-

2197-1145

SUPPORT ASS'Y

desc: ENSEMBLE SUPPORT

1шт.

4

2195-4782A

SUPPORT

desc: SUPPORT

1шт.

14

2621-3180A

COVER

SERIAL: 1-103

1шт.

14

2621-3180B

COVER

SERIAL: 104-388

1шт.

14

REP_PNO: 2161-2318

-1шт.

14

2621-3180C

COVER

SERIAL: 389-404

1шт.

14

2621-3180E

COVER

SERIAL: 405

1шт.

15

2621-3183A

COVER

SERIAL: 1-419

1шт.

15

2621-3183B

COVER

SERIAL: 420

1шт.

16

S0521351

BOLT M16X2.0X35

desc: BOULON A 6 PANS

2шт.

17

S5102901

WASHER;SPRING M16

desc: RONDELLE ELASTIQUE

2шт.

20

S0515253

BOLT M12X1.75X30

desc: BOULON A 6 PANS

6шт.

21

2114-1058D10

WASHER M10X2.9T

desc: RONDELLE PLATE

6шт.

22

2161-2032A

FOAM 60T

desc: EPONGE

1шт.

24

2161-2318

SPONGE

SERIAL: 389-404

1шт.
