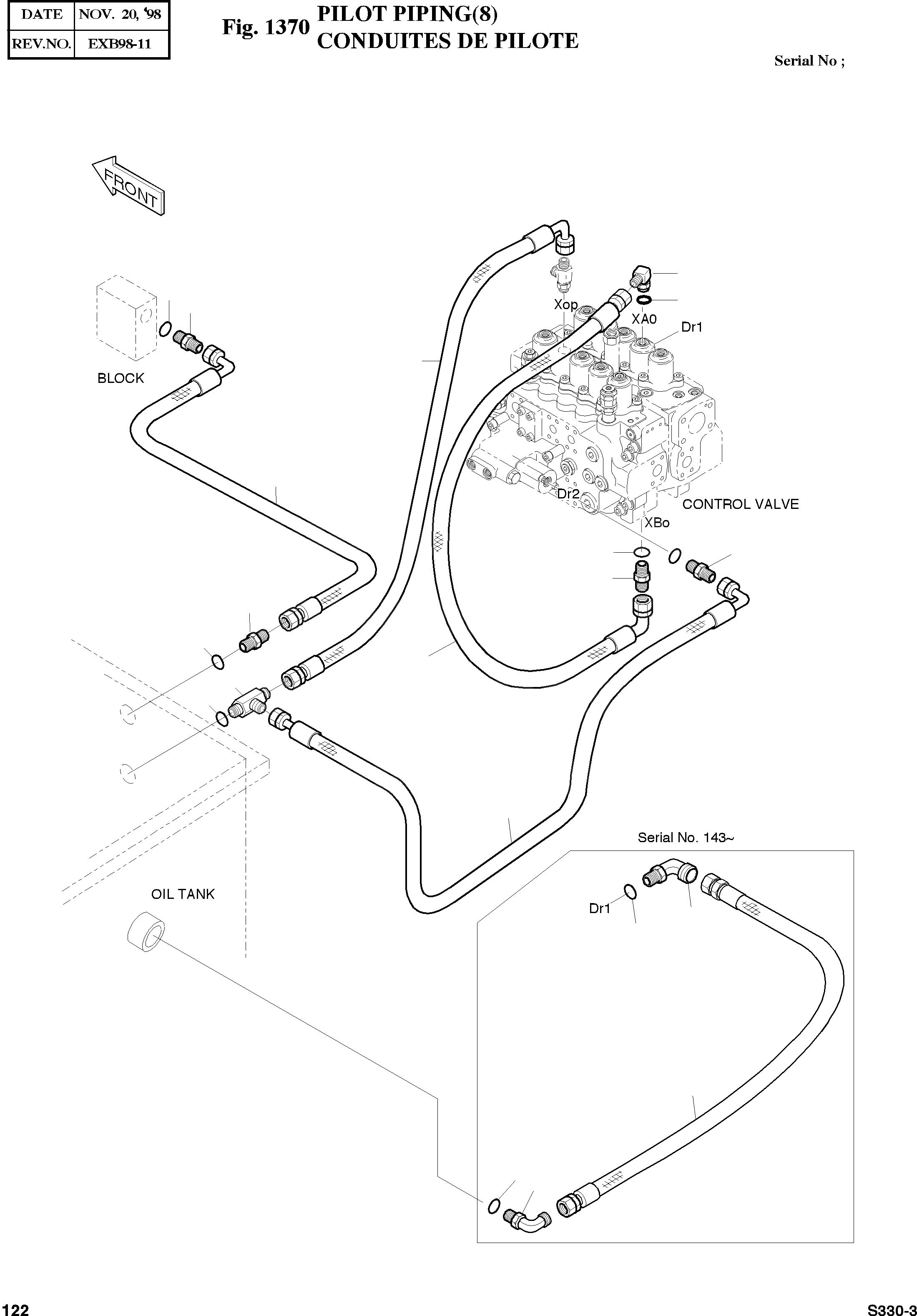

Запчасти Doosan Daewoo PILOT PIPING(8) BODY PARTS

-

2400-1693

PIPING;PILOT

desc: CONDUITES DE PILOTE

-2шт.

28

2181-1126D6

ADAPTER PF(0)1/2XPF1/2

desc: RACCORD

2шт.

29

S8000181

O-RING P18

REP_PNO: 8202-014

2шт.

32

S8000111

O-RING P11

SERIAL: 1-142

4шт.

32

S8000111

O-RING P11

SERIAL: 143

5шт.

33

2181-1126D14

ADAPTER PF(0)1/4XPF1/4

desc: RACCORD

2шт.

36

2181-1951D1

TEE PF1/4(0)XPF1/4XPF1/4

desc: TE

1шт.

38

S8000141

O-RING P14

SERIAL: 143

1шт.

47

2181-1702D4

ELBOW PF(0)1/4XPF1/4

desc: COUDE

1шт.

51

2184-1046D162

HOSE PF1/4-920L

desc: TUYAU FLEXIBLE

1шт.

56

2184-1045D117

HOSE PF1/4-1220L

desc: TUYAU FLEXIBLE

1шт.

88

2184-1046D133

HOSE PF1/4-625L

desc: TUYAU FLEXIBLE

1шт.

103

2184-1036D267

HOSE PF1/2-2000L

desc: TUYAU FLEXIBLE

1шт.

112

2181-1702D3

ELBOW PF1/4(0)XPF3/8

SERIAL: 143

1шт.

113

2181-1702D5

ELBOW PF3/8(0)XPF3/8

SERIAL: 143

1шт.

114

2184-1026D5

HOSE PF3/8-1900

SERIAL: 143

1шт.
