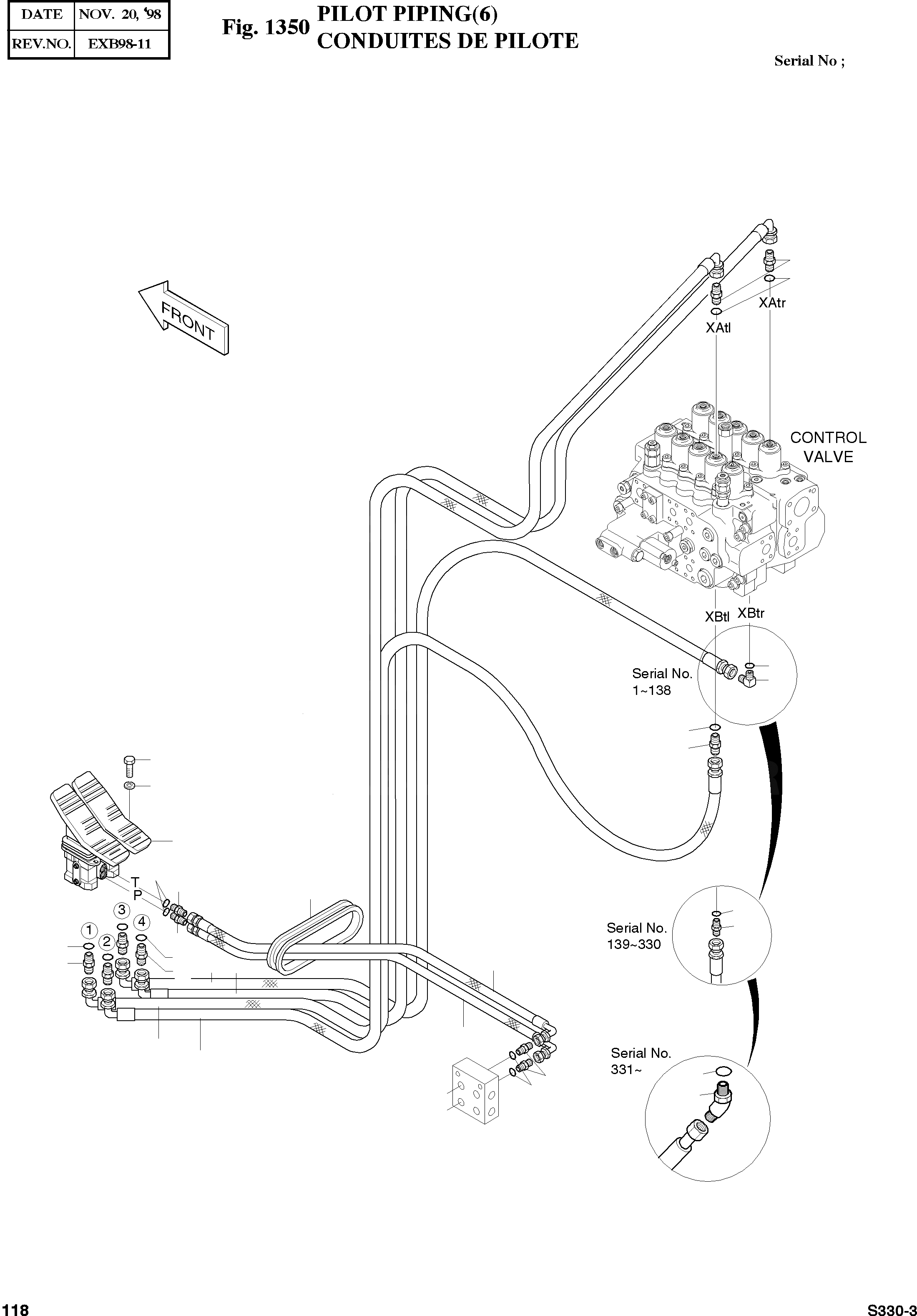

Запчасти Doosan Daewoo PILOT PIPING(6) BODY PARTS

-

2400-1693

PIPING;PILOT

desc: CONDUITES DE PILOTE

-2шт.

5

2420-9292

VALVE;PEDAL

desc: VANNE DE COMMANDE A DISTANCE

1шт.

6

S0512053

BOLT M10X1.5X25

desc: BOULON A 6 PANS

4шт.

7

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

4шт.

11

2160-1201D1

BUSHING;RUBBER

desc: COUSSINET

1шт.

32

S8000111

O-RING P11

REP_PNO: 8202-009

12шт.

33

2181-1126D14

ADAPTER PF(0)1/4XPF1/4

SERIAL: 1-138

10шт.

33

2181-1126D14

ADAPTER PF(0)1/4XPF1/4

SERIAL: 139-330

11шт.

33

2181-1126D14

ADAPTER PF(0)1/4XPF1/4

SERIAL: 331

10шт.

44

2471-1133

ADAPTER;FILTER PF(0)1/4XPF1/4

desc: RACCORD

1шт.

47

2181-1702D4

ELBOW PF(0)1/4XPF1/4

SERIAL: 1-138

1шт.

53

2184-1046D52

HOSE PF1/4-1100L

desc: TUYAU FLEXIBLE

2шт.

91

2184-1046D216

HOSE PF1/4-3000L

desc: TUYAU FLEXIBLE

1шт.

92

2184-1046D78

HOSE PF1/4-3200L

desc: TUYAU FLEXIBLE

1шт.

93

2184-1061D123

HOSE PF1/4-3400L

desc: TUYAU FLEXIBLE

1шт.

94

2184-1061D125

HOSE PF1/4-3600L

desc: TUYAU FLEXIBLE

1шт.

118

2181-2419D1

ELBOW PFO1/4-PF1/4

SERIAL: 331

1шт.
