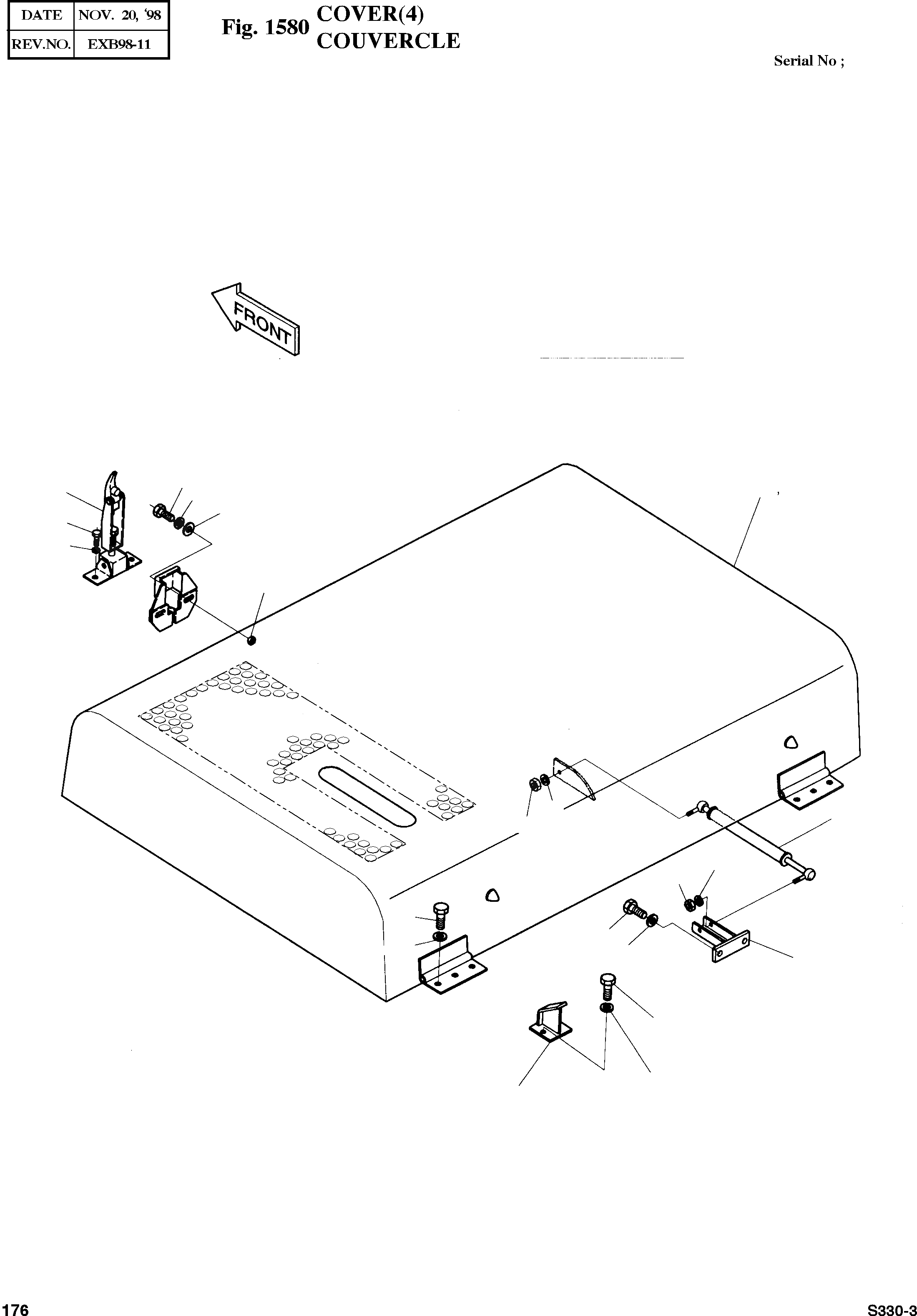

Запчасти Doosan Daewoo COVER(4) BODY PARTS

-

2621-3169

COVER ASS'Y

desc: ENSEMBLE CAPOT

1шт.

3

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

4шт.

13

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

12шт.

20

2621-3168A

COVER;ENGINE

SERIAL: 1-240

1шт.

20

2621-3168B

COVER;ENGINE

SERIAL: 241-419

1шт.

20

2621-3168C

COVER;ENGINE

SERIAL: 420

1шт.

20A

1.162-00001

RUBBER;CUSHION

desc: . CAOUTCHOUC

1шт.

24

S5102703

WASHER;SPRING M12

desc: RONDELLE ELASTIQUE

8шт.

25

S0508653

BOLT M8X1.25X16

desc: BOULON A 6 PANS

4шт.

26

S5010513

WASHER;PLAIN M8

desc: RONDELLE PLATE

4шт.

28

S0515053

BOLT M12X1.75X25

desc: BOULON A 6 PANS

8шт.

29

2195-3324A

BRACKET

desc: SUPPORT

1шт.

30

2440-9141

SPRING;GAS

desc: VERIN PNEUMATIQUE

2шт.

31

S4012533

NUT M8X1.25

desc: ECROU

8шт.

32

2125-9025

CATCH

desc: LOQUET

2шт.

33

S0508853

BOLT M8X1.25X20

desc: BOULON A 6 PANS

4шт.

34

2195-4791

BRACKET

desc: SUPPORT

2шт.

35

S0511653

BOLT M10X1.5X16

desc: BOULON A 6 PANS

4шт.
