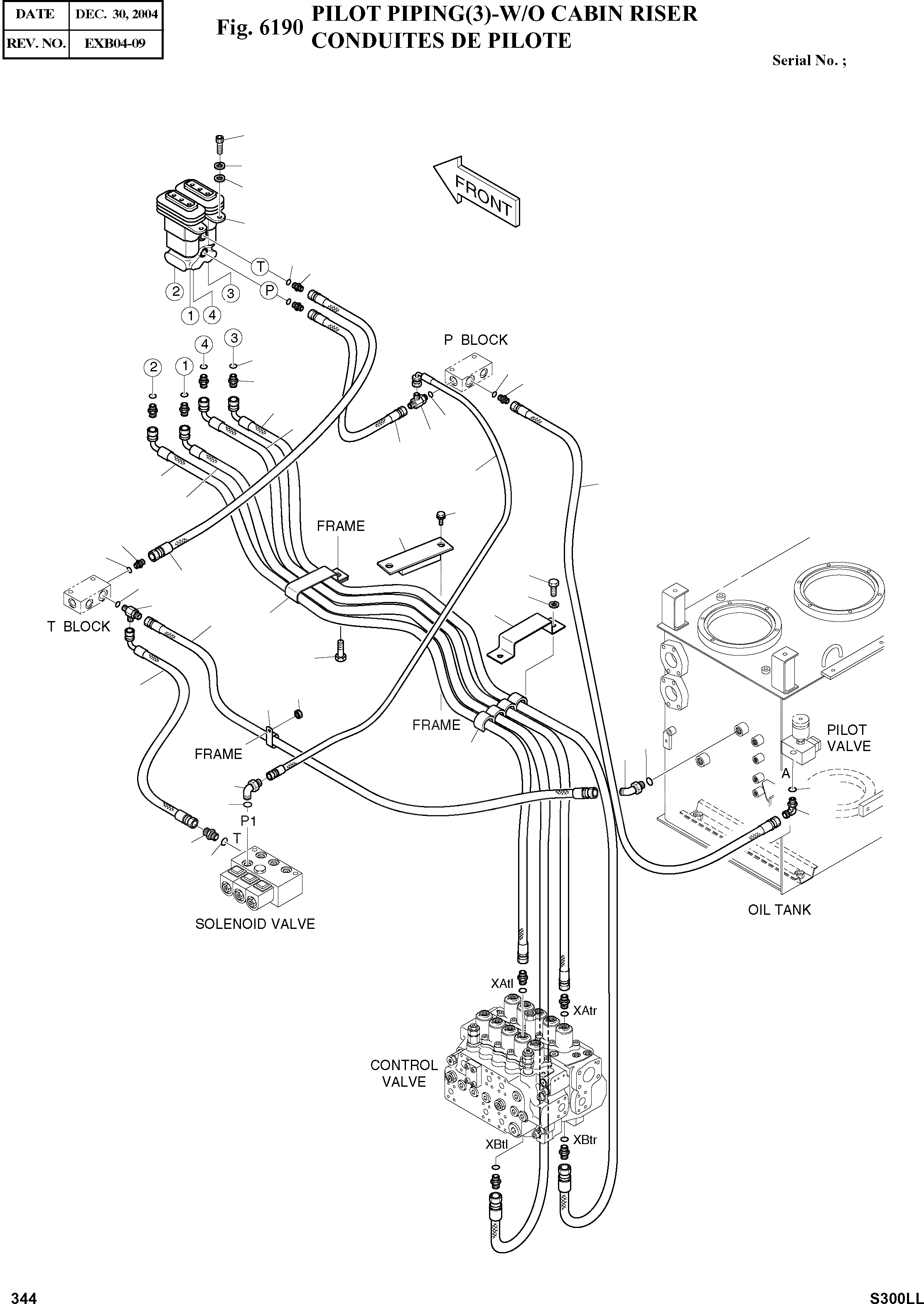

Запчасти Doosan Daewoo PILOT PIPING(3)-W/O CABIN RISER OPTION PARTS

-

K1002404

PILOT PIPING;JOINT

SC: D

-2шт.

8

420-00030

VALVE;PEDAL

desc: VANNE

1шт.

9

S2212266

BOLT;SOCKET M10X1.5X30

desc: BOULON A 6 PANS CREUX

4шт.

10

S5110603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

4шт.

11

S8000111

O-RING P11

desc: JOINT TORIQUE

7шт.

12

S8000141

O-RING P14

desc: JOINT TORIQUE

3шт.

13

S8000181

O-RING P18

desc: JOINT TORIQUE

4шт.

14

2181-1126D89

ADAPTER PFO1/4XPF3/8

desc: RACCORD

4шт.

16

2471-1135

FILTER;ADAPTER

desc: FILTRE

1шт.

17

2181-1126D36

ADAPTER PFO3/8XPF1/4

desc: RACCORD

1шт.

19

2181-1126D7

ADAPTER PFO3/8XPF3/8

desc: RACCORD

1шт.

20

2181-1951D13

TEE PFO1/2XPF1/2XPF3/8

desc: TE

1шт.

21

2181-1126D14

ADAPTER PFO1/4XPF1/4

desc: RACCORD ADAPTATEUR

2шт.

22

120-00276

BOLT

desc: BOULON A 6 PANS

3шт.

23

124-00226A

CLAMP;HOSE

desc: ATTACHE DE TUYAU

1шт.

24

2181-2419D3

ELBOW PFO1/2XPF1/2

desc: COUDE

1шт.

25

124-00209D6

CLIP

desc: ATTACHE

1шт.

26

2181-1951D7

TEE PFO3/8XPF1/4

desc: TE

1шт.

27

S5010613

WASHER;PLAIN M10

desc: RONDELLE

4шт.

28

2181-1702D4

ELBOW PFO1/4XPF1/4

desc: COUDE

1шт.

29

2181-1702D33

ELBOW PFO1/2XPF1/2

desc: COUDE

1шт.

30

2124-1594A

CLAMP;PLASTIC

desc: ATTACHE DE TUYAU

1шт.

31

2124-1595A

CLAMP;STEEL

desc: ATTACHE DE TUYAU

1шт.

32

S0508553

BOLT M8X1.25X14

desc: BOULON A 6 PANS

2шт.

33

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

2шт.

34

2124-1027D10

CLIP

desc: ATTACHE

6шт.

35

S4012533

NUT

desc: ECROU

6шт.

48

2184-1046D264

HOSE PF3/8-3500L

desc: TUYAU FLEXIBLE

1шт.

49

2184-1046D264

HOSE PF3/8-3500L

desc: TUYAU FLEXIBLE

1шт.

50

2184-1046D264

HOSE PF3/8-3500L

desc: TUYAU FLEXIBLE

1шт.

51

2184-1046D243

HOSE PF3/8-3600L

desc: TUYAU FLEXIBLE

1шт.

52

2184-1045D42

HOSE PF1/4-420L

desc: TUYAU FLEXIBLE

1шт.

53

2184-1045D42

HOSE PF1/4-420L

desc: TUYAU FLEXIBLE

1шт.

54

2184-1046D117

HOSE PF1/4-1700L

desc: TUYAU FLEXIBLE

1шт.

55

2184-1036D113

HOSE PF3/8-1730L

desc: TUYAU FLEXIBLE

1шт.

56

2184-1026D298

HOSE PF1/2-4000L

desc: TUYAU FLEXIBLE

1шт.

57

2184-1026D383

HOSE PF1/2-3600L

desc: TUYAU FLEXIBLE

1шт.
