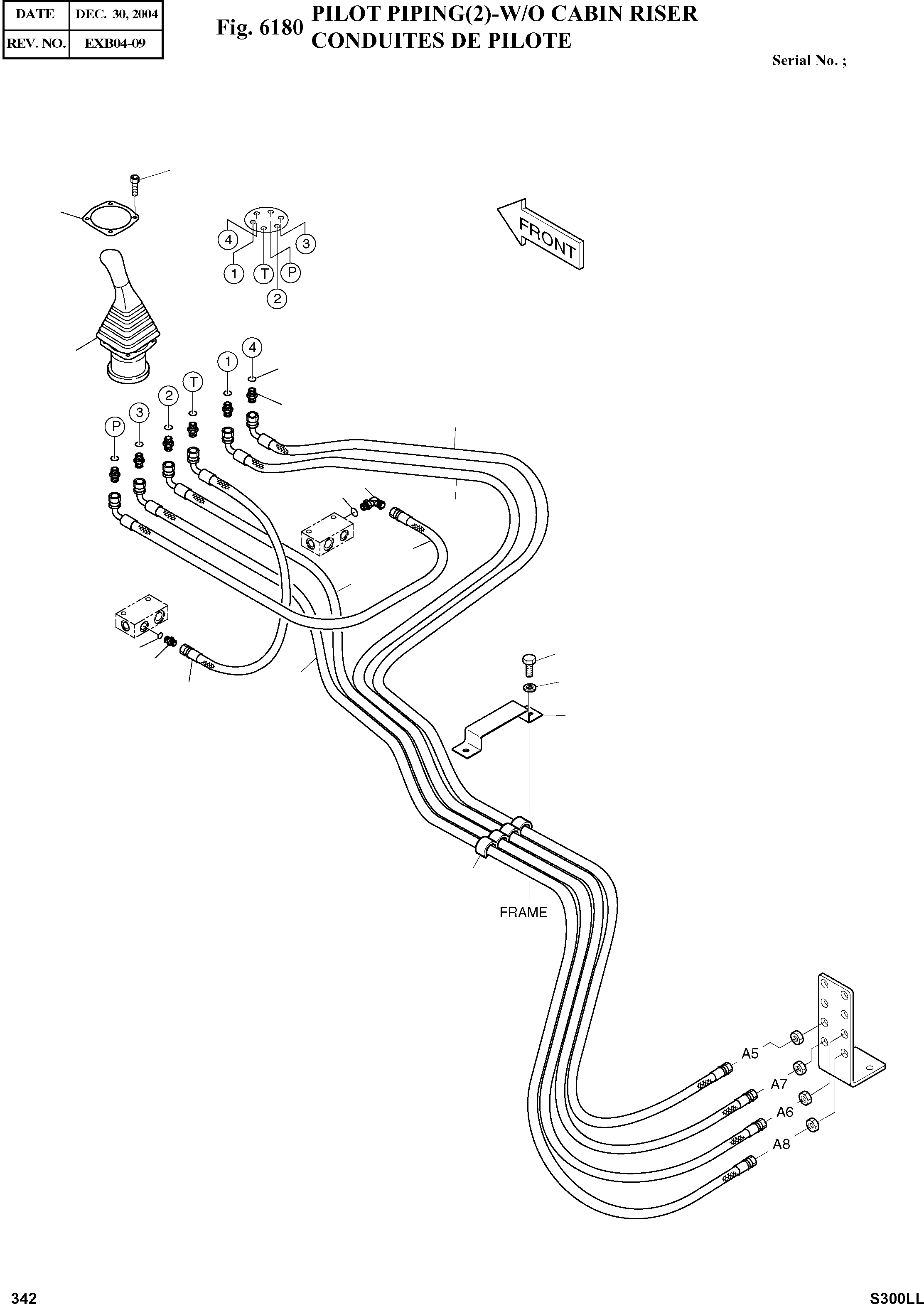

Запчасти Doosan Daewoo PILOT PIPING(2)-W/O CABIN RISER OPTION PARTS

-

K1002404

PILOT PIPING;JOINT

SC: D

-2шт.

2

420-00015A

REMOTE CONTROL V/V(RH)

desc: VANNE

1шт.

3

S2205066

BOLT M6X1.0X25

desc: BOULON A 6 PANS

4шт.

4

2621-2752

PLATE

desc: PLAQUE CAOUTCHOUC

1шт.

11

S8000111

O-RING P11

desc: JOINT TORIQUE

6шт.

12

S8000141

O-RING P14

desc: JOINT TORIQUE

2шт.

14

2181-1126D89

ADAPTER PFO1/4XPF3/8

desc: RACCORD

6шт.

18

2181-1702D5

ELBOW PFO3/8XPF3/8

desc: COUDE EN S

1шт.

19

2181-1126D7

ADAPTER PFO3/8XPF3/8

desc: RACCORD

1шт.

30

2124-1594A

CLAMP;PLASTIC

desc: ATTACHE DE TUYAU

1шт.

31

2124-1595A

CLAMP;STEEL

desc: ATTACHE DE TUYAU

1шт.

32

S0508553

BOLT M8X1.25X14

desc: BOULON A 6 PANS

2шт.

33

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

2шт.

42

2184-1060D152

HOSE PF3/8-2700L

desc: TUYAU FLEXIBLE

1шт.

43

2184-1060D152

HOSE PF3/8-2700L

desc: TUYAU FLEXIBLE

1шт.

44

2184-1060D152

HOSE PF3/8-2700L

desc: TUYAU FLEXIBLE

1шт.

45

2184-1060D152

HOSE PF3/8-2700L

desc: TUYAU FLEXIBLE

1шт.

46

2184-1060D151

HOSE PF3/8-1950L

desc: TUYAU FLEXIBLE

1шт.

47

2184-1060D151

HOSE PF3/8-1950L

desc: TUYAU FLEXIBLE

1шт.
