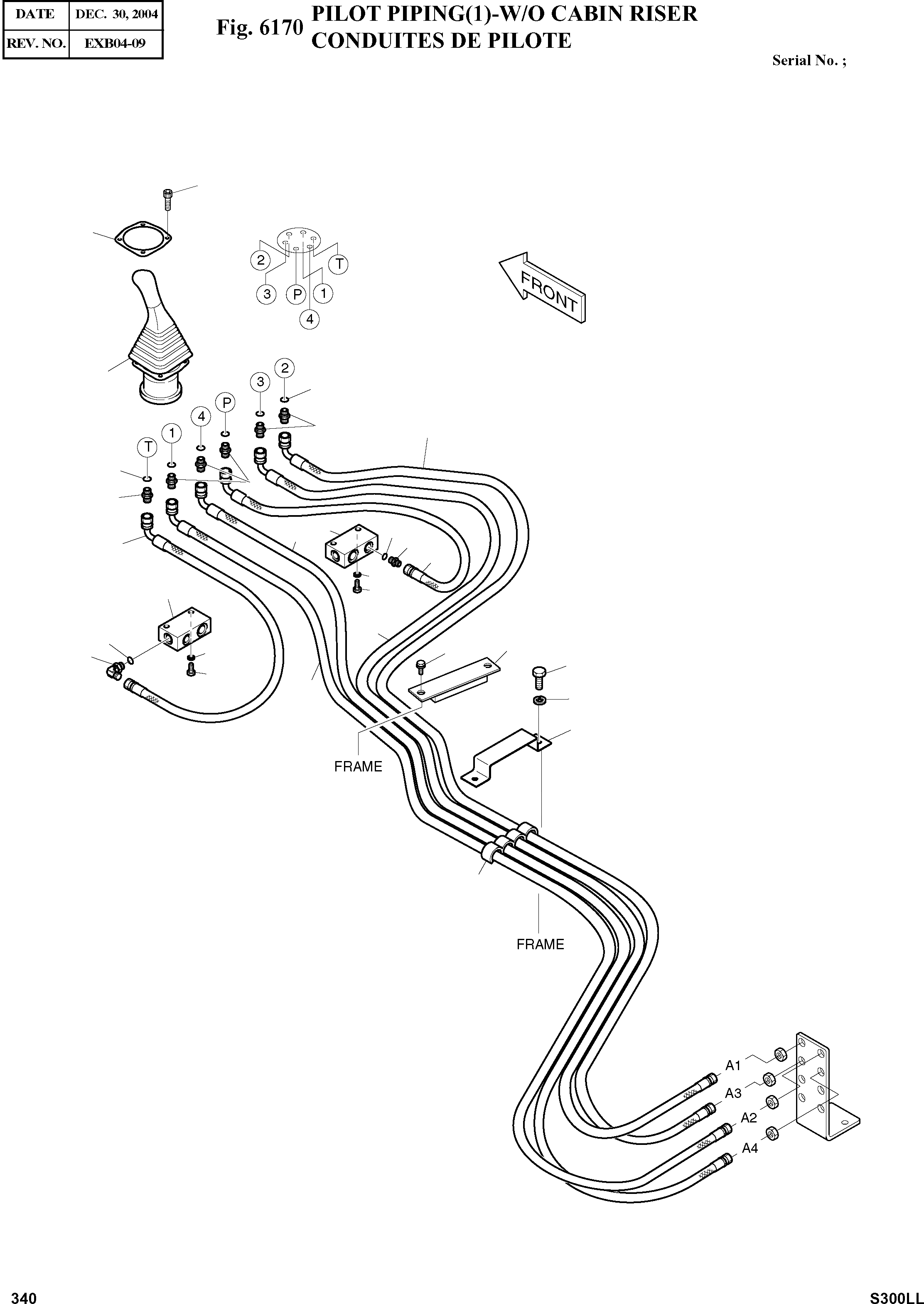

Запчасти Doosan Daewoo PILOT PIPING(1)-W/O CABIN RISER OPTION PARTS

-

K1002404

PILOT PIPING;JOINT

SC: D

-2шт.

1

420-00014A

REMOTE CONTROL V/V(LH)

desc: VANNE

1шт.

3

S2205066

BOLT M6X1.0X25

desc: BOULON A 6 PANS

4шт.

4

2621-2752

PLATE

desc: PLAQUE CAOUTCHOUC

1шт.

5

2423-1470

BLOCK

desc: BLOC

2шт.

6

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

4шт.

7

S0558653

BOLT M10X1.5X55

desc: BOULON A 6 PANS

4шт.

11

S8000111

O-RING P11

desc: JOINT TORIQUE

6шт.

12

S8000141

O-RING P14

desc: JOINT TORIQUE

2шт.

14

2181-1126D89

ADAPTER PFO1/4XPF3/8

desc: RACCORD

3шт.

15

2181-1126D120

ADAPTER PFO1/4XPF3/8

desc: RACCORD ADAPTATEUR

3шт.

18

2181-1702D5

ELBOW PFO3/8XPF3/8

desc: COUDE EN S

1шт.

19

2181-1126D7

ADAPTER PFO3/8XPF3/8

desc: RACCORD

1шт.

22

120-00276

BOLT

desc: BOULON A 6 PANS

2шт.

23

124-00226A

CLAMP;HOSE

desc: ATTACHE DE TUYAU

1шт.

30

2124-1594A

CLAMP;PLASTIC

desc: ATTACHE DE TUYAU

1шт.

31

2124-1595A

CLAMP;STEEL

desc: ATTACHE DE TUYAU

1шт.

32

S0508553

BOLT M8X1.25X14

desc: BOULON A 6 PANS

2шт.

33

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

2шт.

36

2184-1267D11

HOSE PF3/8-2900L

desc: TUYAU FLEXIBLE

1шт.

37

2184-1267D11

HOSE PF3/8-2900L

desc: TUYAU FLEXIBLE

1шт.

38

2184-1267D11

HOSE PF3/8-2900L

desc: TUYAU FLEXIBLE

1шт.

39

2184-1267D11

HOSE PF3/8-2900L

desc: TUYAU FLEXIBLE

1шт.

40

2184-1267D9

HOSE PF3/8-1950L

desc: TUYAU FLEXIBLE

1шт.

41

2184-1267D10

HOSE PF3/8-2050L

desc: TUYAU FLEXIBLE

1шт.
