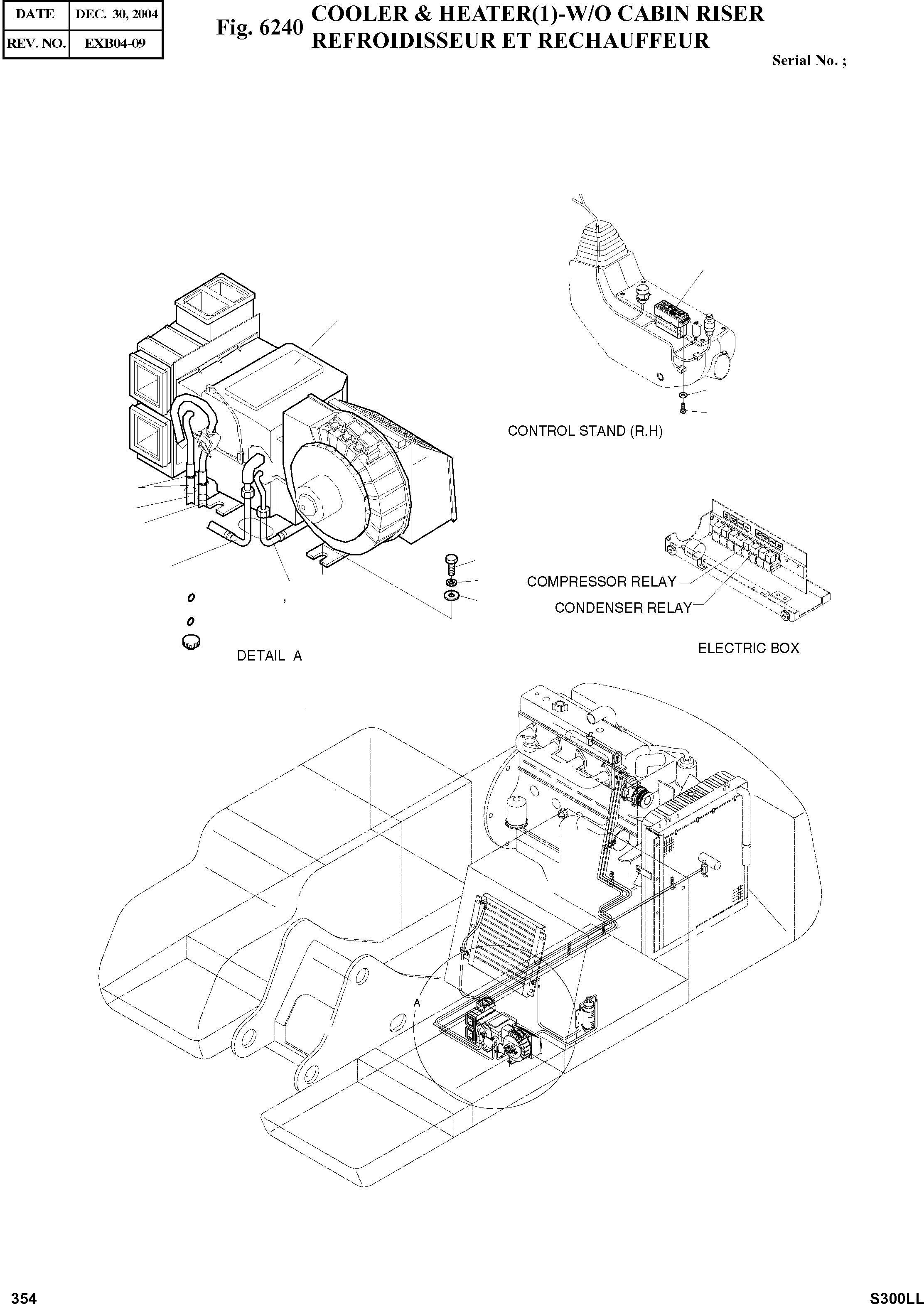

Запчасти Doosan Daewoo COOLER & HEATER(1)-W/O CABIN RISER OPTION PARTS

-

K1002027

COOLER ASS'Y(1)-CABIN PART

SC: D

-2шт.

1

543-00049

PANEL;AIRCON CONTROL

desc: PANNEAU

1шт.

2

S3450583

SCREW M4X0.7X12

desc: VIS

4шт.

3

S5000113

WASHER;PLAIN

desc: RONDELLE

4шт.

4

2185-1698D1

HOSE;LIQUID(2)

desc: TUYAU FLEXIBLE

1шт.

4A

2180-6090

O-RING

desc: . JOINT TORIQUE

2шт.

5

2185-1699

HOSE;SUCTION

desc: TUYAU FLEXIBLE

1шт.

5A

2180-6086

O-RING(COMP)

desc: . JOINT TORIQUE

1шт.

5B

2180-6087

O-RING(EVA)

desc: . JOINT TORIQUE

1шт.

5C

1.161-00019

CAP;CHECK PORT(L)

desc: . CHAPEAU

1шт.

6

920-00020B

UNIT;AIRCON

desc: CLE A MOLETTE

1шт.

7

S0509053

BOLT M8X1.25X25

desc: BOULON A 6 PANS

6шт.

8

S5102503

WASHER;SPRING

desc: RONDELLE ELASTIQUE

6шт.

9

2114-1058D29

WASHER

desc: RONDELLE

6шт.

10

2185-1308D7

HOSE;RUBBER 4000L

desc: TUYAU FLEXIBLE

1шт.

11

2185-1308D4

HOSE;RUBBER 2800L

desc: TUYAU FLEXIBLE

1шт.

12

S8450016

CLAMP;HOSE

desc: COLLIER

2шт.
