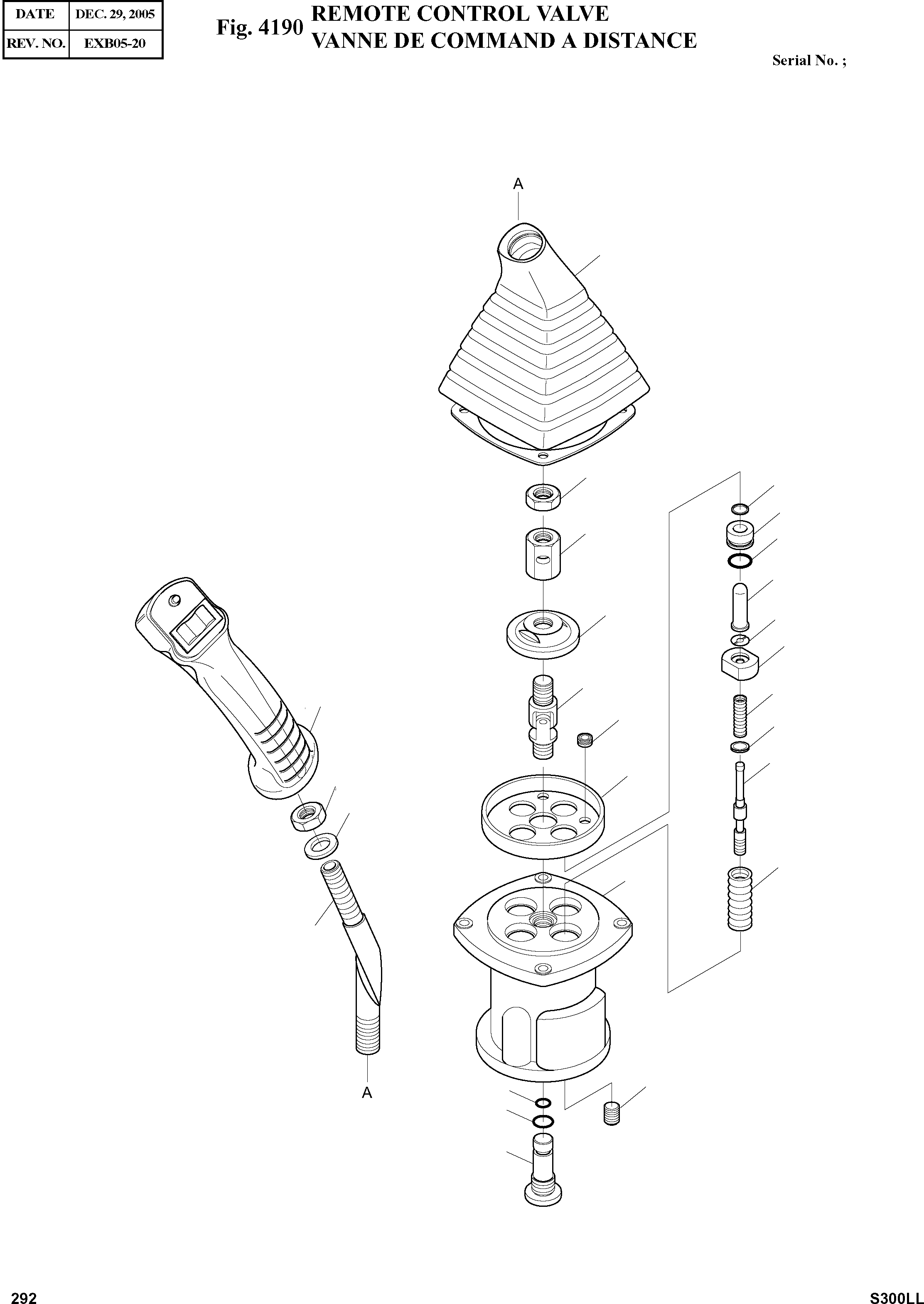

Запчасти Doosan Daewoo REMOTE CONTROL VALVE PILOT PIPING(1)-JOINT

-

420-00014A

REMOTE CONTROL V/V(L.H)

desc: VANNE DE COMMAND A DISTANCE

1шт.

-

420-00015A

REMOTE CONTROL V/V(R.H)

desc: VANNE DE COMMAND A DISTANCE

1шт.

1

J95C1001

CASE

desc: CARTER

1шт.

2

WPT18

PLUG PT1/8

desc: BOUCHON

4шт.

3

J95C1002

PLUG PT3/8

desc: BOUCHON

1шт.

4

P0014

O-RING P14

desc: JOINT TORIQUE

1шт.

5

J95C1003

SPOOL

desc: BOBINE

4шт.

6

J95C1004

SHIM

SC: R

2шт.

7

J96E2002

SPRING

desc: RESSORT

4шт.

8

J95C1006

SEAT;SPRING

desc: SIEGE

4шт.

9

J24D2011

STOPPER

desc: ARRET

4шт.

10

J95C1007

SPRING

desc: RESSORT

4шт.

11

J95C1008

PLUG

desc: BOUCHON

4шт.

12

RSY10

SEAL;ROD

desc: JOINT D'HUILE

4шт.

13

P0020

O-RING

desc: JOINT TORIQUE

4шт.

14

J95C1009

ROD;PUSH

desc: TIGE DE POUSSOIR

4шт.

15

J95C1010

PLATE

desc: PLAQUE

1шт.

16

J95C1011

BUSHING

desc: DOUILLE

1шт.

17

J95C1012

JOINT ASS'Y

desc: ENSEMBLE DE JOINT

1шт.

18

J95C1013

PLATE;SWASH

desc: PLAQUE

1шт.

19

J95C1014

NUT

desc: ECROU

1шт.

20

HNM14-1

NUT

desc: ECROU

1шт.

21

P0010A

O-RING

desc: JOINT TORIQUE

1шт.

22

132-00019

GRIP

desc: POIGNEE

1шт.

23

2160-1303

BOOT(L.H.)

desc: GAINE DE PROTECTION

1шт.

23

2160-1302

BOOT(R.H.)

desc: GAINE DE PROTECTION

1шт.

24

731-00002

BAR;HANDLE

desc: BARRE DE POIGNER

1шт.

25

S4032833

NUT

desc: ECROU

1шт.

26

S5010803

WASHER;PLAIN

desc: RONDELLE PLATE

1шт.
