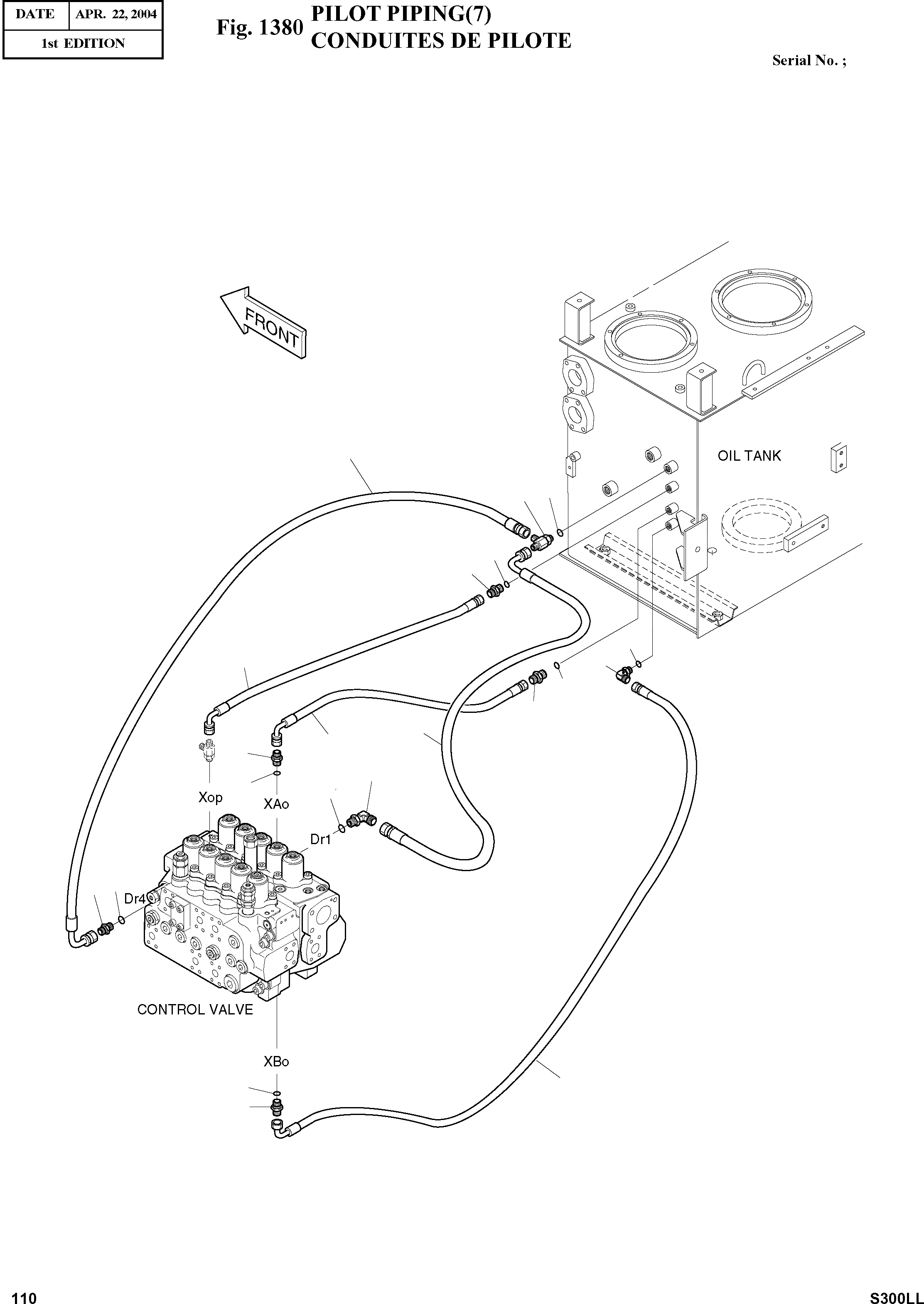

Запчасти Doosan Daewoo PILOT PIPING(7) BODY PARTS

-

400-01459

PILOT PIPING

SC: D

-2шт.

17

2181-1951D6

TEE PF(O)3/8XPF3/8XPF1/4

desc: TE

1шт.

25

S8000141

O-RING P14

desc: JOINT TORIQUE

3шт.

26

S8000111

O-RING P11

desc: JOINT TORIQUE

5шт.

27

2181-1126D14

ADAPTER PF(O)1/4XPF1/4

desc: RACCORD ADAPTATEUR

3шт.

30

2181-1126D36

ADAPTER PF(O)3/8XPF1/4

desc: RACCORD

2шт.

32

2181-1702D4

ELBOW PF(O)1/4XPF1/4

desc: COUDE

1шт.

33

2181-1702D3

ELBOW PF(O)1/4XPF3/8

desc: COUDE

1шт.

52

2184-1046D94

HOSE PF1/4-780L

desc: TUYAU FLEXIBLE

1шт.

56

2184-1046D132

HOSE PF1/4-590L

desc: TUYAU FLEXIBLE

1шт.

57

2184-1046D206

HOSE PF1/4-550L

desc: TUYAU FLEXIBLE

1шт.

59

2184-1026D206

HOSE PF3/8-480L

desc: TUYAU FLEXIBLE

1шт.

68

2184-1046D143

HOSE PF1/4-1150L

desc: TUYAU FLEXIBLE

1шт.
