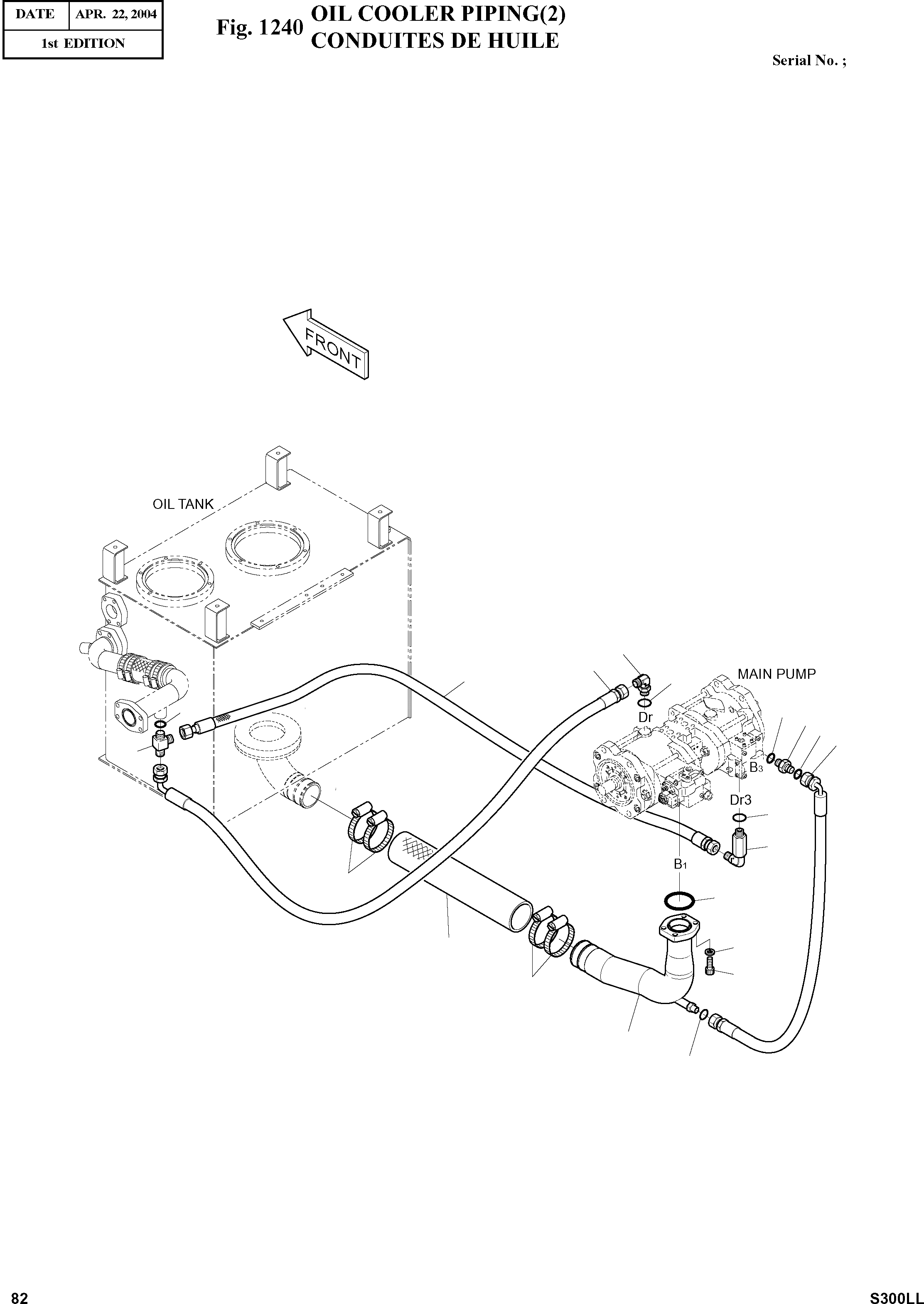

Запчасти Doosan Daewoo OIL COOLER PIPING(2) BODY PARTS

-

400-01469

OIL COOLER PIPING

SC: D

-2шт.

1

140-01598

PIPE;SUCTION

desc: TUYAU

1шт.

9

2181-2294D2

ELBOW

desc: ECROU

1шт.

10

2185-1737D9

HOSE

desc: TUYAU FLEXIBLE

1шт.

11

2184-1212D11

HOSE

desc: TUYAU FLEXIBLE

1шт.

15

2184-1197D39

HOSE UNF1 3/16-1250L

desc: TUYAU FLEXIBLE

1шт.

20

2180-1026D31

O-RING

desc: JOINT TORIQUE

1шт.

24

S5110703

WASHER;SPRING

desc: RONDELLE ELASTIQUE

4шт.

25

S2215466

BOLT;SOCKET

desc: BOULON A 6 PANS CREUX

4шт.

27

S8000231

O-RING

desc: JOINT TORIQUE

1шт.

28

S8030121

O-RING

desc: JOINT TORIQUE

4шт.

29

2181-4133D5

ADAPTER

desc: RACCORD ADAPTATEUR

1шт.

30

DS2364004

TEE

desc: TE

1шт.

45

S8470112

CLAMP;HOSE

desc: COLLIER

4шт.

47

S8000141

O-RING

desc: JOINT TORIQUE

2шт.

48

2181-1702D36

ELBOW;LONG

desc: ECROU

1шт.

49

S8000241

O-RING

desc: JOINT TORIQUE

2шт.

51

2184-1026D407

HOSE PF1/2-1600L

desc: TUYAU FLEXIBLE

1шт.
