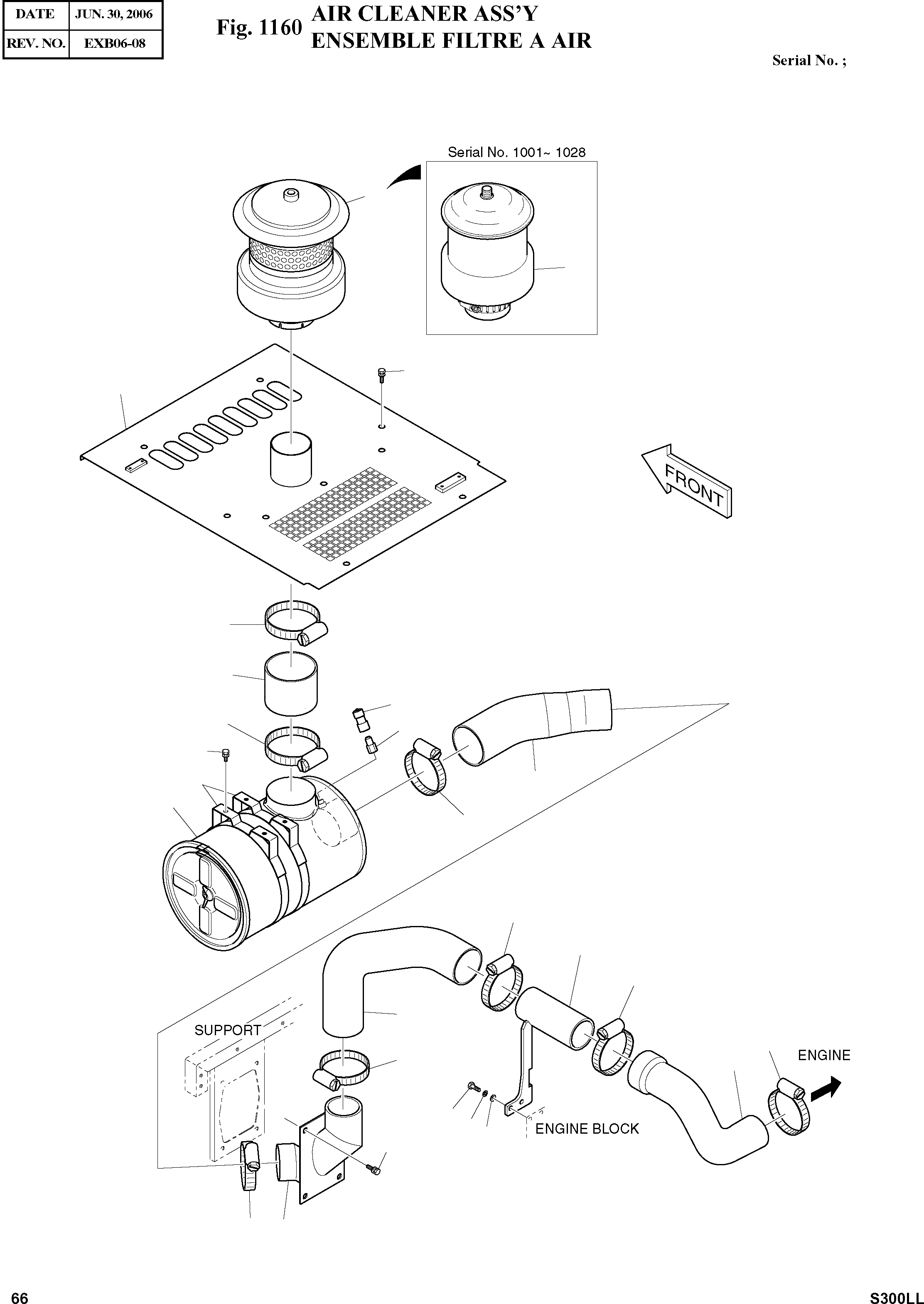

Запчасти Doosan Daewoo AIR CLEANER ASSY BODY PARTS

-

204-00088A

AIR CLEANER ASS'Y

SC: D

-2шт.

1

2204-2012A

CLEANER;AIR

desc: FILTRE A AIR

1шт.

2

2124-1552A

BAND;AIR CLEANER

desc: ATTACHE DE TUYAU

2шт.

3

2120-2196D2

BOLT;SET M10X1.5X25

desc: BOULON A 6 PANS

4шт.

4

2204-9032A

PRE-CLEANER

SERIAL: 1001-1010

1шт.

4

2204-9032

PRE-CLEANER

SERIAL: 1011-1028

1шт.

4

K1017883

PRE-CLEANER

SERIAL: 1029

1шт.

5

185-00235

HOSE;AIR

desc: TUYAU FLEXIBLE

1шт.

6

193-00808

PIPE;AIR

desc: CONDUITE

1шт.

7

185-00236

HOSE;AIR

desc: TUYAU FLEXIBLE

1шт.

8

193-00809

PIPE;AIR

desc: CONDUITE

1шт.

9

2185-1658

HOSE;AIR

desc: TUYAU FLEXIBLE

1шт.

10

621-03010A

COVER

SERIAL: 1001-1021

1шт.

10

621-03010B

COVER

SERIAL: 1022

1шт.

11

170-00004

INDICATOR

desc: INDICATEUR

1шт.

12

2181-2690

ADAPTER;FILTER

desc: RACCORD ADAPTEUR

1шт.

13

2185-1792A

HOSE;AIR

desc: TUYAU FLEXIBLE

1шт.

14

S8510143

CLAMP;HOSE

desc: COLLIER

5шт.

15

S8510092

CLAMP;HOSE

desc: COLLIER

1шт.

16

S8510168

CLAMP;HOSE

desc: COLLIER

2шт.

17

S0512053

BOLT M10X1.5X25

desc: BOULON A 6 PANS

2шт.

18

S5010613

WASHER;PLAIN

desc: RONDELLE PLATE

2шт.

19

S5102603

WASHER;SPRING

desc: RONDELLE ELASTIQUE

2шт.

20

2120-2196D7

BOLT;SET M12X1.75X30

desc: BOULON A 6 PANS

13шт.
