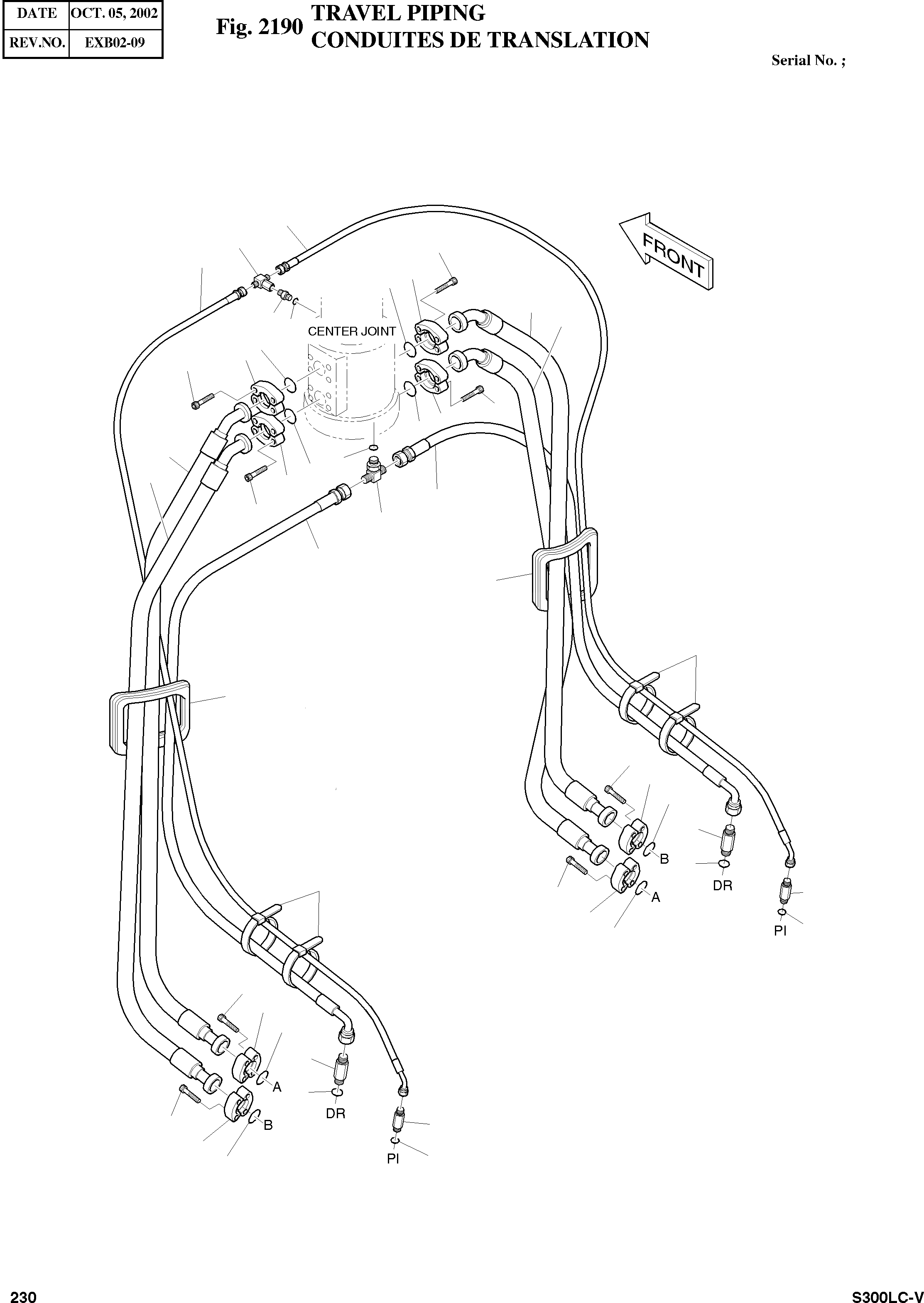

Запчасти Doosan Daewoo TRAVEL PIPING TRACK PARTS

-

400-00666

TRAVEL PIPING ASS'Y

SC: D

-2шт.

1

DS2039055

HOSE

desc: TUYAU FLEXIBLE

2шт.

2

DS2039069

HOSE

desc: TUYAU FLEXIBLE

2шт.

3

S2215366

BOLT;SOCKET M12X1.75X35

SERIAL: 1001-1019

32шт.

3

S2215466

BOLT;SOCKET M12X1.75X40

SERIAL: 1020

32шт.

4

2180-1026D19

O-RING

desc: JOINT TORIQUE

8шт.

5

2181-9081

FLANGE;SPLIT

desc: BRIDE

16шт.

6

2184-1036D257

HOSE PF1/2-2700L

desc: TUYAU FLEXIBLE

2шт.

7

2184-1060D57

HOSE PF1/4-3100L

desc: TUYAU FLEXIBLE

2шт.

8

2124-1084D1

CLIP;BAND

desc: ATTACHE

20шт.

9

2181-1126D14

ADAPTER;S

desc: RACCORD ADAPTEUR

1шт.

10

S8000111

O-RING

desc: JOINT TORIQUE

3шт.

11

2181-1126D83

ADAPTER

desc: RACCORD ADAPTEUR

2шт.

12

S8000181

O-RING

desc: JOINT TORIQUE

3шт.

13

2181-2281D10

TEE

desc: TE

1шт.

14

2181-4125

TEE

desc: TE

1шт.

15

2160-4003

BUSHING;RUBBER

desc: GARNISSAGE CAOUTCHOUC

2шт.

16

2181-1126D34

ADAPTER

desc: RACCORD ADAPTEUR

2шт.
