Запчасти Doosan Daewoo BOOM PIPING-BOOM 6.245M (PE3C) OPTION PARTS

-

K1004494

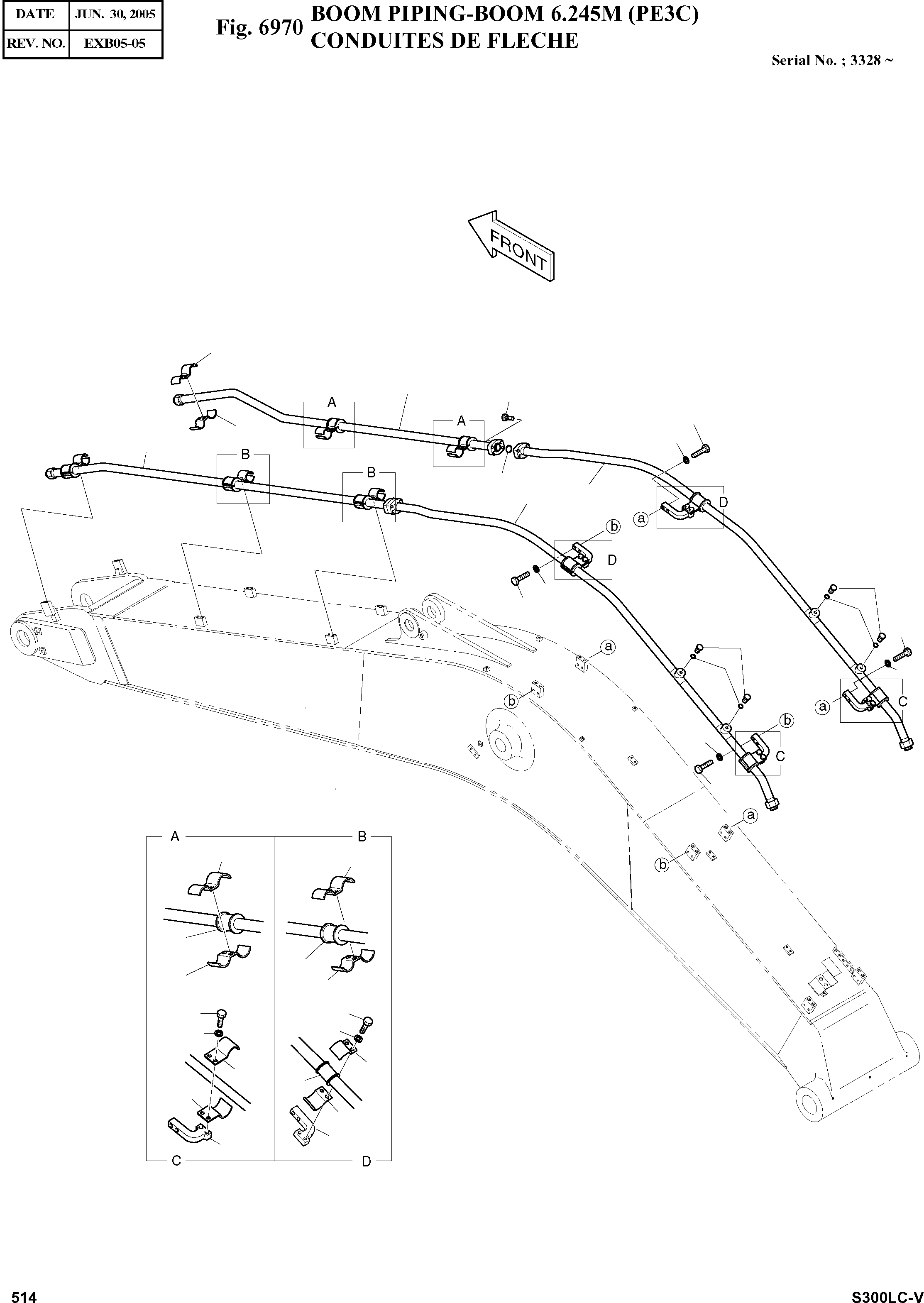

BOOM PIPING-BOOM 6.245m (PE3C)

SERIAL: 3328

-2шт.

1

140-01128A

PIPE

desc: TUYAU

1шт.

2

140-01129A

PIPE

desc: TUYAU

1шт.

3

140-01130

PIPE

desc: TUYAU

1шт.

4

2180-1026D23

O-RING

desc: JONT TORIQUE

2шт.

5

S8000291

O-RING

desc: JONT TORIQUE

4шт.

6

2181-1950D9

PLUG

desc: BOUCHON

4шт.

7

S2218666

BOLT;SOCKET M14X2.0X50

desc: BOULON A 6PANS

8шт.

8

S0562766

BOLT M14X2.0X40

desc: BOULON A 6PANS

8шт.

9

S0563166

BOLT M14X2.0X60

desc: BOULON A 6PANS

8шт.

10

S5102803

WASHER;SPRING

desc: RONDELLE ELASTIQUE

16шт.

11

124-00219

CLAMP;PIPE

desc: ATTACHE DE TUBE

4шт.

12

161-00280

RUBBER

desc: CAOUTCHOUC

6шт.

13

195-01920

BRACKET

desc: SUPPORT

4шт.

14

140-01131

PIPE

desc: TUYAU

1шт.

15

124-00184A

CLAMP;PIPE

desc: ATTACHE DE TUBE

8шт.

16

124-00291

CLAMP;PIPE

desc: ATTACHE DE TUBE

4шт.

17

124-00292

CLAMP;PIPE

desc: ATTACHE DE TUBE

4шт.
