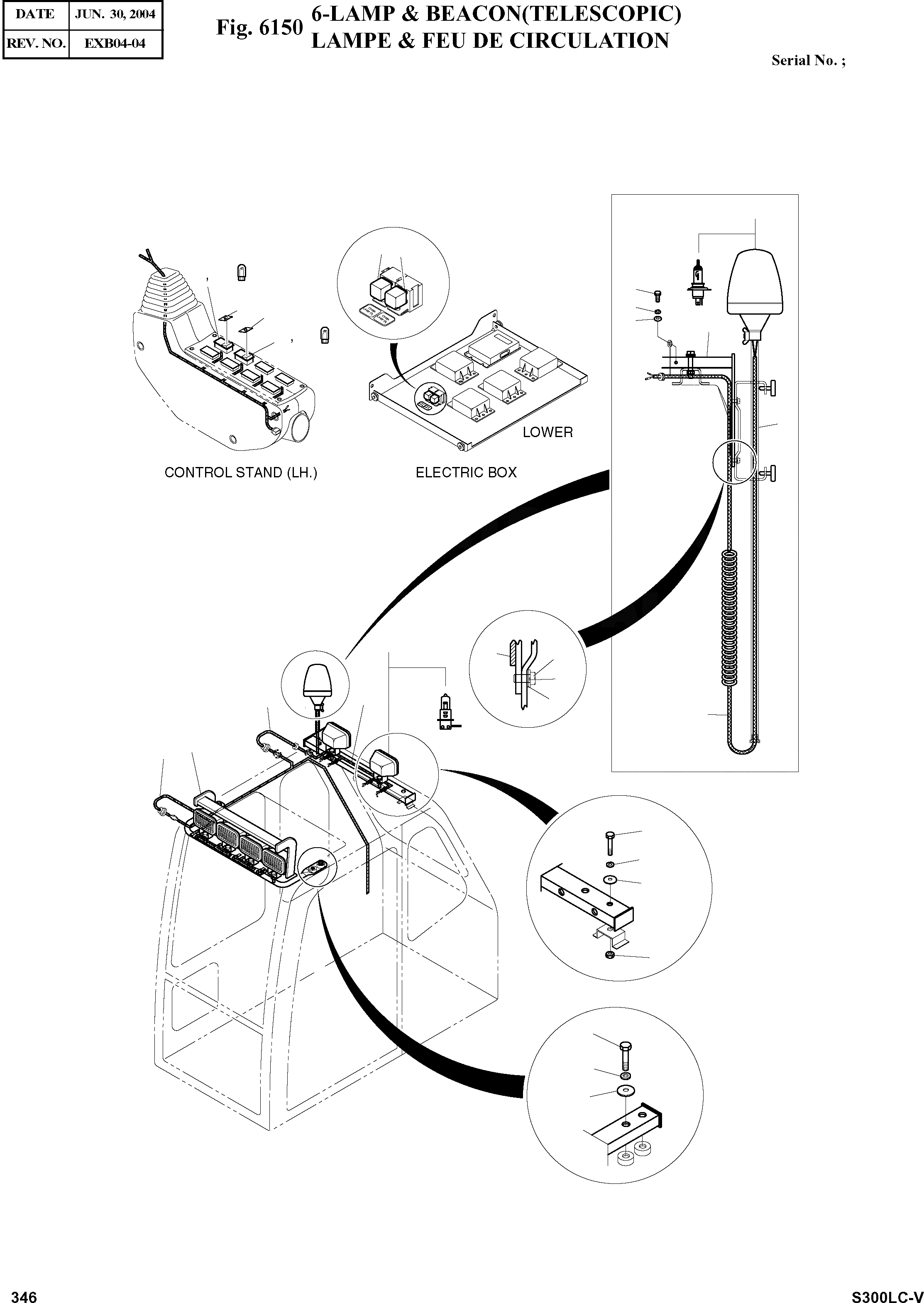

Запчасти Doosan Daewoo 6-LAMP & BEACON(TELESCOPIC) OPTION PARTS

-

534-00066F2

6-LAMP & BEACON(TELESCOPIC)ASS'Y

SC: D

-2шт.

1

2549-9109

SWITCH;CABIN LAMP

desc: INTERRUPTEUR

1шт.

1A

K9000353

LAMP;PILOT

desc: . LAMPE

1шт.

2

2190-2584D14

INSERT;CABIN LAMP

desc: INSERTION

1шт.

3

2549-9098

SWITCH;ROTATING BEACON

desc: INTERRUPTEUR

1шт.

3A

K9000353

LAMP;PILOT

desc: . LAMPE

1шт.

4

2190-2036D10

INSERT;ROTATING BEACON

desc: INSERTION

1шт.

5

2544-9033

RELAY;CABIN LAMP (1) 24V 20/30A

desc: RELAIS AVERTISSEUR

1шт.

6

2544-9033

RELAY;CABIN LAMP (2) 24V 20/30A

desc: RELAIS AVERTISSEUR

1шт.

7

534-00077

LAMP;CABIN 24V 70W

desc: LAMPE

6шт.

7A

2515-1016D4

BULB;HALOGEN H3 24V 70W

desc: . AMPOULE

1шт.

8

195-01693

SUPPORT;FRONT CABIN LAMP

desc: SUPPORT

1шт.

9

2120-2166D2

BOLT M10X1.5X25

desc: BOULON A 6 PANS

4шт.

10

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

4шт.

11

2114-1898D1

WASHER

desc: RONDELLE

4шт.

13

195-01804

SUPPORT;REAR LAMP & BEACON

desc: SUPPORT

1шт.

14

S0556453

BOLT M8X1.25X55

desc: BOULON A 6 PANS

2шт.

15

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

2шт.

16

2114-1898D8

WASHER;PLAIN

desc: RONDELLE PLATE

2шт.

17

S4012533

NUT M8X1.25

desc: ECROU

2шт.

18

534-00062

LAMP;ROTATING BEACON

desc: LAMPE

1шт.

18A

515-00013

BULB;HALOGEN H1 24V 70W

desc: . AMPOULE

1шт.

21

195-01805

SUPPORT;BEACON

desc: SUPPORT

1шт.

22

S0508653

BOLT M8X1.25X16

desc: BOULON A 6 PANS

2шт.

23

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

2шт.

24

S5010513

WASHER;PLAIN M8

desc: RONDELLE PLATE

2шт.

25

161-00404

RUBBER;PLATE

desc: CAOUTCHOUC

1шт.

26

530-00235

HARNESS;FRONT CABIN LAMP

desc: FAISCEAU

1шт.

27

530-00237

HARNESS;REAR CABIN LAMP

desc: FAISCEAU

1шт.

28

530-00248

HARNESS;REAR LAMP JOINT

desc: FAISCEAU

1шт.

30

530-00249

HARNESS;BEACON TELESCOPIC

desc: FAISCEAU

1шт.

31

S0504453

BOLT M6X1.0X12

desc: BOULON A 6 PANS

1шт.

32

S5102303

WASHER;SPRING M6

desc: RONDELLE ELASTIQUE

1шт.

33

S5010313

WASHER;PLAIN M6

desc: RONDELLE PLATE

1шт.
