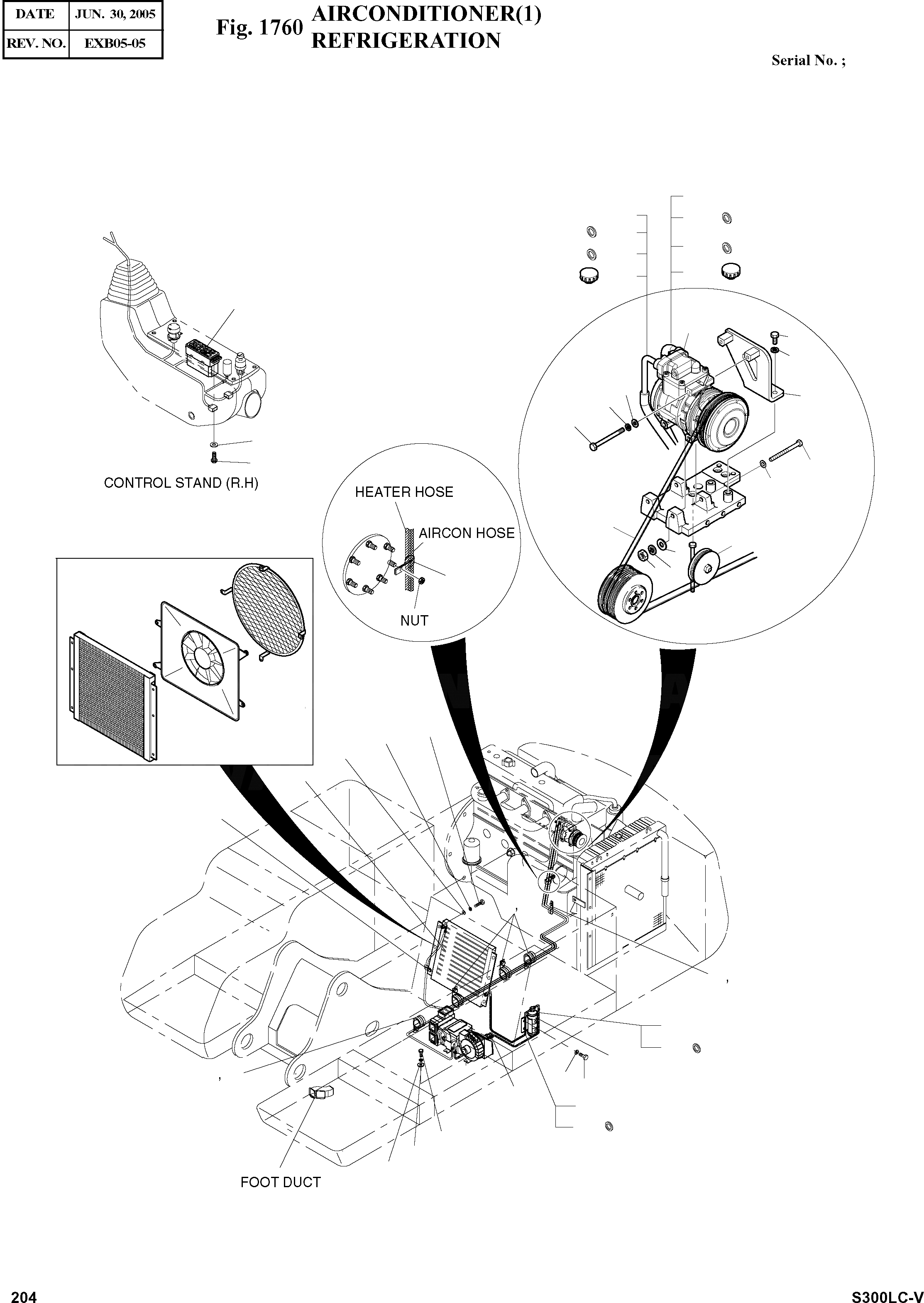

Запчасти Doosan Daewoo AIRCONDITIONER(1) BODY PARTS

-

920-00065

COOLER ASS'Y

SERIAL: 1001-3443

-2шт.

-

920-00065A

COOLER ASS'Y

SERIAL: 3444

-2шт.

1

543-00049

PANEL;AIRCON CONTROL

desc: PANNEAU

1шт.

2

S3450583

SCREW M4X0.7X12

desc: VIS

4шт.

3

S5000113

WASHER;PLAIN M4

desc: RONDELLE PLATE

4шт.

4

2208-6013B

COMPRESSOR 4PK

desc: COMPRESSEUR

1шт.

5

S0557763

BOLT M8X1.25X120

desc: BOULON A 6 PANS

2шт.

6

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

2шт.

7

S5010513

WASHER;PLAIN M8

desc: RONDELLE PLATE

4шт.

8

S4012533

NUT M8X1.25

desc: ECROU

2шт.

9

2107-6004B

PULLEY ASS'Y;IDLE 4PK

desc: POULIE

1шт.

10

2106-1019D2

V-BELT 4PK 1470L

desc: COURROIE

1шт.

11

185-00272

HOSE;DISCHARGE

desc: TUYAU FLEXIBLE

1шт.

11A

2180-6089

O-RING(COND)

desc: . JOINT TORIQUE

1шт.

11B

2180-6088

O-RING(COMP)

desc: . JOINT TORIQUE

1шт.

11C

1.161-00018

CAP;CHECK PORT(H)

desc: . CHAPEAU

1шт.

12

185-00273

HOSE;SUCTION

desc: TUYAU FLEXIBLE

1шт.

12A

2180-6086

O-RING(COMP)

desc: . JOINT TORIQUE

1шт.

12B

2180-6087

O-RING(EVA)

desc: . JOINT TORIQUE

1шт.

12C

1.161-00019

CAP;CHECK PORT(L)

desc: . CHAPEAU

1шт.

13

2520-6004

CONDENSER ASS'Y

desc: ENSEMBLE COMPRESSEUR

1шт.

13A

2520-6005

CORE ASS'Y;CONDENSER

desc: . CONDENSEUR

1шт.

13B

2538-6018

FAN MOTOR ASS'Y 24V

desc: . MOTEUR

1шт.

13C

2520-6006

NET;CONDENSER

desc: . ENSEMBLE COMPRESSEUR

1шт.

14

S0512053

BOLT M10X1.5X25

desc: BOULON A 6 PANS

6шт.

15

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

6шт.

16

S5010613

WASHER;PLAIN M10

desc: RONDELLE PLATE

6шт.

17

2185-1697D1

HOSE;LIQUID (1)

desc: TUYAU FLEXIBLE

1шт.

17A

2180-6090

O-RING

desc: . JOINT TORIQUE

2шт.

18

2185-1698D1

HOSE;LIQUID (2)

desc: TUYAU FLEXIBLE

1шт.

18A

2180-6090

O-RING

desc: . JOINT TORIQUE

2шт.

19

2204-6039A

RECEIVER DRIER

desc: RESERVOIR DESSICATEUR

1шт.

20

S0508653

BOLT M8X1.25X16

desc: BOULON A 6 PANS

2шт.

21

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

2шт.

23

S0509053

BOLT M8X1.25X25

desc: BOULON A 6 PANS

6шт.

24

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

6шт.

25

2114-1058D29

WASHER

desc: RONDELLE

6шт.

30

124-00208D3

CLIP D20/M8

desc: ATTACHE

1шт.

31

124-00208D6

CLIP D38/M8

desc: ATTACHE

2шт.

32

124-00208D7

CLIP D44/M8

desc: ATTACHE

3шт.

33

120-00276

BOLT M8X1.25X120

desc: BOULON A 6 PANS

5шт.

34

2124-1353D18

CLIP D55/M10

desc: ATTACHE

1шт.

39

2124-1353D4

CLIP D18/M10

desc: ATTACHE

1шт.

40

K1006603

BRACKET

SERIAL: 3444

1шт.

41

S0511853

BOLT M10X1.5X20

SERIAL: 3444

2шт.

42

S5102603

WASHER;SPRING

SERIAL: 3444

2шт.

43

S0557153

BOLT M8X1.25X90

SERIAL: 3444

2шт.

44

S5102503

WASHER;SPRING

SERIAL: 3444

2шт.

45

S5010513

WASHER;PLAIN

SERIAL: 3444

2шт.
