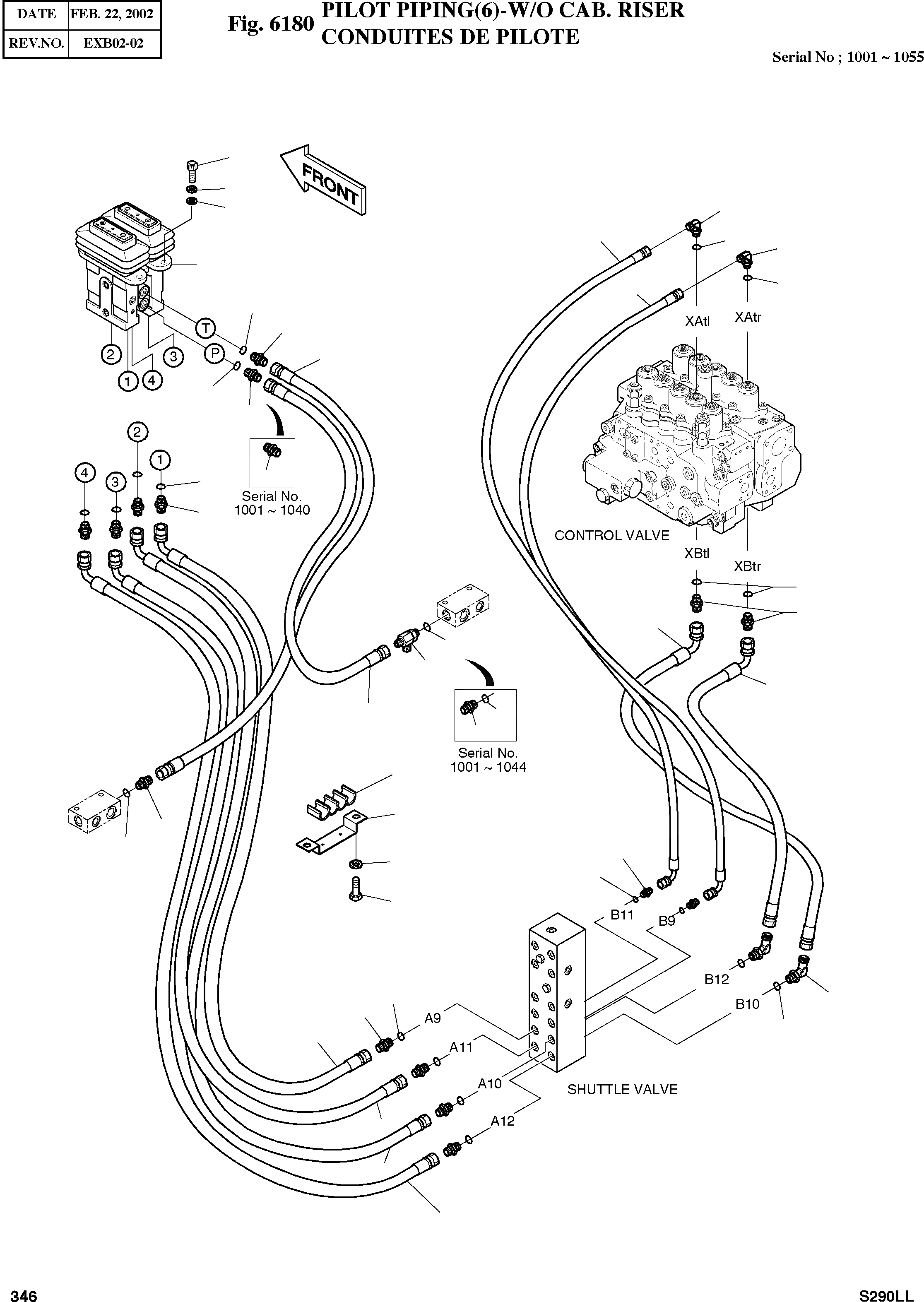

Запчасти Doosan Daewoo PILOT PIPING(6)-W/O CAB. RISER OPTION PARTS

-

2400-2097

PILOT PIPING

SC: D

-2шт.

5

2420-9617A

VALVE;PEDAL

SERIAL: 1001-1044

1шт.

5

420-00030

VALVE;PEDAL

SERIAL: 1045

1шт.

18

2124-1594A

CLAMP;PLASTIC

desc: ATTACHE DE TUYAU

3шт.

19

2124-1595A

CLAMP;STEEL

desc: ATTACHE DE TUYAU

3шт.

20

S0508553

BOLT M8X1.25X14

desc: BOULON A 6 PANS

6шт.

25

S8000141

O-RING P14

desc: JOINT TORIQUE

10шт.

26

S8000111

O-RING P11

desc: JOINT TORIQUE

10шт.

27

2181-1126D14

ADAPTER PFO1/4-PF1/4

SERIAL: 1001-1040

1шт.

27

2181-1126D14

ADAPTER PFO1/4-PF1/4

SERIAL: 1041

2шт.

28

2181-1126D7

ADAPTER PFO3/8-PF3/8

desc: RACCORD

4шт.

30

2181-1126D36

ADAPTER PFO3/8-PF1/4

SERIAL: 1001-1044

4шт.

30

2181-1126D36

ADAPTER PFO3/8-PF1/4

SERIAL: 1045

3шт.

31

2181-1126D89

ADAPTER PFO1/4-PF3/8

desc: RACCORD

4шт.

36

2181-1702D10

ELBOW PFO3/8-PF1/4

desc: COUDE

2шт.

40

2181-1951D7

TEE PFO3/8-PF1/4X2

SERIAL: 1045

1шт.

45

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

6шт.

63

2184-1045D98

HOSE PF1/4-380L

desc: TUYAU FLEXIBLE

1шт.

64

2184-1045D98

HOSE PF1/4-380L

desc: TUYAU FLEXIBLE

1шт.

65

2184-1046D231

HOSE PF3/8-2800L

desc: TUYAU FLEXIBLE

1шт.

66

2184-1046D231

HOSE PF3/8-2800L

desc: TUYAU FLEXIBLE

1шт.

67

2184-1046D231

HOSE PF3/8-2800L

desc: TUYAU FLEXIBLE

1шт.

68

2184-1046D231

HOSE PF3/8-2800L

desc: TUYAU FLEXIBLE

1шт.

80

2184-1046D68

HOSE PF1/4-600L

desc: TUYAU FLEXIBLE

1шт.

81

2184-1046D115

HOSE PF1/4-700L

desc: TUYAU FLEXIBLE

1шт.

82

2184-1046D51

HOSE PF1/4-980L

desc: TUYAU FLEXIBLE

1шт.

83

2184-1046D94

HOSE PF1/4-780L

desc: TUYAU FLEXIBLE

1шт.

115

2471-1133

ADAPTER;FILTER PFO1/4-PF1/4

SERIAL: 1001-1040

1шт.

122

2181-2419D1

ELBOW PFO1/4-PF1/4

desc: COUDE

2шт.

125

S2212061

BOLT;SOCKET M10X1.5X25

desc: BOULON A 6 PANS CREUX

4шт.

126

S5110601

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

4шт.

139

S5010613

WASHER;SPRING

desc: RONDELLE ELASTIQUE

4шт.
