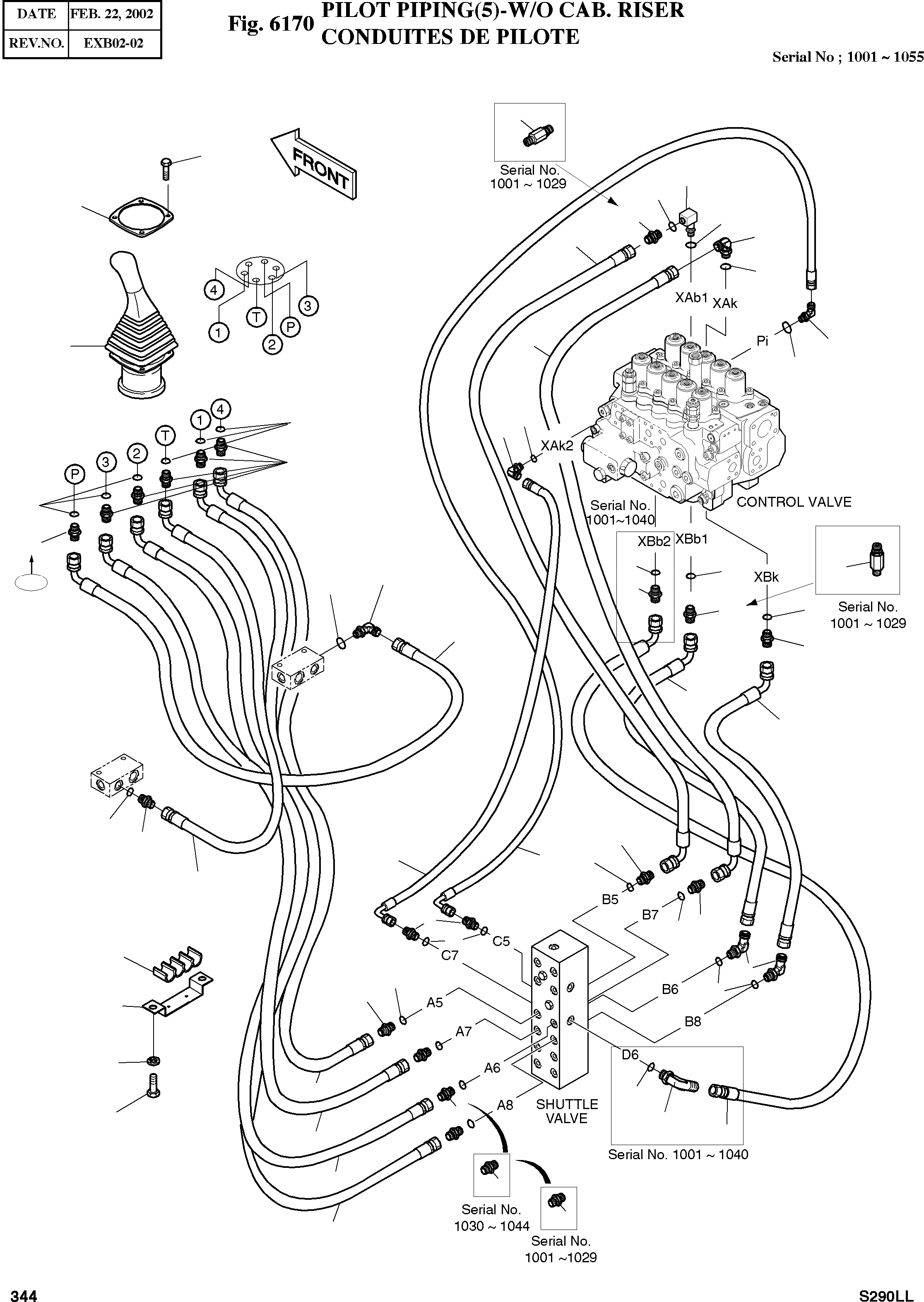

Запчасти Doosan Daewoo PILOT PIPING(5)-W/O CAB. RISER OPTION PARTS

-

2400-2097

PILOT PIPING

SC: D

-2шт.

2

2420-9587

VALVE;REMOCON(RH)

SERIAL: 1001-1030

1шт.

2

420-00015

VALVE;REMOCON(RH)

SERIAL: 1031

1шт.

3

S2205061

BOLT M6X1.0X25

desc: BOULON A 6 PANS

4шт.

18

2124-1594A

CLAMP;PLASTIC

desc: ATTACHE DE TUYAU

2шт.

19

2124-1595A

CLAMP;STEEL

desc: ATTACHE DE TUYAU

2шт.

20

S0508553

BOLT M8X1.25X14

desc: BOULON A 6 PANS

4шт.

25

S8000141

O-RING P14

SERIAL: 1001-1040

17шт.

25

S8000141

O-RING P14

SERIAL: 1041

15шт.

26

S8000111

O-RING P11

desc: JOINT TORIQUE

10шт.

27

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

3шт.

28

2181-1126D7

ADAPTER PFO3/8-PF3/8

SERIAL: 1001-1040

9шт.

28

2181-1126D7

ADAPTER PFO3/8-PF3/8

SERIAL: 1041

8шт.

31

2181-1126D89

ADAPTER PFO1/4-PF3/8

SERIAL: 1001-1044

5шт.

31

2181-1126D89

ADAPTER PFO1/4-PF3/8

SERIAL: 1045

6шт.

32

2181-1702D4

ELBOW

desc: COUDE

1шт.

34

2181-1702D5

ELBOW PFO3/8-PF3/8

desc: COUDE EN S

2шт.

42

2426-9034

VALVE;SHOCKLESS ҐХ1.4

SERIAL: 1001-1029

2шт.

42

2181-2822D14

ADAPTER;ORIFICE

SERIAL: 1030-1044

2шт.

42

181-00144D4

ADAPTER;ORIFICE

SERIAL: 1045

1шт.

44

2621-2752

PLATE

desc: PLAQUE CAOUTCHOUC

1шт.

45

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

4шт.

47

2181-2295D16

ELBOW 2-PFO3/8

desc: COUDE

1шт.

57

2184-1060D151

HOSE PF3/8-1950L

desc: TUYAU FLEXIBLE

1шт.

58

2184-1060D151

HOSE PF3/8-1950L

desc: TUYAU FLEXIBLE

1шт.

59

2184-1060D152

HOSE PF3/8-2700L

desc: TUYAU FLEXIBLE

1шт.

60

2184-1060D152

HOSE PF3/8-2700L

desc: TUYAU FLEXIBLE

1шт.

61

2184-1060D152

HOSE PF3/8-2700L

desc: TUYAU FLEXIBLE

1шт.

62

2184-1060D152

HOSE PF3/8-2700L

desc: TUYAU FLEXIBLE

1шт.

78

2184-1046D234

HOSE PF3/8-780L

desc: TUYAU FLEXIBLE

1шт.

79

2184-1046D233

HOSE PF3/8-730L

desc: TUYAU FLEXIBLE

1шт.

84

2184-1046D183

HOSE PF3/8-830L

desc: TUYAU FLEXIBLE

1шт.

85

2184-1046D125

HOSE PF3/8-750L

desc: TUYAU FLEXIBLE

1шт.

88

2184-1046D99

HOSE PF3/8-700L

SERIAL: 1001-1040

1шт.

89

2184-1046D115

HOSE PF1/4-700L

desc: TUYAU FLEXIBLE

1шт.

90

2184-1046D107

HOSE PF1/4-1250L

desc: TUYAU FLEXIBLE

1шт.

118

2471-1147

ADAPTER;FILTER PFO1/4-PF3/8

SERIAL: 1001-1044

1шт.

120

2181-2419D2

ELBOW PFO3/8-PF3/8

desc: COUDE

3шт.

132

2181-1702D57

ELBOW PFO1/4-PF1/4

desc: COUDE

1шт.

140

181-00144D8

ADAPTER;ORIFICE

SERIAL: 1045

1шт.
