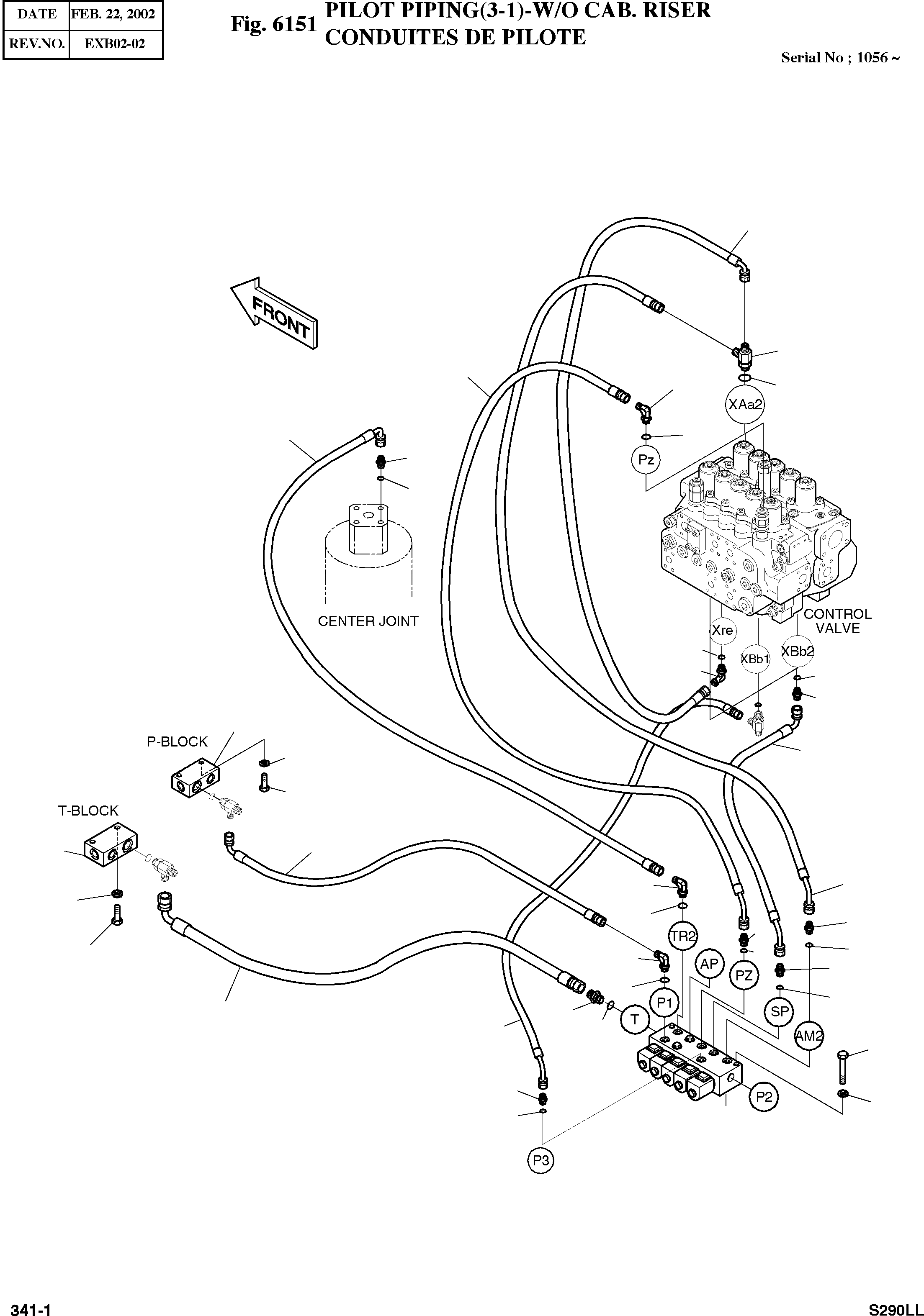

Запчасти Doosan Daewoo PILOT PIPING(3-1)-W/O CAB. RISER OPTION PARTS

-

2400-2097

PILOT PIPING

SC: D

-2шт.

7

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

6шт.

11

426-00082

VAVLE;SOLENOID

desc: VANNE

1шт.

12

S0558953

BOLT M10X1.5X70

desc: BOULON A 6 PANS

2шт.

15

2181-1126D27

ADAPTER PFO3/8-PF3/8

desc: ADAPTEUR

1шт.

16

2423-1470

BLOCK

desc: BLOC

2шт.

17

S0558653

BOLT M10X1.5X55

desc: BOULON A 6 PANS

4шт.

25

S8000141

O-RING P14

desc: JOINT TORIQUE

6шт.

26

S8000111

O-RING P11

desc: JOINT TORIQUE

6шт.

27

2181-1126D7

ADAPTER PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

2шт.

28

2181-1126D7

ADAPTER PFO3/8-PF3/8

desc: RACCORD

4шт.

32

2181-1702D4

ELBOW PFO1/4-PF1/4

desc: COUDE

4шт.

69

2184-1046D117

HOSE PF1/4-1700L

desc: TUYAU FLEXIBLE

1шт.

71

2184-1036D113

HOSE PF3/8-1730L

desc: TUYAU FLEXIBLE

1шт.

73

2184-1060D41

HOSE PF1/4-1250L

desc: TUYAU FLEXIBLE

1шт.

76

2184-1046D79

HOSE PF1/4-2000L

desc: TUYAU FLEXIBLE

1шт.

91

2184-1060D153

HOSE PF3/8-1230L

desc: TUYAU FLEXIBLE

1шт.

133

2181-1951D11

TEE PFO3/8-PF3/8-PF1/4

desc: TE

1шт.

135

2184-1046D83

HOSE PF1/4-830L

desc: TUYAU FLEXIBLE

1шт.

143

2184-1062D83

HOSE PF3/8-1300L

desc: TUYAU FLEXIBLE

1шт.

144

2184-1060D220

HOSE PF3/8-1100L

desc: TUYAU FLEXIBLE

1шт.
