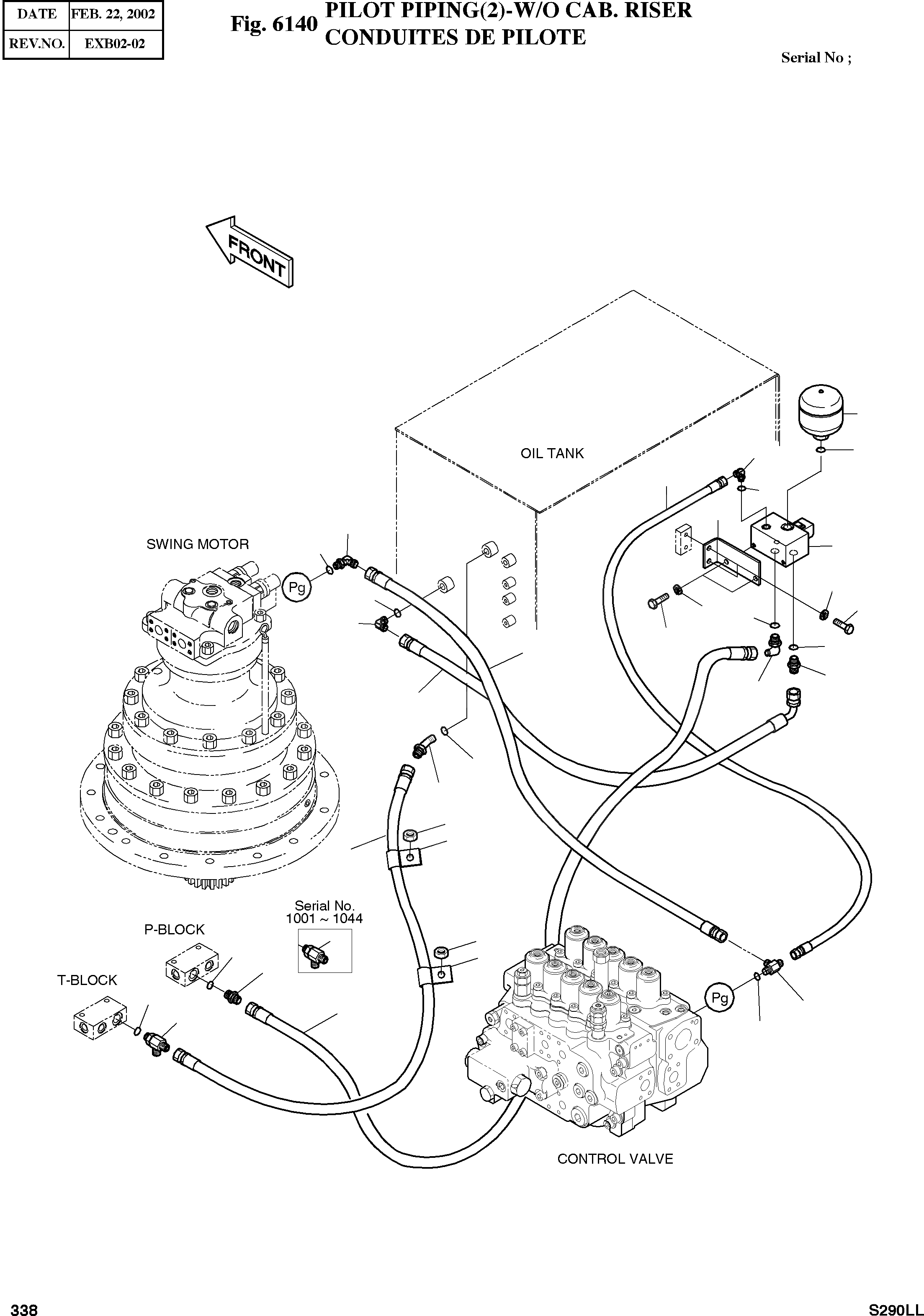

Запчасти Doosan Daewoo PILOT PIPING(2)-W/O CAB. RISER OPTION PARTS

-

2400-2097

PILOT PIPING

SC: D

-2шт.

6

S0512053

BOLT M10X1.5X25

desc: BOULON A 6 PANS

4шт.

7

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

4шт.

10

2426-9039B

VALVE;PILOT

desc: VANNE

1шт.

21

2460-9057

ACCUMULATOR

SERIAL: 1001-1055

1шт.

21

2460-9057A

ACCUMULATOR

SERIAL: 1056

1шт.

24

S8000181

O-RING P18

desc: JOINT TORIQUE

7шт.

26

S8000111

O-RING P11

desc: JOINT TORIQUE

3шт.

29

2181-1126D6

ADAPTER PFO1/2-PF1/2

desc: RACCORD ADAPTATEUR

2шт.

32

2181-1702D4

ELBOW PFO1/4-PF1/4

desc: COUDE

2шт.

35

2181-1702D2

ELBOW PFO1/2-PF1/2

desc: COUDE

2шт.

38

2181-1951D1

TEE PFO1/4-2XPF1/4

desc: TE

1шт.

39

2181-1951D19

TEE PFO1/2-PF1/2-PF1/4

SERIAL: 1001-1044

1шт.

39

2471-1135

ADAPTER;FILTER

SERIAL: 1045

1шт.

49

2181-1951D13

TEE PFO1/2-PF1/2-PF3/8

desc: TE

1шт.

70

2184-1026D298

HOSE PF1/2-4000L

desc: TUYAU FLEXIBLE

1шт.

72

2184-1026D383

HOSE PF1/2-3600L

desc: TUYAU FLEXIBLE

1шт.

105

2184-1045D188

HOSE PF1/4-1050L

desc: TUYAU FLEXIBLE

1шт.

106

2184-1045D190

HOSE PF1/4-1200L

desc: TUYAU FLEXIBLE

1шт.

109

2184-1036D154

HOSE PF1/2-1100L

desc: TUYAU FLEXIBLE

1шт.

116

2891-1244A

PLATE

desc: PLAQUE

1шт.

136

2181-2419D3

ELBOW PF1/2-PF1/2

desc: COUDE

1шт.

137

2124-1027D10

CLIP;PIPE

desc: ATTACHE DE TUBE

2шт.

138

S4012533

NUT

desc: ECROU

2шт.
