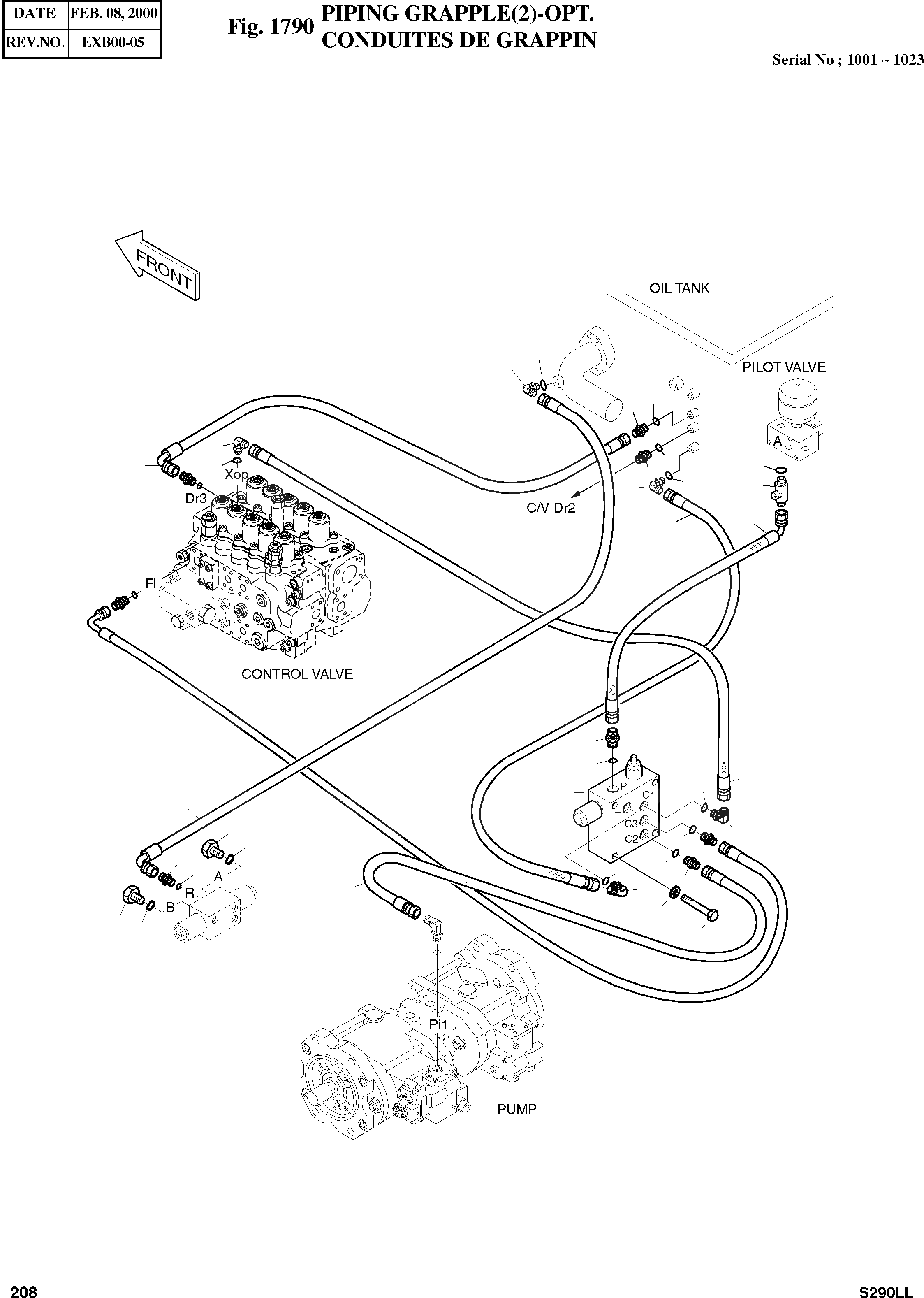

Запчасти Doosan Daewoo PIPING GRAPPLE(2)-OPT BODY PARTS

-

2400-2003A

PIPING;GRAPPLE(1) OPT

SERIAL: 1001-1023

-2шт.

1

2420-9227A

VALVE;PACKAGE

desc: SOUPAPE A SOLENOIDE

1шт.

2

S0558953

BOLT M10X1.5X70

desc: BOULON A 6 PANS

3шт.

3

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

3шт.

4

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

4шт.

5

S8000111

O-RING P11

desc: JOINT TORIQUE

7шт.

6

2181-1702D4

ELBOW PFO1/4-PF1/4

desc: COUDE

3шт.

7

2181-1951D8

TEE PFO1/2-PF1/2-PF1/4

desc: TE

1шт.

8

S8000181

O-RING P18

desc: JOINT TORIQUE

2шт.

9

S8000141

O-RING P14

desc: JOINT TORIQUE

1шт.

10

2181-1702D2

ELBOW PFO1/2-PF1/2

desc: COUDE

1шт.

11

2181-1702D10

ELBOW PFO3/8-PF1/4

desc: COUDE

1шт.

21

2181-1126D100

ADAPTER PFO1-PF1/2

desc: RACCORD ADAPTATEUR

1шт.

22

S8000291

O-RING P29

desc: JOINT TORIQUE

1шт.

23

S8000241

O-RING P24

desc: JOINT TORIQUE

2шт.

25

2181-1950D5

PLUG PFO3/4

desc: BOUCHON

2шт.

32

2184-1045D117

HOSE PF1/4-1220L

desc: TUYAU FLEXIBLE

1шт.

33

2184-1045D157

HOSE PF1/4-1500L

desc: TUYAU FLEXIBLE

1шт.

34

2184-1046D195

HOSE PF1/4-510L

desc: TUYAU FLEXIBLE

1шт.

35

2184-1045D90

HOSE PF1/4-800L

desc: TUYAU FLEXIBLE

1шт.

44

2184-1046D49

HOSE PF1/4-1020L

desc: TUYAU FLEXIBLE

1шт.

45

2184-1036D187

HOSE PF1/2-1800L

desc: TUYAU FLEXIBLE

1шт.
