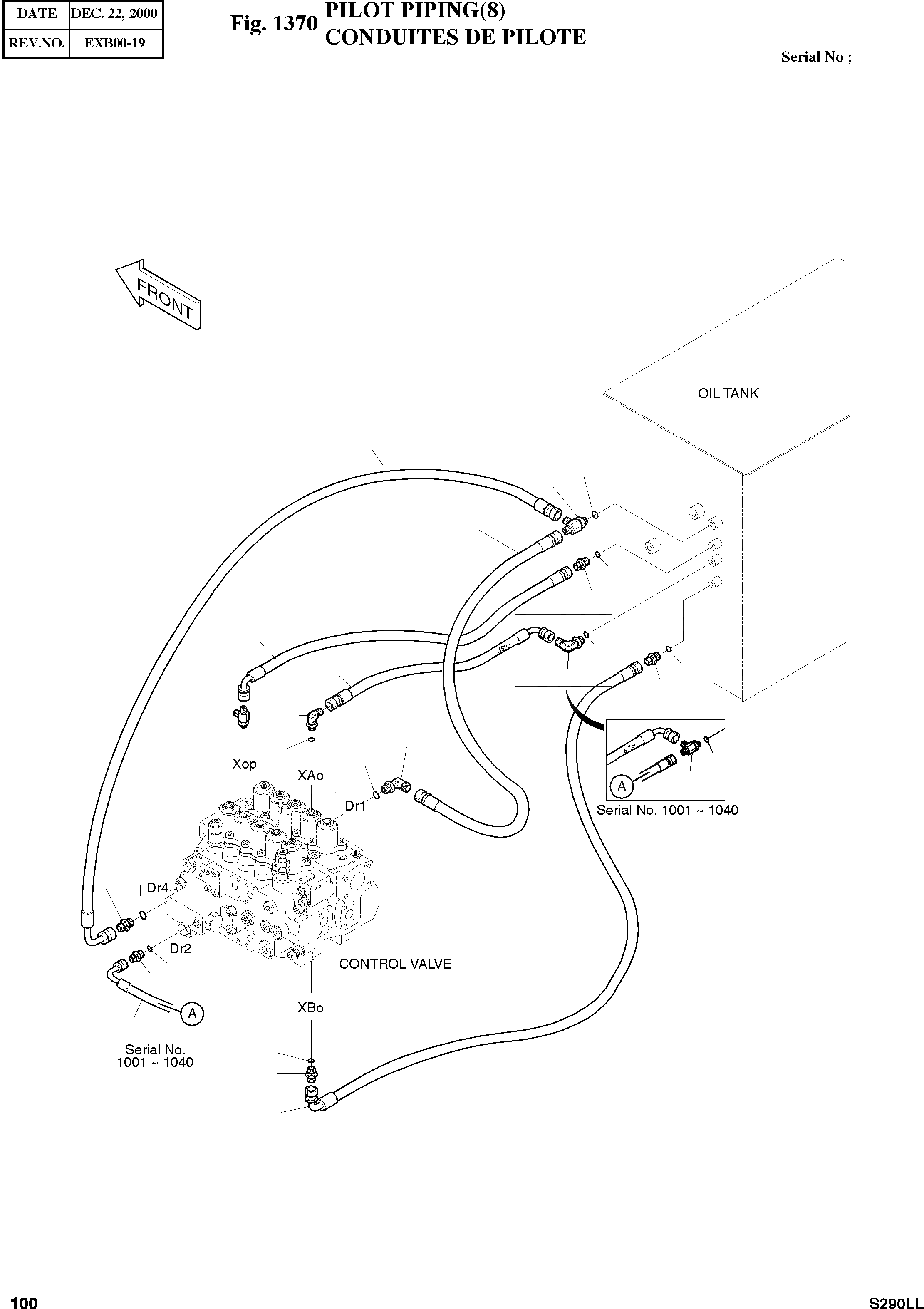

Запчасти Doosan Daewoo PILOT PIPING(8) BODY PARTS

-

2400-1999A

PILOT PIPING

SC: D

-2шт.

25

S8000141

O-RING P14

desc: JOINT TORIQUE

3шт.

26

S8000111

O-RING P11

SERIAL: 1001-1040

6шт.

26

S8000111

O-RING P11

SERIAL: 1041

5шт.

27

2181-1126D14

ADAPTER PFO1/4-PF1/4

SERIAL: 1001-1040

4шт.

27

2181-1126D14

ADAPTER PFO1/4-PF1/4

SERIAL: 1041

3шт.

30

2181-1126D36

ADAPTER PFO3/8-PF1/4

desc: RACCORD

1шт.

32

2181-1702D4

ELBOW PFO1/4-PF1/4

SERIAL: 1041

1шт.

33

2181-1702D3

ELBOW PFO1/4-PF3/8

desc: RACCORD

1шт.

36

2181-1702D10

ELBOW PFO3/8-PF1/4

desc: COUDE

1шт.

38

2181-1951D1

TEE PFO1/4-PF1/4X2

SERIAL: 1001-1040

1шт.

38

2181-1951D1

TEE PFO1/4-PF1/4X2

SERIAL: 1041

1шт.

95

2184-1046D143

HOSE PF1/4-1150L

SERIAL: 1001-1040

1шт.

97

2184-1046D94

HOSE PF1/4-780L

desc: TUYAU FLEXIBLE

1шт.

101

2184-1046D132

HOSE PF1/4-590L

desc: TUYAU FLEXIBLE

1шт.

102

2184-1046D206

HOSE PF1/4-550L

desc: TUYAU FLEXIBLE

1шт.

104

2184-1026D206

HOSE PF3/8-480L

desc: TUYAU FLEXIBLE

1шт.

128

2184-1046D143

HOSE PF1/4-1150L

desc: TUYAU FLEXIBLE

1шт.

129

2181-1951D6

TEE

desc: TE

1шт.
