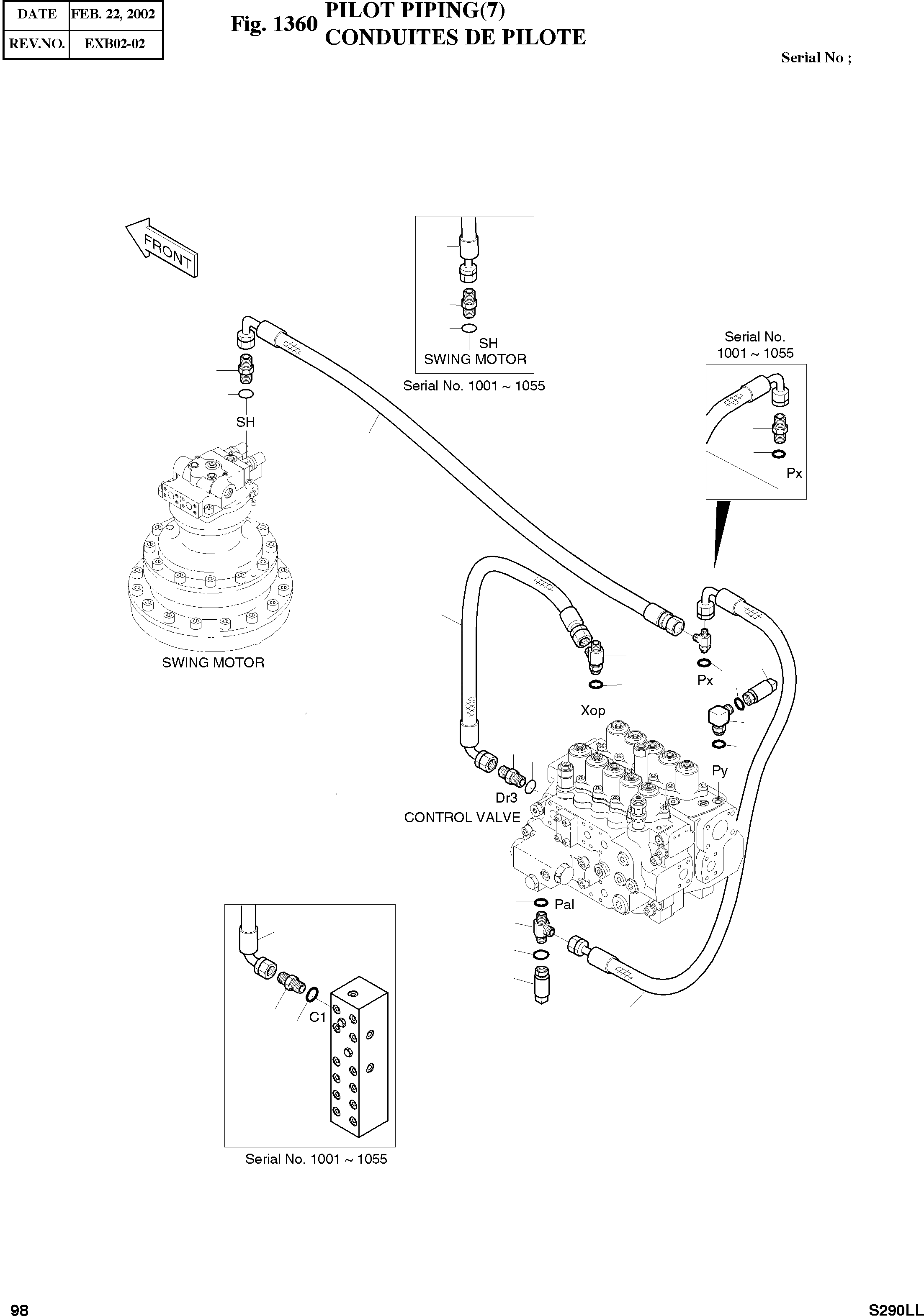

Запчасти Doosan Daewoo PILOT PIPING(7) BODY PARTS

-

2400-1999A

PILOT PIPING

SC: D

-2шт.

25

S8000141

O-RING P14

desc: JOINT TORIQUE

1шт.

26

S8000111

O-RING P11

SERIAL: 1001-1055

8шт.

26

S8000111

O-RING P11

SERIAL: 1056

7шт.

27

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

2шт.

37

2181-2295D4

ELBOW 2-PFO1/4

desc: COUDE

1шт.

40

2181-1951D7

TEE PFO3/8-PF1/4X2

desc: TE

1шт.

41

2181-2760

ADAPTER 2-PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

1шт.

48

2549-9112

SWITCH;PRESSURE

desc: INTERRUPTEUR

2шт.

50

2181-1126D75

ADAPTER PFO1/4-PF1/4

SERIAL: 1001-1055

1шт.

96

2184-1046D68

HOSE PF1/4-600L

desc: TUYAU FLEXIBLE

1шт.

99

2184-1046D147

HOSE PF1/4-1000L

desc: TUYAU FLEXIBLE

1шт.

100

2184-1046D76

HOSE PF1/4-1200L

desc: TUYAU FLEXIBLE

1шт.

121

2181-1951D46

TEE PFO1/4-2PF1/4

SERIAL: 1056

1шт.

130

2181-1126D34

ADAPTER PFO1/4-PF1/4

SERIAL: 1001-1055

1шт.
