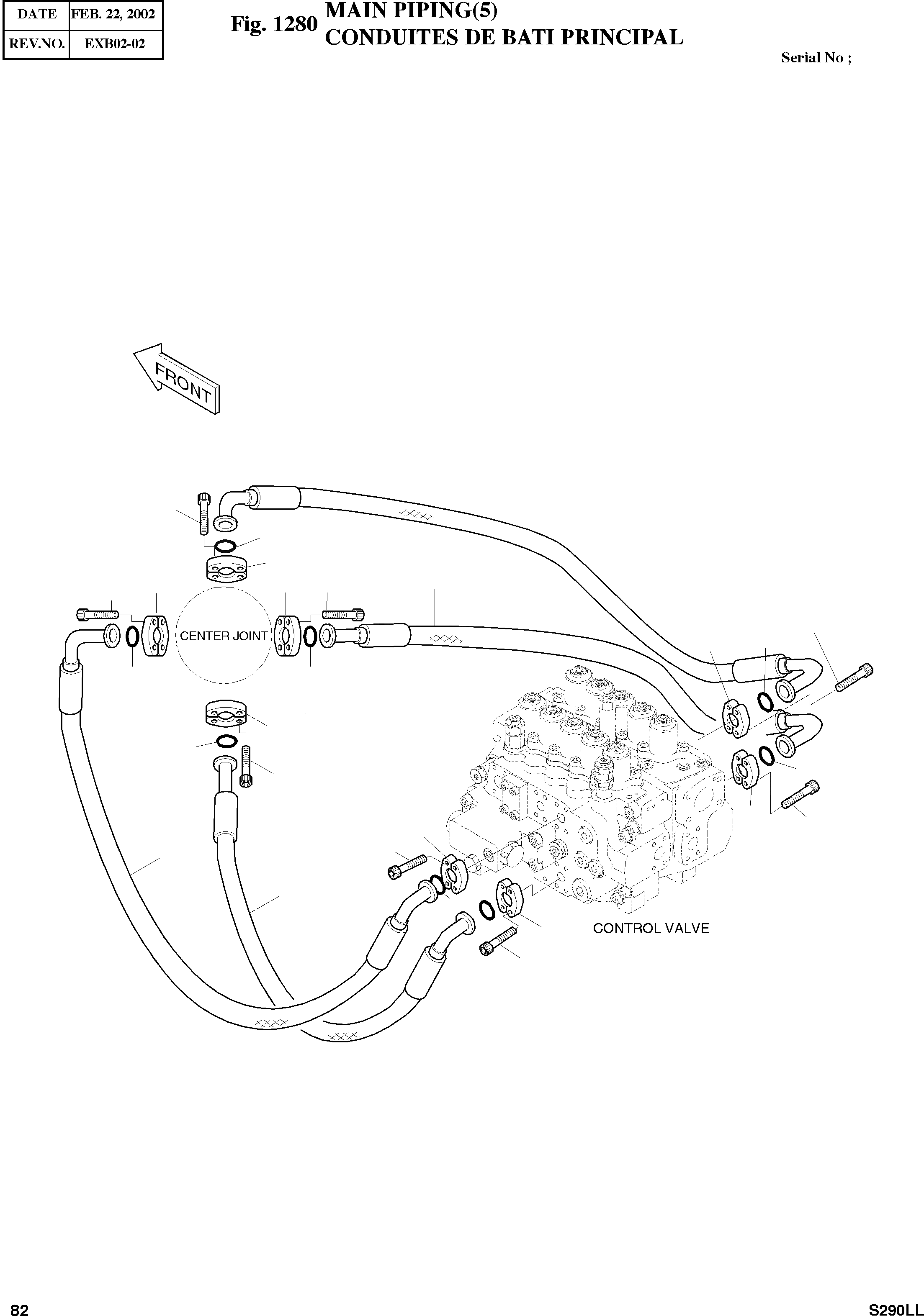

Запчасти Doosan Daewoo MAIN PIPING(5) BODY PARTS

-

2400-1774A

MAIN PIPING

SERIAL: 1001-1035

-2шт.

-

400-00243

MAIN PIPING

SERIAL: 1036

-2шт.

15

S2212061

BOLT;SOCKET M10X1.5X25

SERIAL: 1001-1059

16шт.

15

S2212066

BOLT;SOCKET M10X1.5X25

SERIAL: 1060

16шт.

17

2184-1124D19

HOSE PF3/4-1850L

desc: TUYAU FLEXIBLE

2шт.

18

2184-1100D38

HOSE PF3/4-1650L

desc: TUYAU FLEXIBLE

2шт.

26

S2212261

BOLT;SOCKET M10X1.5X30

SERIAL: 1001-1059

16шт.

26

S2212266

BOLT;SOCKET M10X1.5X30

SERIAL: 1060

16шт.

30

2180-1026D2

O-RING

desc: JOINT TORIQUE

8шт.

31

2181-9079

FLANGE;SPLIT

desc: FLASQUE EN DEUX PARTIES

16шт.
