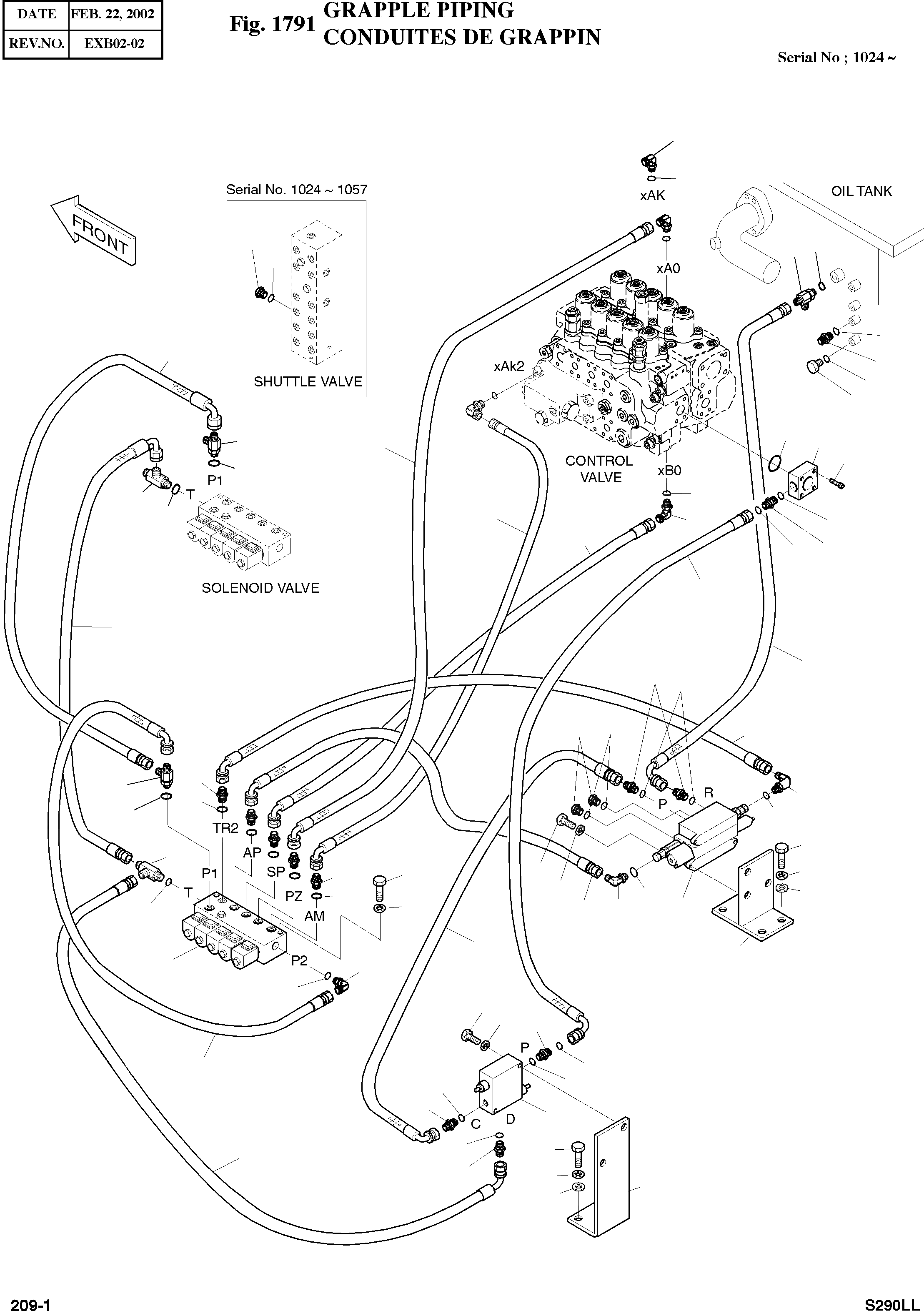

Запчасти Doosan Daewoo GRAPPLE PIPING BODY PARTS

-

2400-2093

GRAPPLE PIPING

SERIAL: 1024

-2шт.

1

2237-1124

BLOCK

desc: BLOC

1шт.

2

S2213061

BOLT;SOCKET M10X1.5X70

SERIAL: 1024-1059

4шт.

2

S2213066

BOLT;SOCKET M10X1.5X70

SERIAL: 1060

4шт.

3

2180-1026D19

O-RING

desc: JOINT TORIQUE

1шт.

4

2181-1126D6

ADATPER

desc: RACCORD ADAPTATEUR

3шт.

5

426-00028

VALVE;PACKAGE

desc: SUPPORT

1шт.

6

2181-1951D5

TEE PFO1/2X2-PF1/2

desc: TE

1шт.

7

2426-6050A

VALVE;CONTROL-ONE SPOOL

desc: VANNE

1шт.

8

2197-2547

BRACKET

desc: SUPPORT

1шт.

9

S0512253

BOLT M10X1.5X30

desc: BOULON A 6 PANS

6шт.

10

S5102603

WASHER;SPRING M10

desc: RONDELLE ELASTIQUE

8шт.

11

S5010613

WASHER;PLAIN M10

desc: RONDELLE

6шт.

12

2197-2540A

BRACKET

desc: SUPPORT

1шт.

13

S8000181

O-RING

desc: JOINT TORIQUE

6шт.

14

S8000141

O-RING

SERIAL: 1024-1057

7шт.

14

S8000141

O-RING

SERIAL: 1058

8шт.

15

S8000111

O-RING

SERIAL: 1024-1057

12шт.

15

S8000111

O-RING

SERIAL: 1058

11шт.

16

S0509053

BOLT M8X1.25X25

desc: BOULON A 6 PANS

3шт.

17

S5102503

WASHER;SPRING M8

desc: RONDELLE ELASTIQUE

5шт.

18

S0556453

BOLT M8X1.25X55

desc: BOULON A 6 PANS

2шт.

19

2181-1126D14

ADAPTER PFO1/4-PF1/4

desc: RACCORD ADAPTATEUR

6шт.

20

2181-1702D4

ELBOW PFO1/4-PF1/4

desc: COUDE

2шт.

21

2181-1950D2

PLUG

desc: BOUCHON

2шт.

22

2181-1951D1

TEE PFO1/4-2PF1/4

desc: TE

2шт.

23

2181-1951D16

TEE PFO3/8-2PF3/8

desc: TE

1шт.

24

2181-1702D10

ELBOW PFO3/8-PF1/4

desc: COUDE

2шт.

25

2181-1126D36

ADAPTER PFO3/8-PF1/4

desc: RACCORD ADAPTATEUR

1шт.

26

2181-1951D20

TEE PFO3/8-PF3/8-PF1/4

desc: TE

1шт.

27

2181-1950D1

PLUG

SERIAL: 1024-1057

2шт.

27

2181-1950D1

PLUG

SERIAL: 1058

1шт.

28

S8030081

O-RING

desc: JOINT TORIQUE

2шт.

29

2181-4133D3

ADAPTER PFO1/2XUNF13/16-16

desc: RACCORD ADAPTATEUR

2шт.

30

2184-1212D29

HOSE PF3/16-1100L

desc: TUYAU FLEXIBLE

1шт.

31

2184-1036D44

HOSE PF1/2-950L

desc: TUYAU FLEXIBLE

1шт.

32

2184-1036D187

HOSE PF1/2-1800L

desc: TUYAU FLEXIBLE

1шт.

33

2184-1046D42

HOSE PF1/4-720L

desc: TUYAU FLEXIBLE

1шт.

34

2184-1046D63

HOSE PF1/4-500L

desc: TUYAU FLEXIBLE

1шт.

35

2184-1046D169

HOSE PF1/4-1600L

desc: TUYAU FLEXIBLE

1шт.

36

2184-1046D172

HOSE PF1/4-1650L

desc: TUYAU FLEXIBLE

1шт.

37

2184-1046D155

HOSE PF1/4-1500L

desc: TUYAU FLEXIBLE

1шт.

38

2184-1046D198

HOSE PF1/4-400L

desc: TUYAU FLEXIBLE

1шт.

39

2184-1046D97

HOSE PF3/8-460L

desc: TUYAU FLEXIBLE

1шт.

40

2184-1046D126

HOSE PF1/4-450L

desc: TUYAU FLEXIBLE

1шт.

41

2184-1046D68

HOSE PF1/4-600L

desc: TUYAU FLEXIBLE

1шт.

42

2426-9040A

VALVE;SOLENOID

desc: VANNE

1шт.

43

S0558953

BOLT M10X1.5X70

desc: BOULON A 6 PANS

2шт.

44

2184-1702D5

ELBOW PFO3/8-PF3/8

SERIAL: 1058

1шт.
