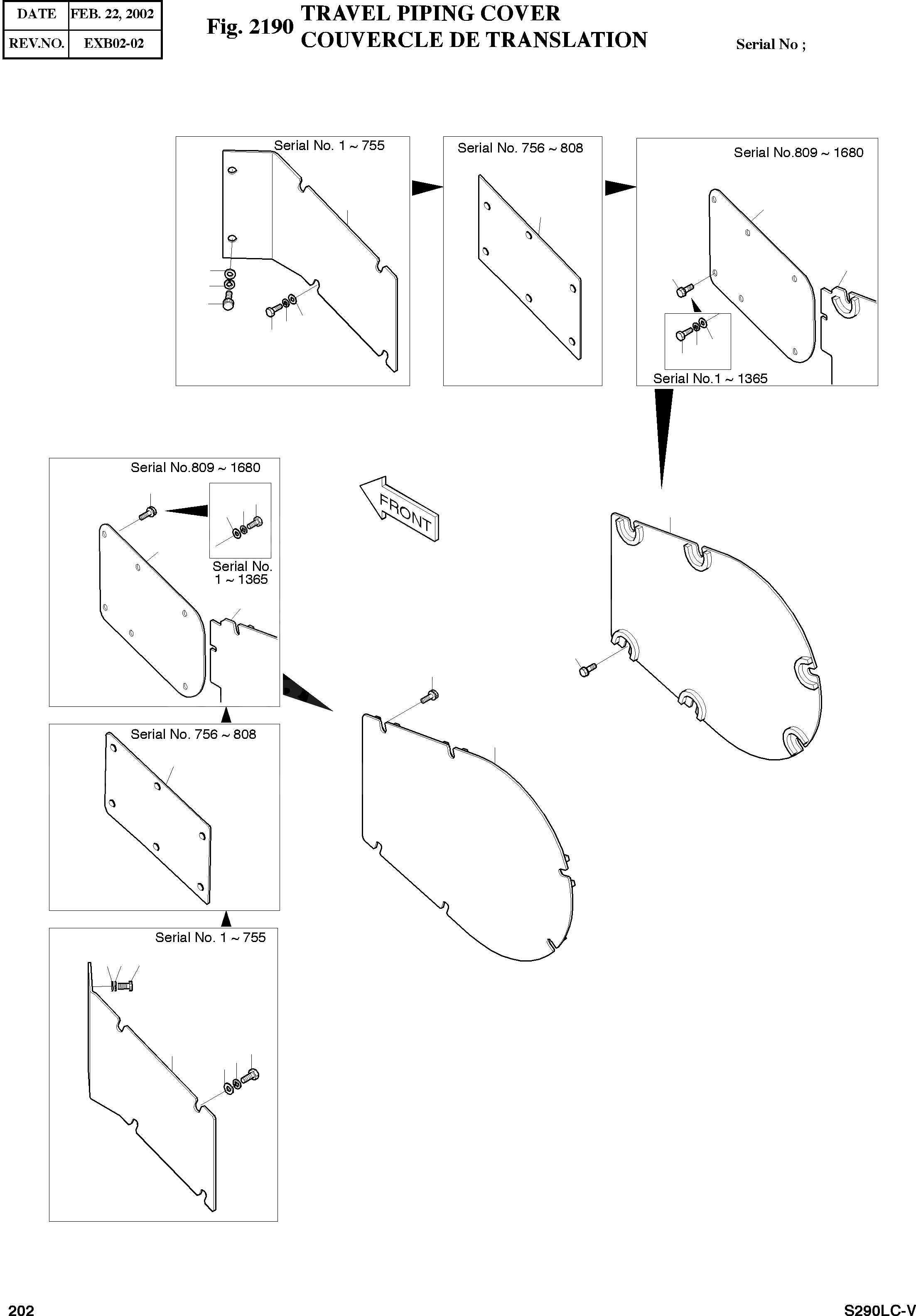

Запчасти Doosan Daewoo TRAVEL PIPING COVER TRACK PARTS

-

2604-1303A

TRACK ASS'Y

SERIAL: 1-1680

-2шт.

-

2604-1303B

TRACK ASS'Y

SERIAL: 1681

-2шт.

16

2621-3883

COVER

SERIAL: 1-1680

1шт.

16

621-01529A

COVER

SERIAL: 1681

1шт.

17

2621-3884

COVER

SERIAL: 1-1680

1шт.

17

621-01530A

COVER

SERIAL: 1681

1шт.

18

2621-3644A

COVER

SERIAL: 1-755

1шт.

18

2627-1904

COVER

SERIAL: 756-808

1шт.

18

621-00032

COVER

SERIAL: 809-1680

1шт.

19

2621-3645A

COVER

SERIAL: 1-755

1шт.

19

2627-1904

COVER

SERIAL: 756-808

1шт.

19

621-00032

COVER

SERIAL: 809-1680

1шт.

27

2114-1058D10

WASHER

SERIAL: 1-1365

24шт.

28

S0511853

BOLT M10X1.5X20

SERIAL: 1-755

4шт.

28

S0511853

BOLT M10X1.5X20

SERIAL: 756-1365

12шт.

29

S0512253

BOLT M10X1.5X30

SERIAL: 1-755

20шт.

29

S0512253

BOLT M10X1.5X30

SERIAL: 756-1365

12шт.

29

2120-2196D2

BOLT;SET M10X1.5X30

SERIAL: 1366-1680

24шт.

29

2120-2196D10

BOLT;SET M10X1.5X25

SERIAL: 1681

12шт.

39

S5110601

WASHER;SPRING

SERIAL: 1-469

24шт.

39

S5102603

WASHER;SPRING

SERIAL: 470-1365

24шт.
