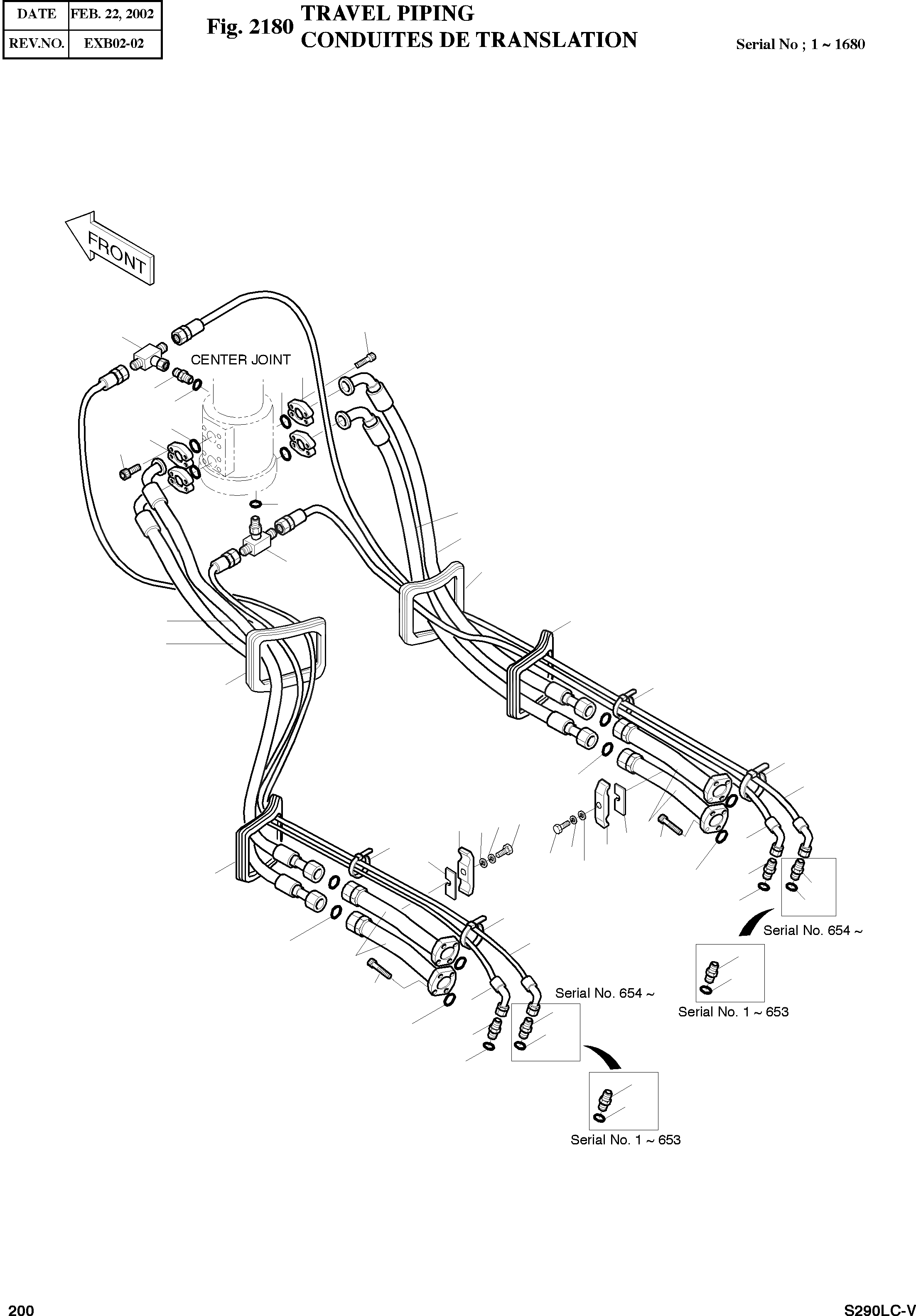

Запчасти Doosan Daewoo TRAVEL PIPING TRACK PARTS

-

2400-1793A

PROPELLING PIPING

SERIAL: 1-1680

-2шт.

1

2140-1273

PIPE

desc: TUYAU

4шт.

3

S2215361

BOLT;SOCKET M12X1.75X35

desc: BOULON A 6 PANS CREUX

32шт.

4

2180-1026D19

O-RING

desc: JOINT TORIQUE

8шт.

5

2181-9081

FLANGE;SPLIT

desc: BRIDE

8шт.

6

2184-1222D12

HOSE PF1-2000L

desc: TUYAU FLEXIBLE

2шт.

7

2184-1036D257

HOSE PF1/2-2700L

desc: TUYAU FLEXIBLE

2шт.

8

2184-1060D56

HOSE PF1/4-3000L

desc: TUYAU FLEXIBLE

2шт.

9

2124-1084D1

CLIP;BAND

desc: ATTACHE

20шт.

10

2181-1126D6

ADAPTER PF1/2-PFO1/2

SERIAL: 1-653

2шт.

10

2181-1126D83

ADAPTER PFO1/2-PF1/2

SERIAL: 654

2шт.

11

S8000181

O-RING P18

REP_PNO: 8202-014

3шт.

12

2181-1126D14

ADAPTER PFO1/4-PF1/4

SERIAL: 1-653

3шт.

12

2181-1126D14

ADAPTER PFO1/4-PF1/4

SERIAL: 654

1шт.

13

S8000111

O-RING P11

REP_PNO: 8202-009

3шт.

14

2181-2281D10

TEE 3-PF1/2

desc: TE

1шт.

15

2181-4125

TEE 3-PF1/4

desc: TE

1шт.

16

2124-1602

CLAMP;PIPE

desc: ATTACHE DE TUBE

2шт.

17

S0561053

BOLT M12X1.75X65

desc: BOULON A 6 PANS

2шт.

18

S5102703

WASHER;SPRING

desc: RONDELLE ELASTIQUE

2шт.

19

2114-1685

SHIM

desc: RONDELLE D'EPAISSEUR

2шт.

20

S5010713

WASHER;PLAIN

desc: RONDELLE

2шт.

21

S8030161

O-RING

desc: JOINT TORIQUE

4шт.

22

2184-1222D15

HOSE PF1-1850L

desc: TUYAU FLEXIBLE

2шт.

23

2160-1172

BUSHING;RUBBER

desc: MANCHON CAOUTCHOUC

2шт.

24

2160-1322D1

BUSHING;RUBBER

desc: GARNISSAGE CAOUTCHOUC

2шт.

25

2181-1126D34

ADAPTER PFO1/4-PF1/4

SERIAL: 654

2шт.
